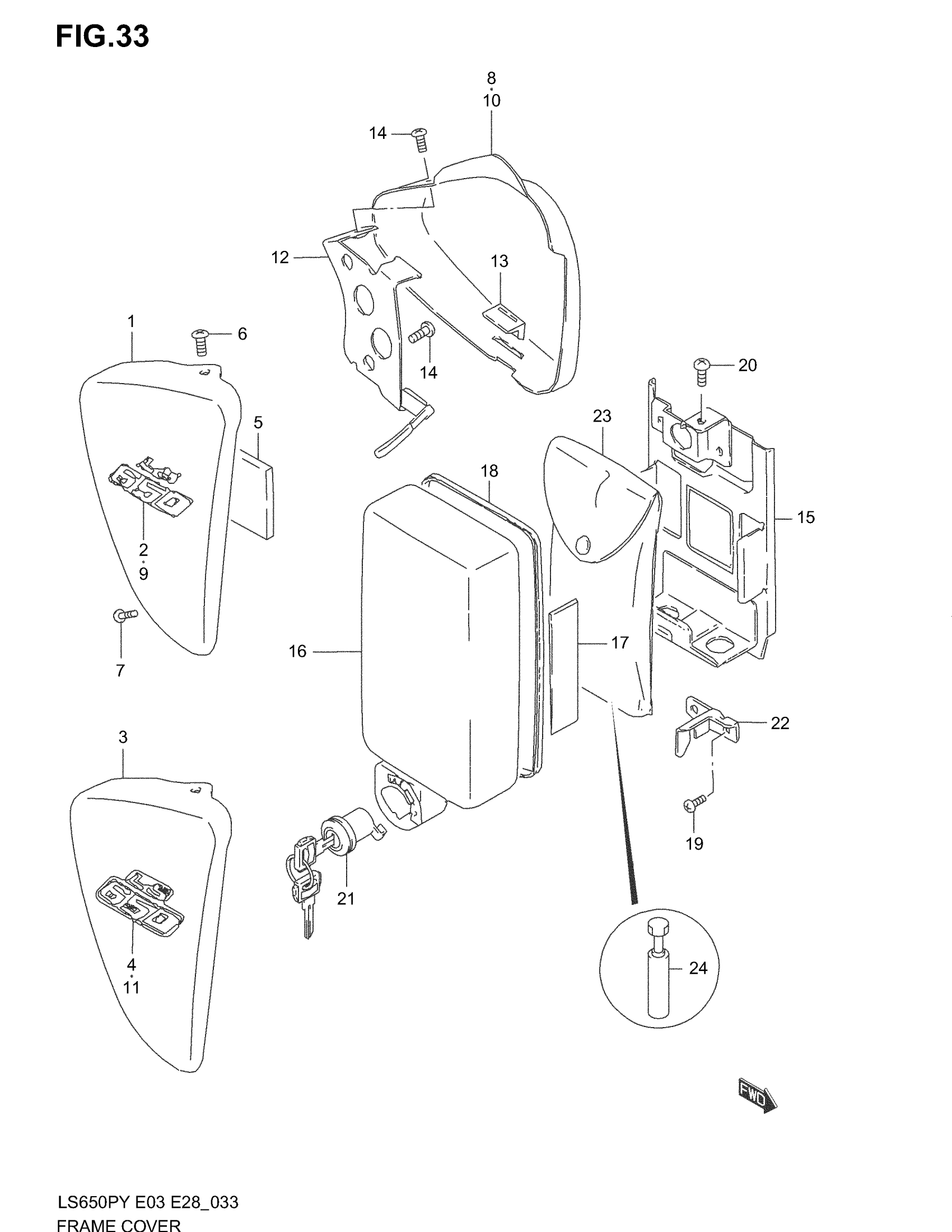

Suzuki LS650P (2004) FRAME COVER (MODEL T/V) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL T

47100-24C00-163

Unavailable

1

COVER, FRAME RH (MAROON) | MODEL T; Includes Item(s) 2 - 2

47100-24C00-22U

Unavailable

2

EMBLEM | MODEL T FOR 163

68131-24C00-E9E

Unavailable

2

EMBLEM | MODEL T FOR 22U

68131-24C00-E9D

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL V

47100-24C10-33J

Unavailable

3

COVER, FRAME RH (ORANGE) | MODEL V; Includes Item(s) 4 - 4

47100-24C10-Y0W

Unavailable

4

EMBLEM | MODEL V FOR 33J

68131-24C10-G5T

Unavailable

4

EMBLEM | MODEL V FOR Y0W

68131-24C10-G5V

Unavailable

5

CUSHION

13719-84150

$3.37

6

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

7

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

8

COVER, FRAME LH (YELLOW) | MODEL T

47200-24C00-163

Unavailable

8

COVER, FRAME LH (MAROON) | MODEL T; Includes Item(s) 9 - 9

47200-24C00-22U

Unavailable

9

EMBLEM | MODEL T FOR 163

68131-24C00-E9E

Unavailable

9

EMBLEM | MODEL T FOR 22U

68131-24C00-E9D

Unavailable

10

COVER, FRAME LH (BLACK) | MODEL V

47200-24C10-33J

Unavailable

10

COVER, FRAME LH (ORANGE) | MODEL V; Includes Item(s) 11 - 11

47200-24C10-Y0W

Unavailable

11

EMBLEM | MODEL V FOR 33J

68131-24C10-G5T

Unavailable

11

EMBLEM | MODEL V FOR Y0W

68131-24C10-G5V

Unavailable

12

BRACKET, FRAME COVER LH

47180-24B03

$24.20

13

CUSHION, LH

47117-45000

$2.14

14

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

15

HOLDER, TOOL

47430-24B01

$20.65

16

COVER, TOOL HOLDER | Includes Item(s) 17 - 18 This part replaces 47440-24B10.

47440-24B20

$54.71

17

PROTECTOR

33652-07D00

$5.64

18

MOLDING

47445-24B00

$3.59

19

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

20

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

21

LOCK SET, TOOL HOLDER This part replaces 95700-24870.

95700-24871

$52.02

22

PLATE, LOCK

47434-24B00

$4.34

23

TOOL ASSY This part replaces 09800-21012.

09800-21069

$40.17

24

GAUGE ASSY, TENSION

96220-24B00

$31.76
