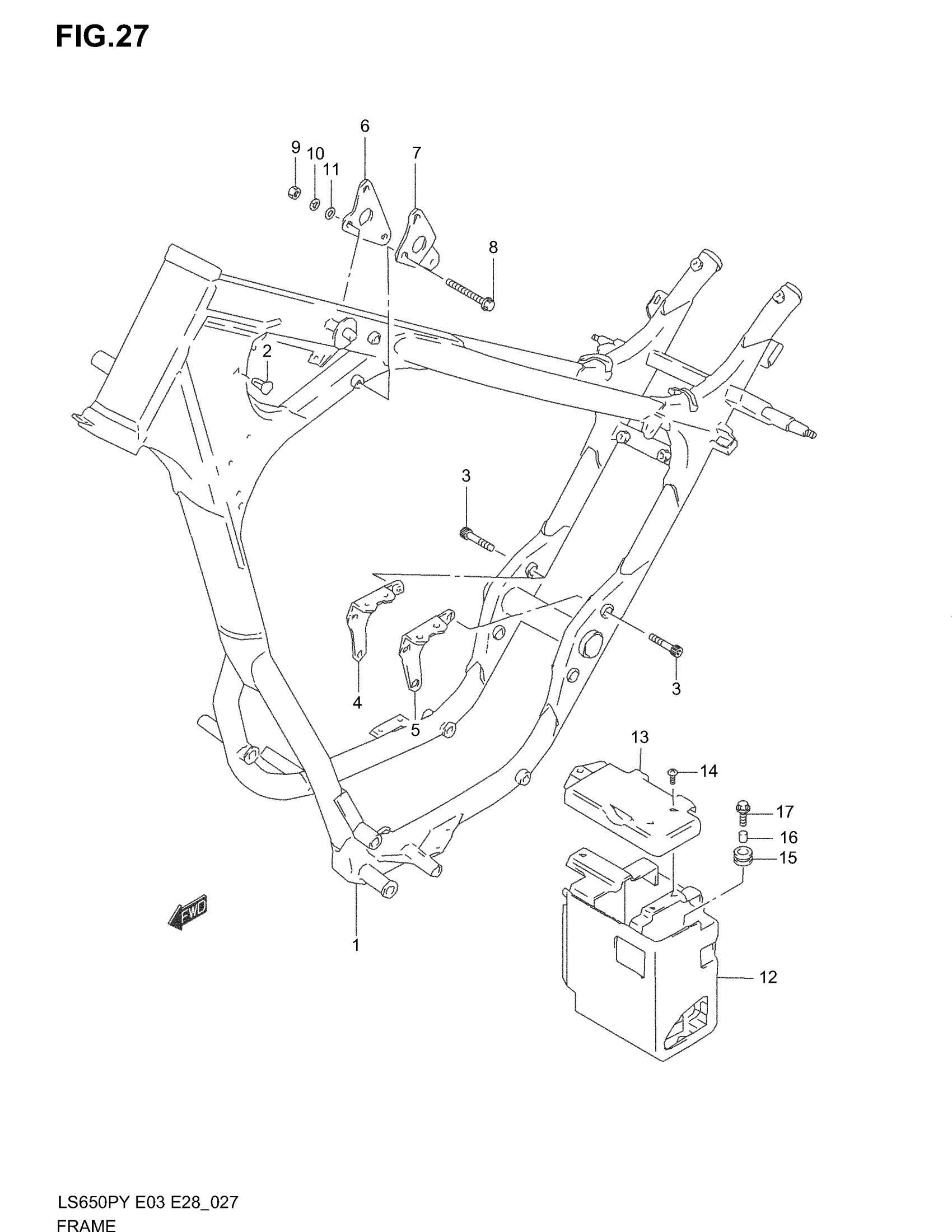

Suzuki LS650P (2004) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK)

41100-24B01-019

Unavailable

2

CAP, FRAME HEAD

09409-06306

Unavailable

3

BOLT

09106-08074

$3.85

4

PLATE, NO.4 RH (BLACK)

41970-24B00-019

Unavailable

5

PLATE, NO.4 LH (BLACK)

41980-24B00-019

Unavailable

6

PLATE, NO.5 RH (BLACK)

41991-24B00-019

Unavailable

7

PLATE, NO.3 LH (BLACK)

41992-24B00-019

Unavailable

8

BOLT

09103-08279

Unavailable

9

NUT This part replaces 08319-21088.

08319-2108A

$2.12

10

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

11

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

12

HOLDER, BATTERY | MODEL T This part replaces 41540-24B00.

41540-24B01

$101.35

12

HOLDER, BATTERY | MODEL V/W/X/Y/K1/K2/K3/K4

41540-24B01

$101.35

13

COVER, BATTERY

41576-24B01

$36.17

14

SCREW, COVER

02142-04107

$1.49

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

16

SPACER | MODEL T This part replaces 09180-06111.

09180-06260

$3.37

16

SPACER | MODEL V/W/X/Y/K1/K2/K3/K4

09180-06260

$3.37

17

BOLT | MODEL T This part replaces 09116-06083.

09116-06167

$2.19

17

BOLT (6X20) | MODEL V/W/X/Y/K1/K2/K3/K4 This part replaces 09116-06011.

09116-06115

$1.97
