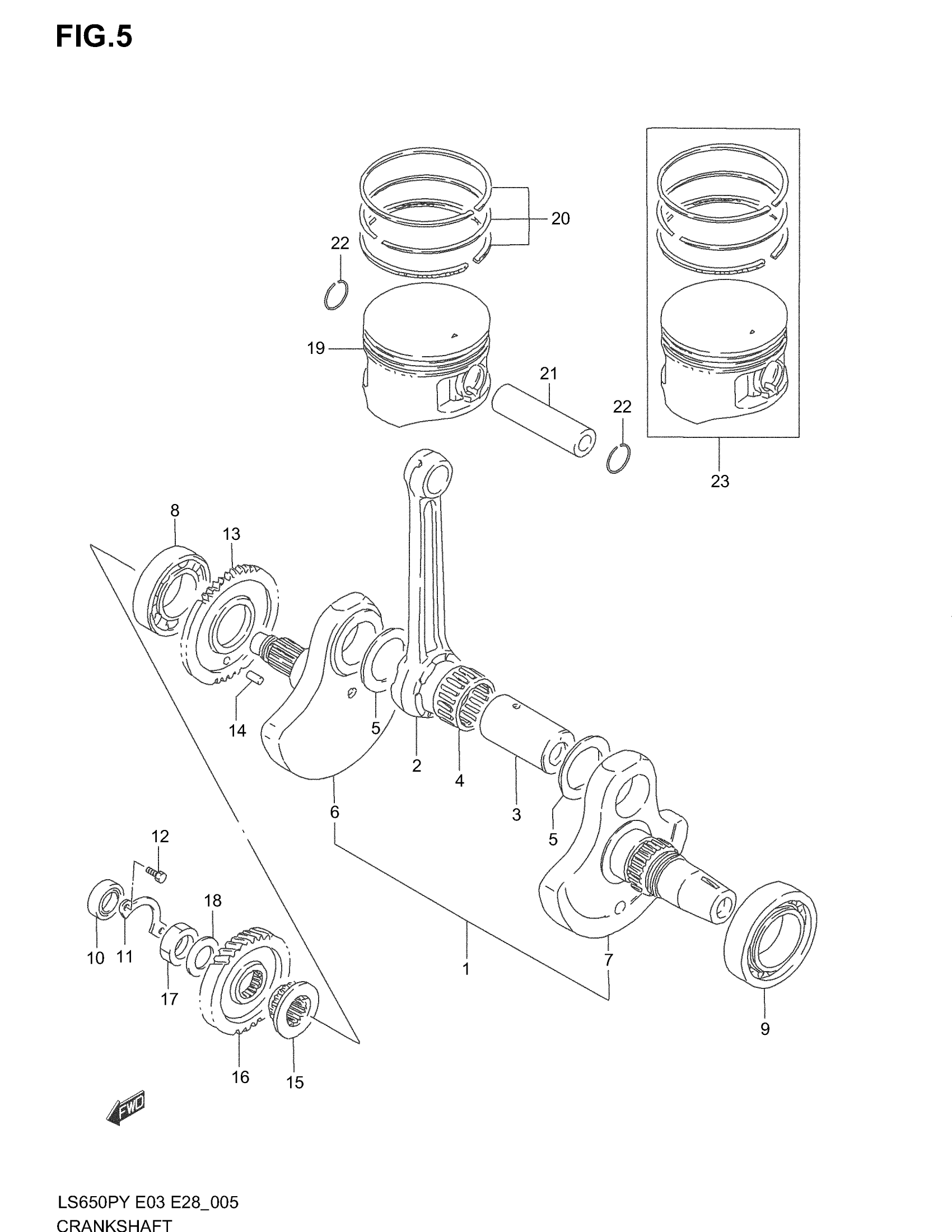

Suzuki LS650P (2004) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-24B05

Unavailable

2

ROD, CONNECTING

12161-24B01-0C0

$156.07

3

PIN, CRANK

12210-24B01-0A0

$68.60

4

BEARING (37X47X25)

09263-37004-0B0

$55.27

5

WASHER

09160-37006

$10.58

6

CRANKSHAFT, RH

12221-24B02

Unavailable

7

CRANKSHAFT, LH

12261-24B02

Unavailable

8

BEARING, RH (35X72X17)

09262-35038

$46.10

9

BEARING, LH (40X80X18)

09264-40002

$150.62

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

PLATE, RH

12548-24B00

Unavailable

12

BOLT

01500-05083

Unavailable

13

GEAR, BALANCER DRIVE | NT:47

12661-24B00

Unavailable

14

PIN

04221-08149

$1.96

15

SPROCKET, CAM CHAIN DRIVE | NT:19

12731-24B00

$68.60

16

GEAR, PRIMARY DRIVE (NT:37)

21111-24B10

Unavailable

17

NUT This part replaces 09140-20008.

09140-20013

$4.26

18

LOCK WASHER

09164-20003

$3.85

19

PISTON | MODEL T/V/W/X/Y This part replaces 12111-24B01.

12111-24B01-0F0

$135.82

19

PISTON | MODEL K1/K2/K3/K4

12111-24B01-0F0

$135.82

20

RING SET, PISTON | %E.NO.144588 This part replaces 12140-14A31.

12140-14A32

$45.82

20

RING SET, PISTON | E.NO.144589%

12140-14A32

$45.82

21

PIN, PISTON

12151-14A01

$23.40

22

CIRCLIP

09381-23003

$1.49

23

PISTON SET (OS:0.5) | OPT

12100-24B00-050

$199.10
