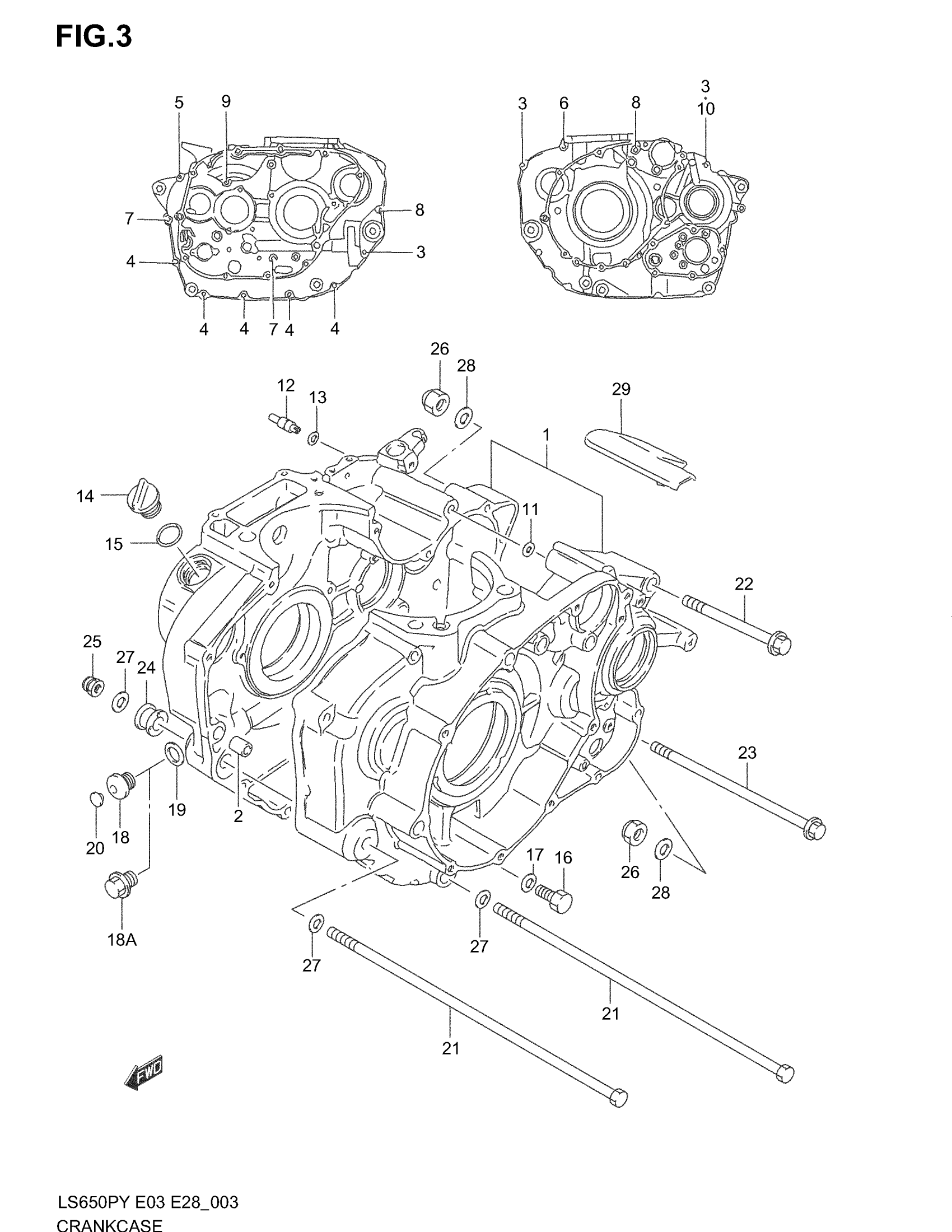

Suzuki LS650P (2004) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL T/V/W/X/Y/K1

11301-24812

Unavailable

1

CRANKCASE SET | MODEL K2/K3/K4; Includes Item(s) 2 - 13 This part replaces 11302-24850.

11302-24852

Unavailable

2

PIN (11X20) | MODEL T This part replaces 09206-11005.

09206-11017

$6.30

2

PIN | MODEL V/W/X/Y/K1/K2/K3/K4

09206-11017

$6.30

3

BOLT | MODEL T/V/W/X/Y/K1

01547-06407

$2.32

3

BOLT | MODEL K2/K3/K4 This part replaces 01547-06403.

01547-0640B

$2.75

4

BOLT | MODEL T/V/W/X/Y/K1

01547-06457

$2.32

4

BOLT | MODEL K2/K3/K4 This part replaces 01547-06453.

01547-0645B

$2.73

5

BOLT

01547-06557

$2.32

6

BOLT | MODEL T/V/W/X/Y/K1

01547-06607

$3.18

6

BOLT | MODEL K2/K3/K4 This part replaces 01547-06603.

01547-0660B

$3.18

7

BOLT | MODEL T/V/W/X/Y/K1

01547-06657

$2.75

7

BOLT | MODEL K2/K3/K4 This part replaces 01547-06653.

01547-0665B

$3.18

7

BOLT | MODEL K2/K3/K4

01547-06657

$2.75

8

BOLT (CHROME) | MODEL T/V/W/X/Y/K1

01547-06707

$2.75

8

BOLT | MODEL T/V/W/X/Y/K1 This part replaces 01547-06703.

01547-0670B

$3.29

8

BOLT | MODEL K2/K3/K4 This part replaces 01547-06703.

01547-0670B

$3.29

9

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

10

GASKET (5.8X11X1.2) | MODEL T/V/W/X

09168-06024

$2.20

10

GASKET (5.8X13X1.2) | MODEL Y/K1/K2/K3/K4

09168-06023

$2.35

11

O RING (D:2.4,ID:9.6)

09280-10013

$3.70

12

JET, OIL GALLERY

09493-36004

$16.87

13

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

14

PLUG, OIL FILLER

09259-20007

$7.53

15

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

16

BOLT | MODEL T/V/W This part replaces 01500-12203.

01500-1220B

$4.00

16

PLUG, OIL DRAIN | MODEL X/Y/K1/K2/K3/K4

09247-12106

$2.73

17

GASKET

09168-12002

$1.59

18

PLUG, SHAFT | %E.NO.139421 This part replaces 09248-14005.

09248-14011

$2.98

18A

PLUG | E.NO.139422% This part replaces 09247-14012.

09247-14026

$3.76

19

GASKET

09168-14002

$2.26

20

CAP | %E.NO.139421

09250-08014

$2.85

21

BOLT (10X323)

09104-10034

$28.48

22

BOLT (10X105)

09103-10087

$7.03

23

BOLT (10X180)

09103-10053

$11.48

24

SPACER

11610-38400

$13.05

25

NUT

09159-10064

$10.08

26

NUT

09159-10047

$9.41

27

WASHER

08322-01107

$2.15

28

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

29

COVER, CRANKCASE

11384-24B01

Unavailable
