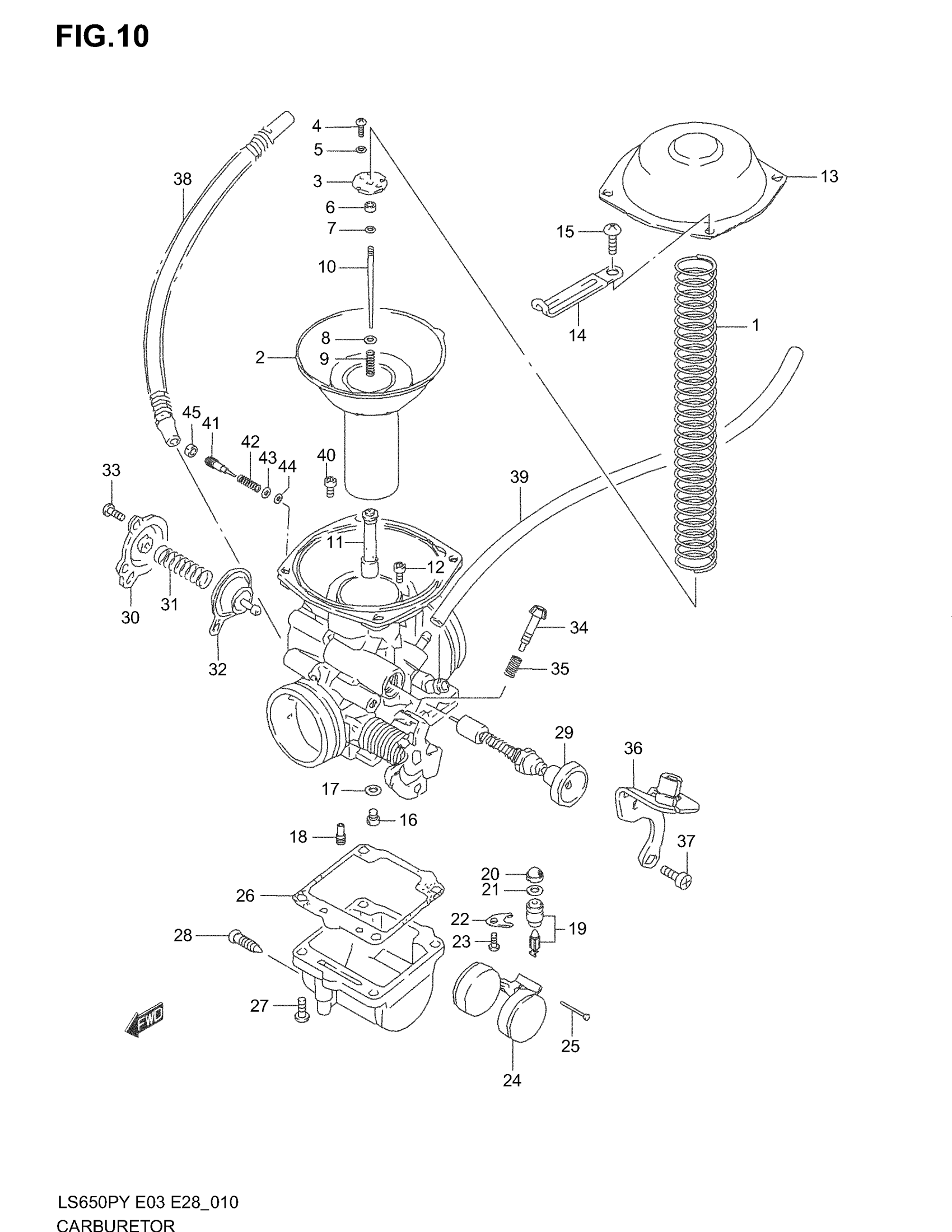

Suzuki LS650P (2004) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL T/V/W/X This part replaces 13200-24C40.

13200-24C42

$736.23

CARBURETOR ASSY | MODEL Y/K1/K2/K3 This part replaces 13200-24C41.

13200-24C42

$736.23

CARBURETOR ASSY | MODEL K4 This part replaces 13200-24C90.

13200-24C91

Unavailable

CARBURETOR ASSY | MODEL T/V/W/X E33 This part replaces 13200-24C50.

13200-24C52

$1,050.42

CARBURETOR ASSY | MODEL Y/K1/K2/K3 E33 This part replaces 13200-24C51.

13200-24C52

$1,050.42

CARBURETOR ASSY | MODEL K4 E33; Includes Item(s) 1 - 45

13200-24CA0

Unavailable

1

SPRING

13503-24B00

$23.07

2

DIAPHRAGM ASSY This part replaces 13500-24B40.

13500-24B41

$231.13

3

PLATE

13389-37400

$7.08

4

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

5

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

6

RING

13387-44030

$5.83

7

E RING

13394-31210

$4.64

8

WASHER

13382-44030

$3.71

9

SPRING

13388-44030

$8.12

10

NEEDLE, JET (5C39)

13383-24C40

$18.43

11

JET, NEEDLE (X-7M)

09494-00861

$51.93

12

JET, PILOT AIR (45)

09491-45002

$17.37

13

COVER

13502-37400

Unavailable

14

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

15

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

16

JET, MAIN (145)

09491-29013

$17.37

17

WASHER, NEEDLE JET | MODEL T/V This part replaces 13332-44080.

13382-03110

$2.80

17

WASHER | MODEL W/X/Y/K1/K2/K3/K4

13382-03110

$2.80

18

JET, PILOT (52.5)

09492-52010

$14.67

19

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$89.23

20

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

21

O RING This part replaces 13374-44080.

13374-35C00

$5.99

22

PLATE

13373-39110

$6.64

23

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

24

FLOAT

13250-37400

$28.97

25

PIN, FLOAT

13254-92311

$2.07

26

.GASKET This part replaces 13251-38300.

13251-37101

$11.25

27

SCREW

02112-35116

$1.90

28

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

29

PLUNGER ASSY This part replaces 13411-24B00.

13411-24C00

$56.70

30

COVER

13484-38A10

$22.22

31

SPRING | MODEL T/V/W/X/Y/K1/K2/K3

13481-24B00

$4.35

31

SPRING | MODEL K4

13481-38B40

$5.67

32

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

33

SCREW This part replaces 02112-04103.

02112-0410A

$1.49

34

ADJUSTER | MODEL T This part replaces 13267-37100.

13267-25D00

$14.20

34

ADJUSTER | MODEL V/W/X/Y/K1/K2/K3/K4

13267-25D00

$14.20

35

SPRING

13271-93011

$5.32

36

BRACKET

13621-24B01

$50.10

37

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

38

HOSE ASSY This part replaces 13318-24B00.

13318-24C01

$18.56

39

HOSE,5X10X600 | L:600!250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

40

JET, PILOT AIR NO.2 (230)

09491-46005

$17.37

41

SCREW, PILOT (1,1/8)

13269-37400

$11.36

42

.SPRING (NT:45)

13268-47070

$4.34

43

WASHER

13291-29900

$1.98

44

O-RING This part replaces 13295-29900.

13295-29901

$4.34

45

PLUG

13281-05A00

$4.60
