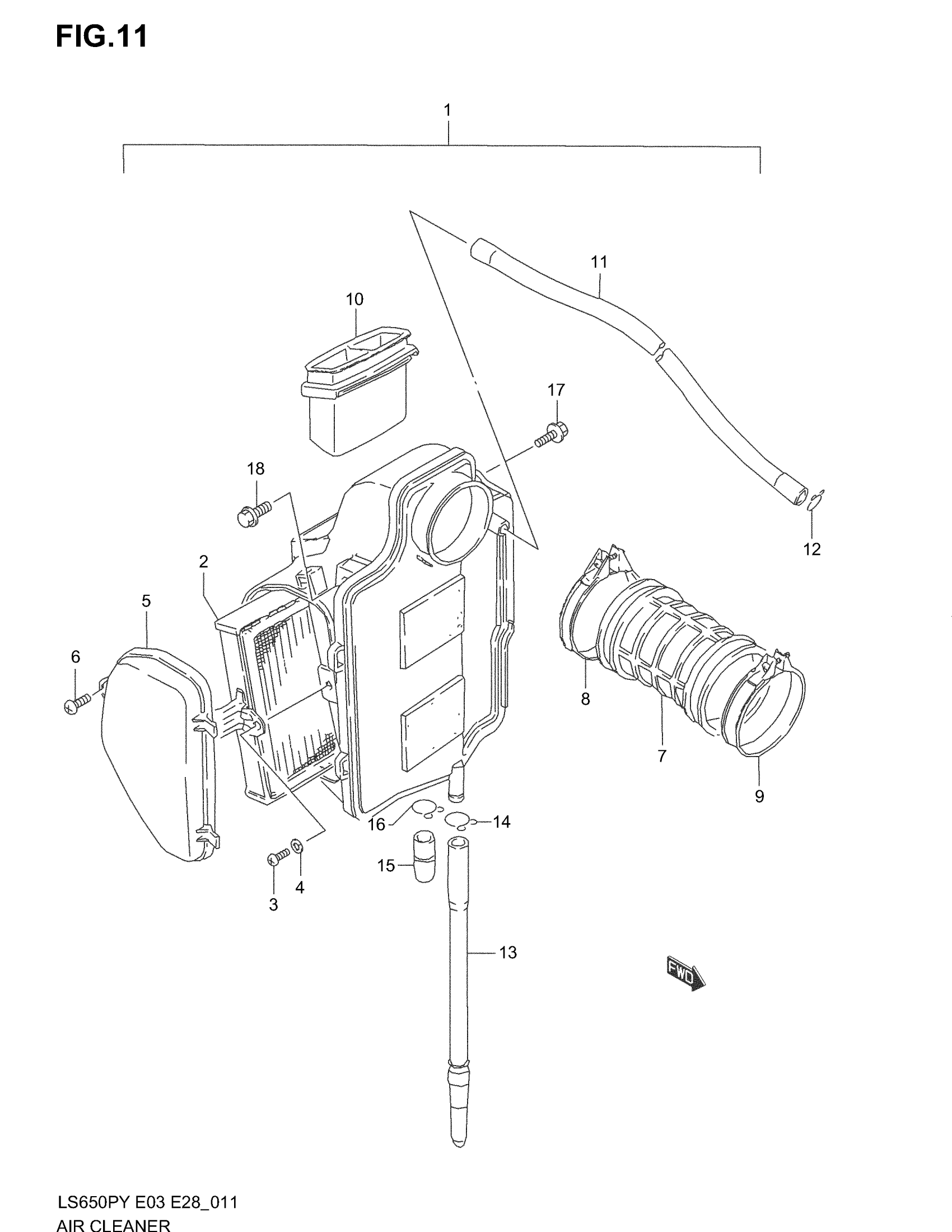

Suzuki LS650P (2004) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 16 This part replaces 13700-24B05.

13700-24B07

$253.93

2

FILTER

13780-24B01

$40.71

3

SCREW

02112-05107

$1.49

4

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

5

CAP

13740-24B01

$21.98

6

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

7

TUBE,AIR CLEANE This part replaces 13881-24B01.

13881-24B02

$17.69

8

CLAMP This part replaces 09402-70203.

09402-70902

$5.64

9

CLAMP

09402-64203

$6.58

10

TUBE, INLET

13891-24B00

Unavailable

11

HOSE | L:600!430 This part replaces 09352-11153-600.

09352-11154-600

$13.05

12

CLIP

09401-14301

$2.35

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.51

14

CLIP

09401-13409

$2.12

15

.PLUG

13859-41B10

$7.38

16

CLIP

09401-14301

$2.35

17

BOLT (6X16)

09116-06006

$1.86

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
