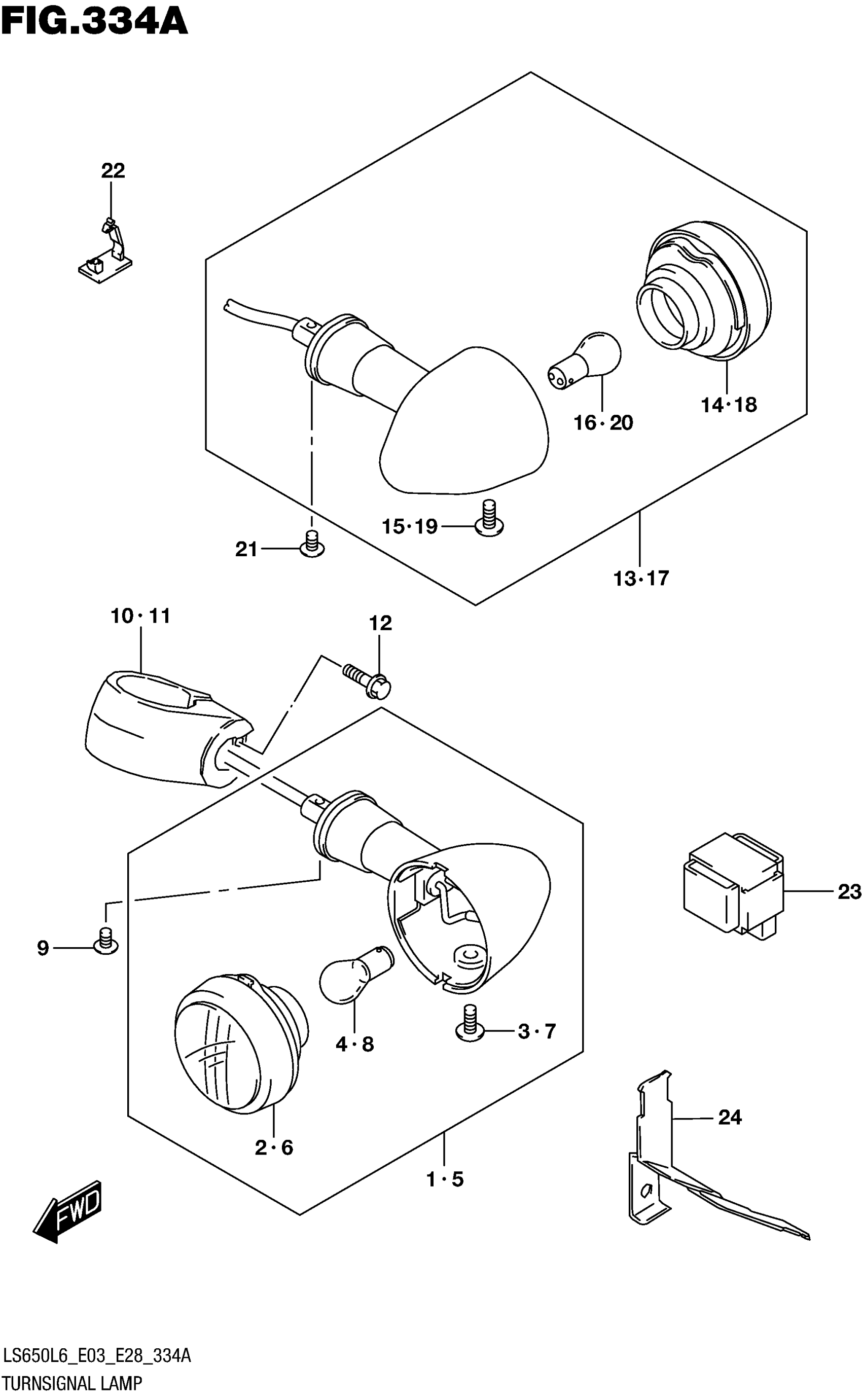

Suzuki LS650L6 (2016) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AD0

$139.48

2

.LENS

35610-38AA0

$31.91

3

.SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AD0

$114.67

6

.LENS

35630-38AA0

$31.91

7

.SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

SCREW

02142-06107

Unavailable

10

BRACKET, FRONT TURNSIGNAL LAM

35671-24B00

Unavailable

10

RH

35671-24B00

Unavailable

11

BRACKET, FRONT TURNSIGNAL LAM

35681-24B00

$61.15

11

LH

35681-24B00

$61.15

12

BOLT

01547-0525A

Unavailable

13

LAMP ASSY, REAR TURNSIGNAL RH

35603-38AA0

$114.67

14

.LENS

35630-38AE1

$31.91

15

.SCREW (4X10)

35623-38AA0

$5.11

16

.BULB (12V,21W)

09471-12045

$3.27

17

LAMP ASSY, REAR TURNSIGNAL LH

35604-38AA0

$114.67

18

.LENS

35610-38AE1

$31.91

19

.SCREW (4X10)

35623-38AA0

$5.11

20

.BULB (12V,21W)

09471-12045

$3.27

21

SCREW

02142-06167

$1.49

22

CLAMP

09403-04310

$5.35

23

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$58.97

24

BRACKET, TURN SIGNAL RELAY

38621-24B10

Unavailable
