Description

Price

1

SEAT ASSY This part replaces 45100-24BA0-HW9.

45100-24BA1-HW9

$336.65

2

CUSHION,SEAT This part replaces 45149-24B00.

45149-24B01

$3.25

3

.CUSHION, CENTER FRONT

45116-24B00

Unavailable

4

.CUSHION

45149-43500

$6.85

5

.BRACKET, SEAT REAR

45114-24B00

$10.17

6

.CUSHION, SEAT REAR BRACKET

45118-24B00

$3.77

7

.WASHER (6.5X20X1.6)

09160-06066

$1.89

8

.BOLT

01550-0625B

$2.42

9

BOLT

01550-0612B

$2.39

10

PLATE, SEAT HOOK FRONT

45119-24B00

$3.05

11

CUSHION, SEAT REAR

45149-24BA0

$5.13

12

BOLT (6X12)

09106-06117

$5.10

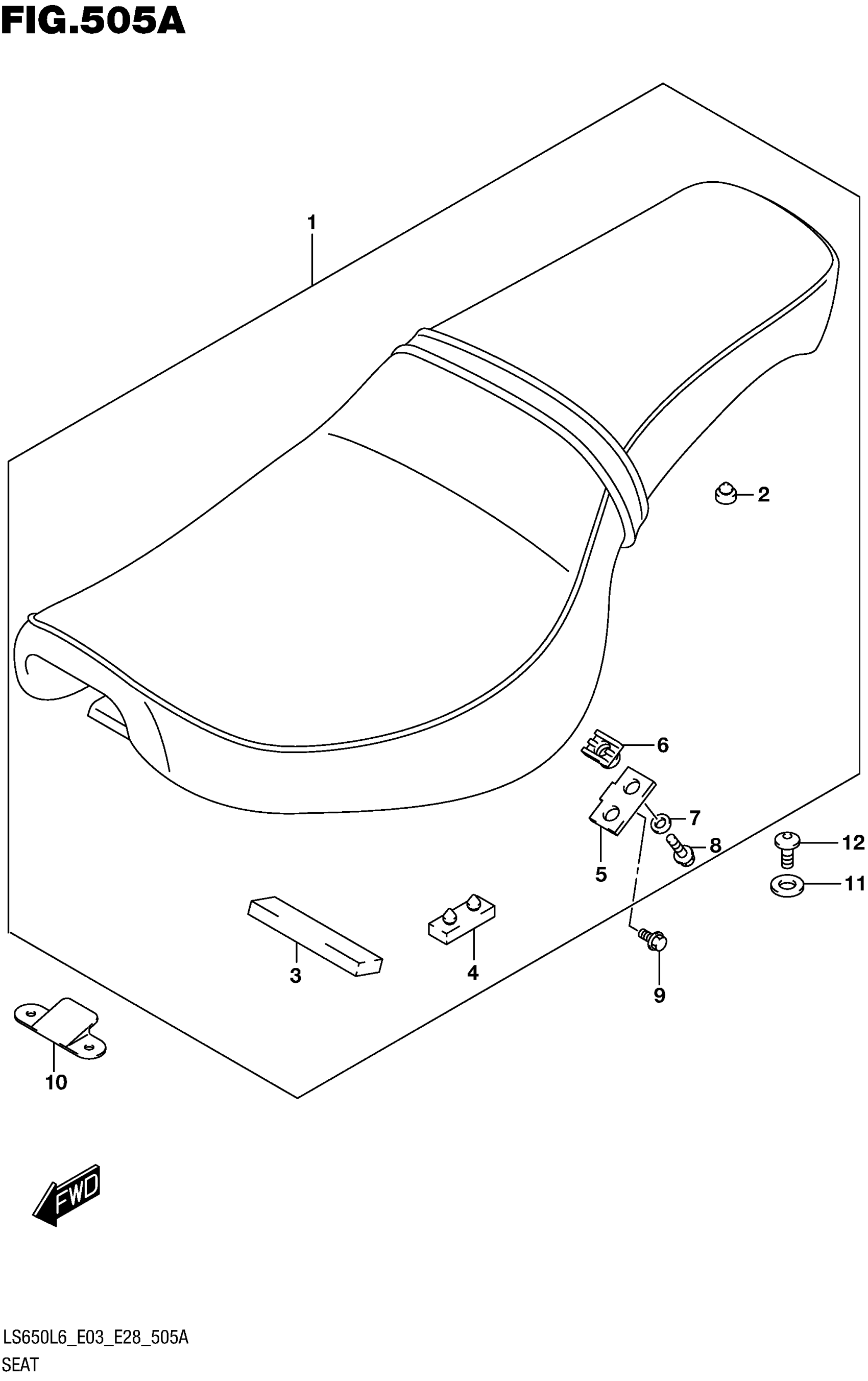

Suzuki LS650L6 (2016) SEAT Diagram
