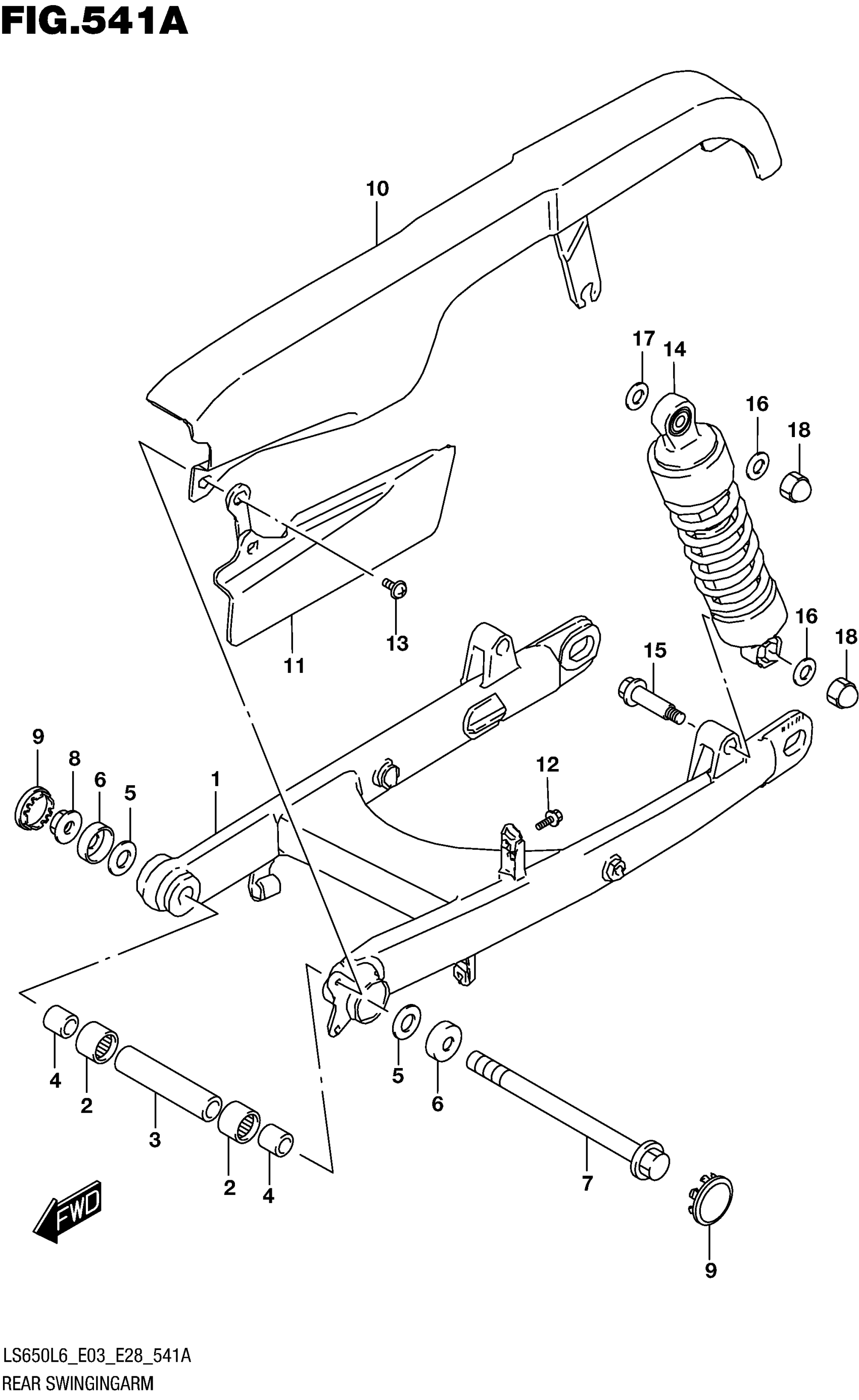

Find the part on the Rear Swingingarm diagram for your 2016 Suzuki LS650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LS650L6 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR (BLACK)

61100-24B03-019

1
Out of stock

2

BEARING (22X29X30)

09263-22017

2
Out of stock

3

SPACER, REAR SWINGING ARM

61282-24B01

1
Out of stock

3

PIVOT CENTER

61282-24B01

1
Out of stock

4

SPACER, REAR SWINGING ARM

61251-24B00

2
Out of stock

4

PIVOT

61251-24B00

1
Out of stock

5

WASHER

08211-14341

2
Out of stock

6

DUST SEAL, REAR SWINGING ARM

61262-45002

2
Out of stock

6

PIVOT

61262-45002

1
Out of stock

7

SHAFT, REAR SWINGING ARM PIVO

61211-24B00

1
Out of stock

8

NUT

08319-3114A

1
Out of stock

9

CAP, REAR SWINGING ARM PIVOT

61222-38A01

2
Out of stock

10

BELT CASE, UPPER

61310-24B02

1
Out of stock

11

BELT CASE, LOWER

61320-24B02

1
Out of stock

12

BOLT

01550-0612B

2
Out of stock

13

SCREW

02112-7612B

2

$3.10

In stock

14

SHOCK ABSORBER ASSY, REAR

62100-24B00

2
Out of stock

15

BOLT, REAR SHOCK ABSORBER

62313-24B00

2
Out of stock

15

LOWER

62313-24B00

1
Out of stock

16

WASHER (10.5X28X2.3)

09160-10035

4
Out of stock

17

WASHER (14.5X29X2.3)

09160-14009

2
Out of stock

18

NUT

08313-10107

4
Out of stock
