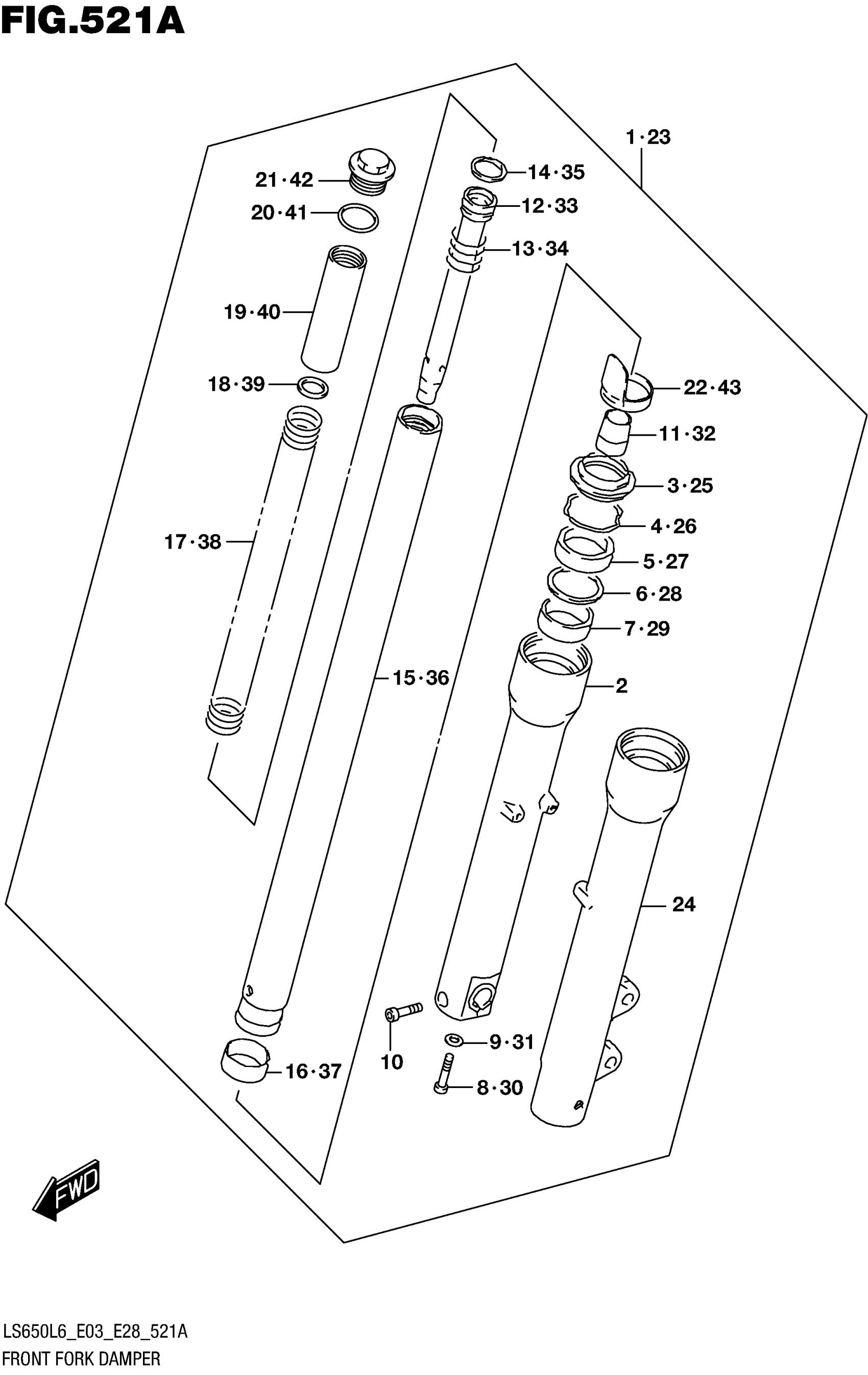

Suzuki LS650L6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-24B50

Unavailable

2

.TUBE, OUTER RH

51130-24B50

Unavailable

3

.SEAL, DUST

51173-20A00

$15.18

4

.RING, OIL SEAL STOPPER

51156-40301

$4.63

5

.OIL SEAL

51153-20A00

$17.89

6

.WASHER

51158-14100

$3.50

7

.METAL, SLIDE

51167-13A00

$9.12

8

.BOLT, FORK CYLINDER

51147-16510

$4.09

9

.GASKET

51148-41310

$2.14

10

.BOLT

07130-08407

$2.88

11

.PIECE, OIL LOCK

51195-24B01

Unavailable

12

.CYLINDER

51146-24B01

Unavailable

13

.SPRING, REBOUND

51177-49440

Unavailable

14

.RING, PISTON

51196-49440

Unavailable

15

.TUBE, INNER

51120-24B01

$432.87

16

.PISTON

51121-14100

$13.90

17

.SPRING

51171-24B00

Unavailable

18

.WASHER

51172-45C00

$7.57

19

.SPACER, SPRING

51176-24B01

Unavailable

20

.O RING

51117-40300

$2.92

21

.CAP

51351-24B00

Unavailable

22

.PROTECTOR, FRONT FORK

51201-01DA0

$32.30

23

DAMPER ASSY, FRONT FORK LH

51104-24B50

Unavailable

24

.TUBE, OUTER LH

51140-24B50

Unavailable

25

.SEAL, DUST

51173-20A00

$15.18

26

.RING, OIL SEAL STOPPER

51156-40301

$4.63

27

.OIL SEAL

51153-20A00

$17.89

28

.WASHER

51158-14100

$3.50

29

.METAL, SLIDE

51167-13A00

$9.12

30

.BOLT, FORK CYLINDER

51147-16510

$4.09

31

.GASKET

51148-41310

$2.14

32

.PIECE, OIL LOCK

51195-24B01

Unavailable

33

.CYLINDER

51146-24B01

Unavailable

34

.SPRING, REBOUND

51177-49440

Unavailable

35

.RING, PISTON

51196-49440

Unavailable

36

.TUBE, INNER

51120-24B01

$432.87

37

.PISTON

51121-14100

$13.90

38

.SPRING

51171-24B00

Unavailable

39

.WASHER

51172-45C00

$7.57

40

.SPACER, SPRING

51176-24B01

Unavailable

41

.O RING

51117-40300

$2.92

42

.CAP

51351-24B00

Unavailable

43

.PROTECTOR, FRONT FORK

51201-01DA0

$32.30
