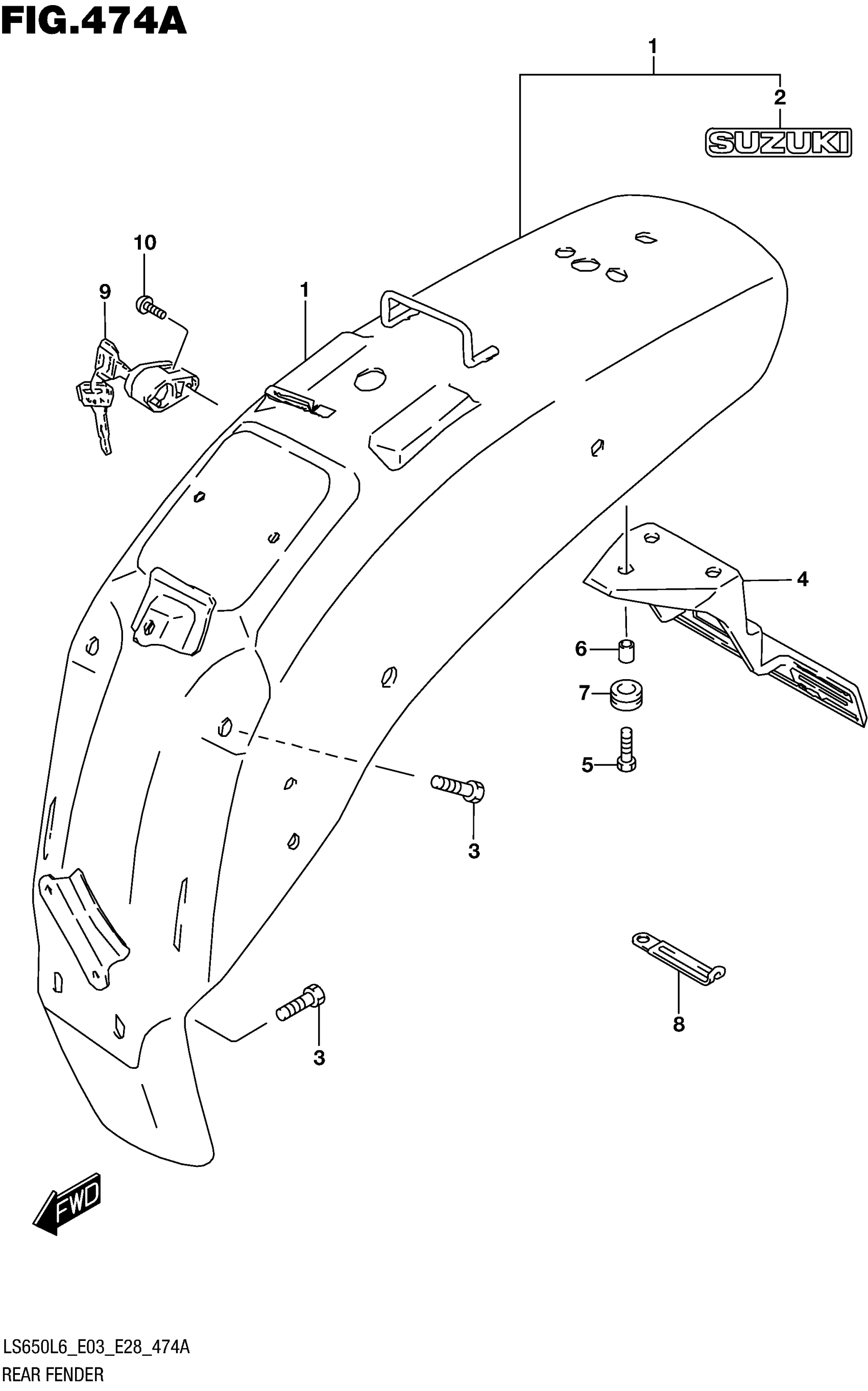

Suzuki LS650L6 (2016) REAR FENDER Diagram

#

Description

Price

1-1

FENDER ASSY, REAR (BLUE)

63100-24C00-YSF

Unavailable

1-2

FENDER, ASSY REAR (WHITE)

63100-24C00-YWW

Unavailable

2-1

.EMBLEM,"SUZUKI" (SILVER) | FOR YSF This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

2-2

EMBLEM,"SUZUKI" | FOR YWW This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

3

BOLT (8X25)

09103-08419

$2.53

4

BRACKET, LICENSE PLATE

35916-24B01

$74.56

5

BOLT (6X20)

09116-06010

$2.19

6

SPACER (6.5X9X9)

09180-06263

$2.03

7

CUSHION

09320-09016

$1.97

8

CLAMP (L:45)

09404-06429

$1.83

9

LOCK SET, HELMET

95700-38821

$66.87

10

SCREW

02112-05127

$1.97
