Description

Price

1

HANDLEBAR

56110-24C00

$242.07

2

MIRROR ASSY, REAR VIEW RH

56500-45C41

$135.25

3

MIRROR ASSY, REAR VIEW LH

56600-45C41

$135.25

4

CABLE ASSY, CLUTCH

58200-24C00

$29.34

5

CABLE ASSY, THROTTLE

58300-24C00

$40.47

6

SCREW (5X10)

09139-05033

$2.20

7

CLAMP, STOP LAMP SWITCH CABLE

58620-24B00

Unavailable

8

BOLT

01550-0616A

$1.97

9

CABLE, STOP LAMP SWITCH

58830-24B01

$28.85

10

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

11

CLAMP (L:145)

09407-14407

$3.57

12

GUIDE, CABLE

58621-24C00

$14.20

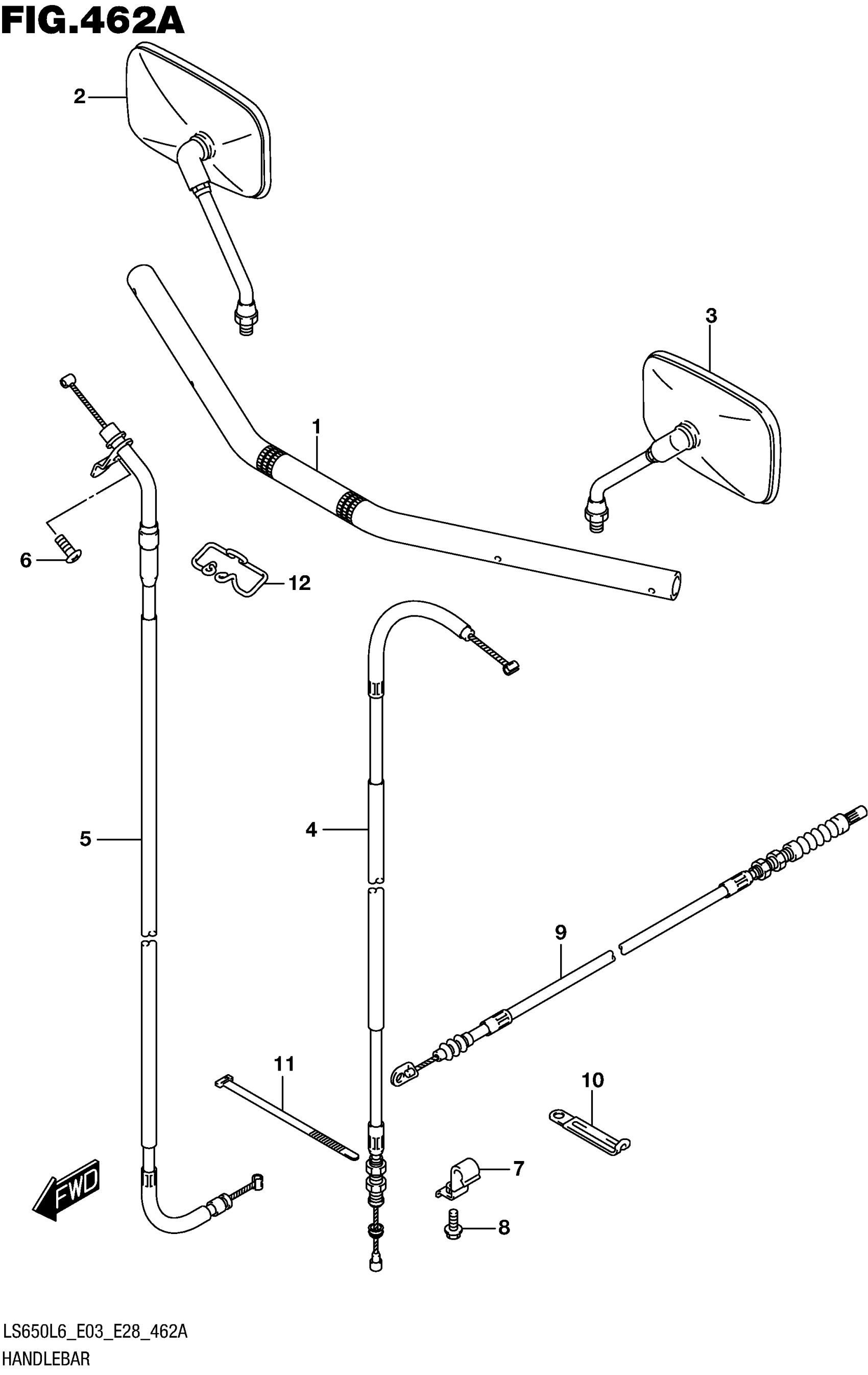

Suzuki LS650L6 (2016) HANDLEBAR Diagram
