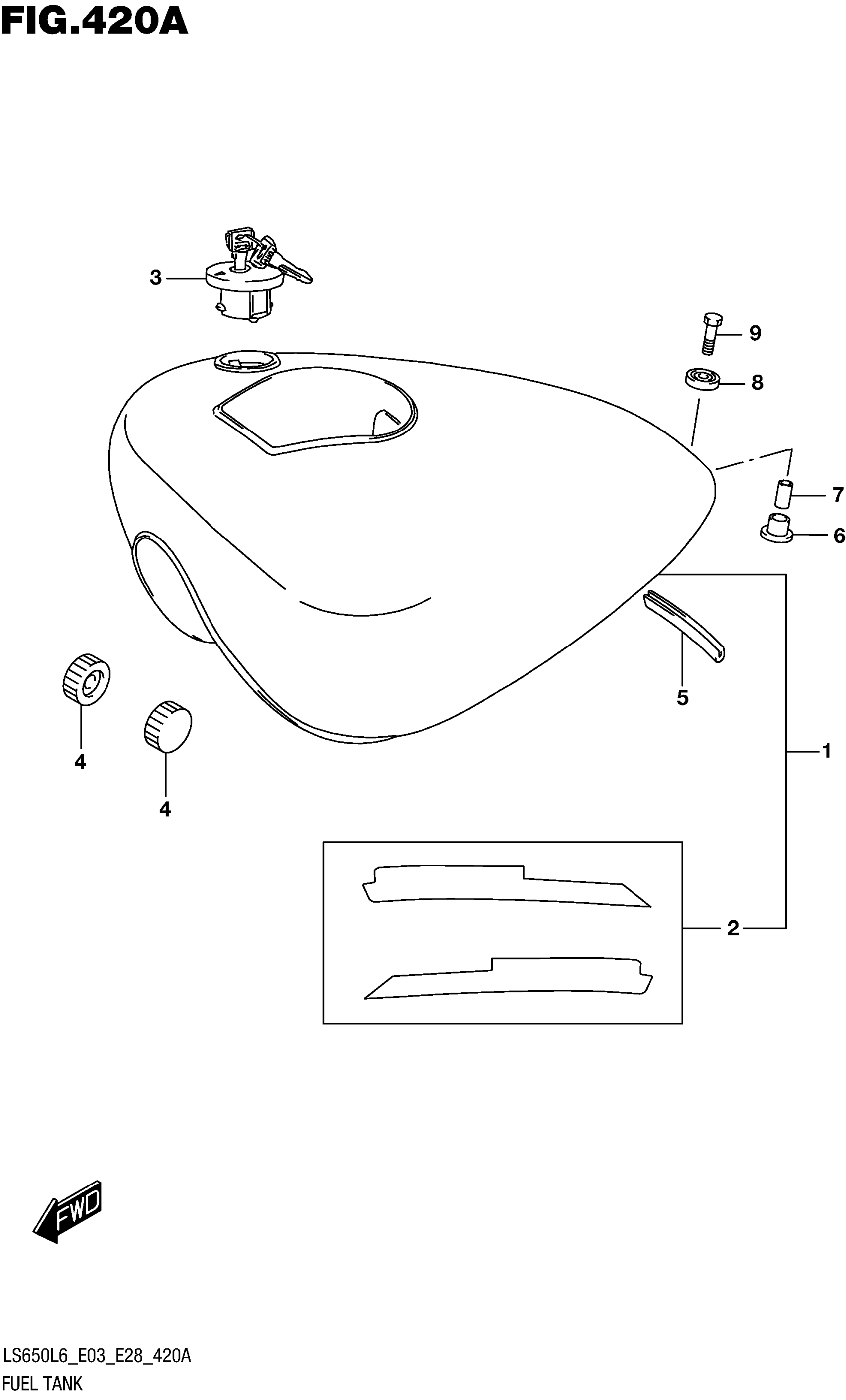

Suzuki LS650L6 (2016) FUEL TANK (LS650L6 E03) Diagram

#

Description

Price

1-1

TANK ASSY,FUEL This part replaces 44100-24C70-YSF.

44100-24C71-YSF

$829.35

1-2

TANK ASSY,FUEL This part replaces 44100-24C70-YWW.

44100-24C71-YWW

$831.90

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-24C10-HUE

Unavailable

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-24C10-BBG

Unavailable

3

CAP SET, FUEL TANK

44200-24830

$125.55

4

CUSHION

09329-10016

$3.10

5

MOLDING, FUEL TANK REAR

44552-24B10

$11.18

6

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

7

SPACER (6.5X9X18)

09180-06271

$2.35

8

CUSHION

09320-14013

$2.11

9

BOLT

01500-0630A

$2.19
