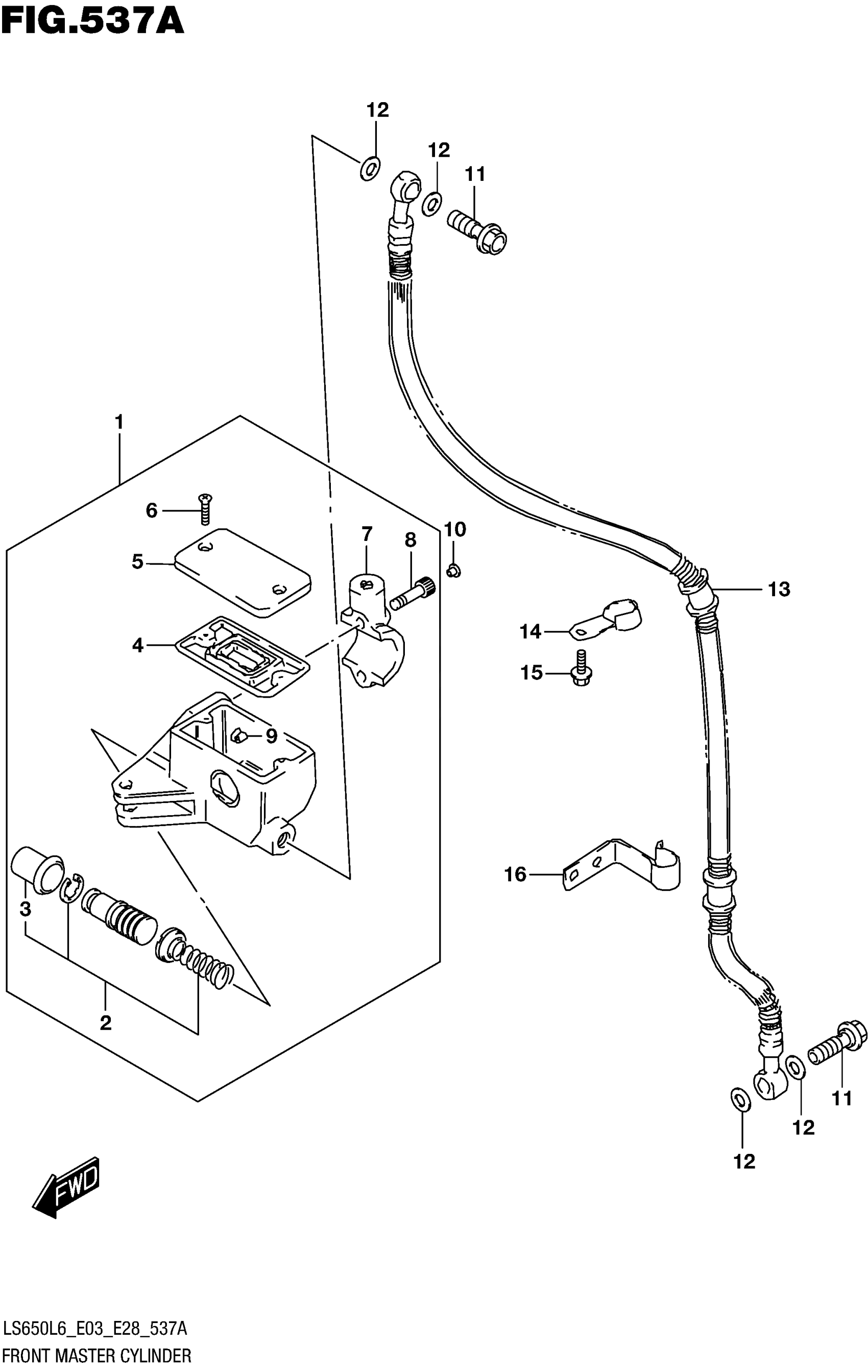

Suzuki LS650L6 (2016) FRONT MASTER CYLINDER Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-38AA0

Unavailable

.PISTON/CUP SET

59600-04810

$45.20

..BOOT

59666-44300

$5.80

.DIAPHRAGM

59667-49460

$9.78

.CAP

59669-10F00

$71.45

.SCREW

02122-04127

$1.97

.HOLDER

59671-38A00

$37.11

.BOLT

07130-06207

$3.04

.PROTECTOR

59664-48B00

$11.02

CAP (OD:10)

09250-05008

$3.76

UNION

09360-10061

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE, FRONT BRAKE

59480-24B60

$162.72

GUIDE, BRAKE HOSE NO.1

59541-24B00

$7.37

BOLT

01547-0610A

$2.45

GUIDE, BRAKE HOSE NO.2

59268-24B00

$8.42
