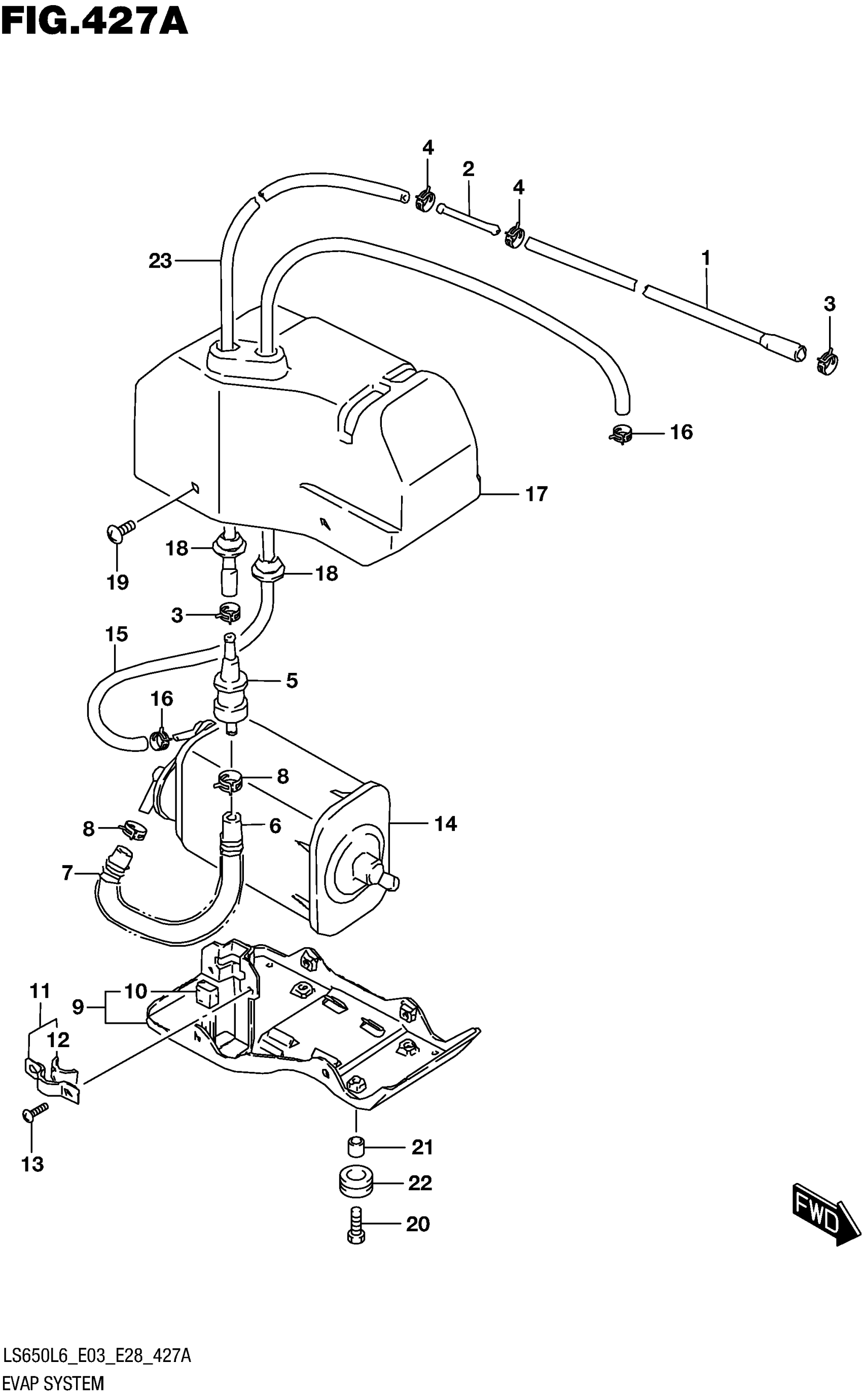

Suzuki LS650L6 (2016) EVAP SYSTEM (LS650L6 E33) Diagram

#

Description
Price

1

HOSE, EVAP SYSTEM NO.3 CHG

44998-24BA0

Unavailable

2

JOINT

09364-04002

Unavailable

3

CLIP

09401-08411

$1.78

4

CLIP

09401-06405

$2.45

5

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

6

HOSE, EVAP SYSTEM NO.1

44996-24BA0

Unavailable

7

SPRING

09440-13041

$3.89

8

CLIP

09401-11413

$2.26

9

PLATE, CANISTER FITTING

44880-24B00

Unavailable

10

CUSHION (10X30X2)

44894-24A00

$1.72

10

CUSHION (10X30X2)

44894-24A00

$1.72

11

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

11

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

12

CUSHION (10X30X2)

44894-24A00

$1.72

12

CUSHION (10X30X2)

44894-24A00

$1.72

13

SCREW

02142-0410B

Unavailable

14

CANISTER ASSY, CHARCOAL

17210-24B00

Unavailable

15

HOSE, EVAP SYSTEM NO.4 PURGE

44999-24BA0

Unavailable

16

CLIP

09401-08409

$1.93

17

COVER, CANISTER

44991-24B00

Unavailable

18

GROMMET

09308-07004

$2.36

19

SCREW

02142-0610B

$2.15

20

BOLT (6X16)

09116-06168

$2.50

21

SPACER (6.5X9X7.2)

09180-06260

$3.37

22

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

23

HOSE, EVAP SYSTEM NO.2 CHG

44997-24BA0

Unavailable
