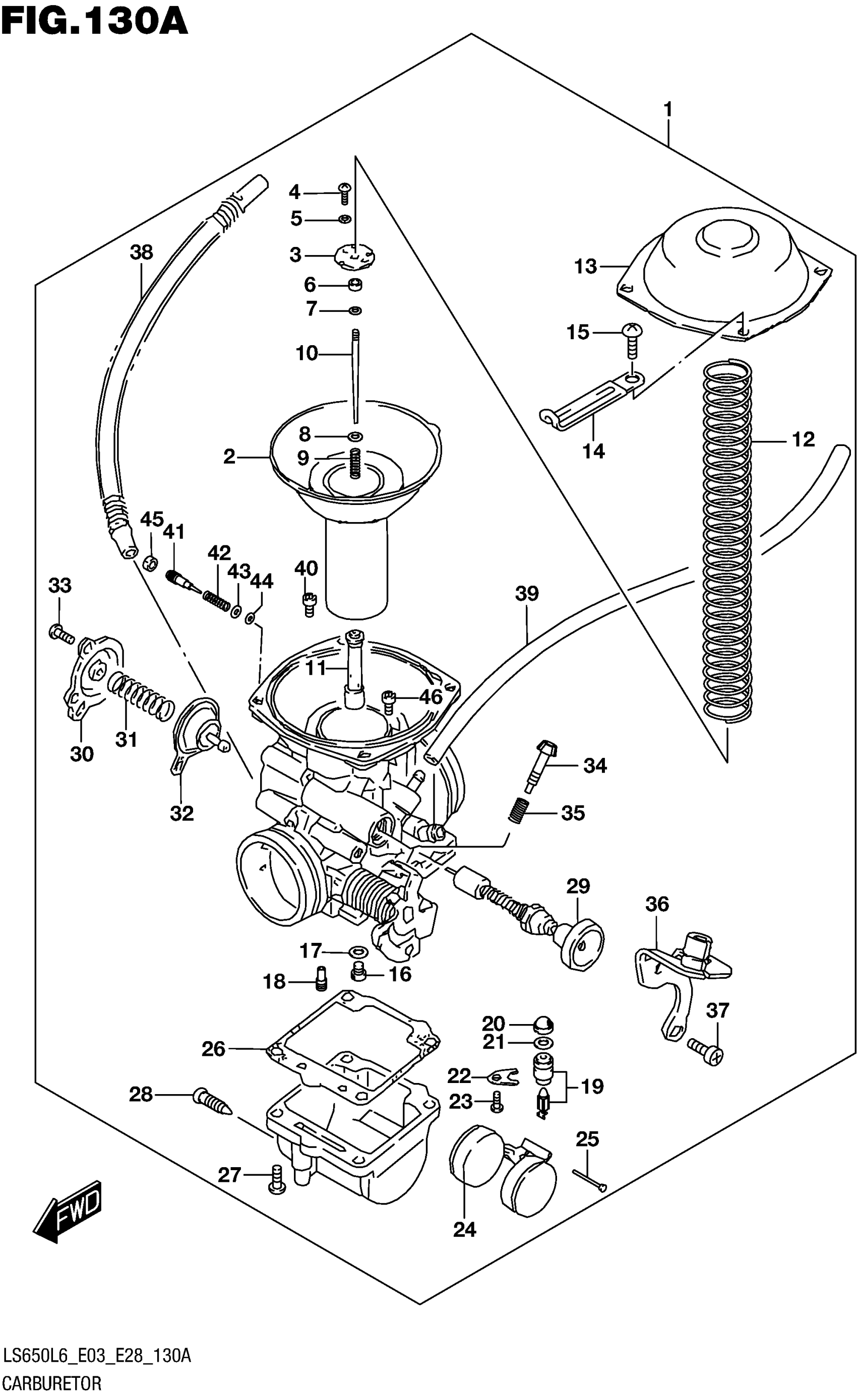

Suzuki LS650L6 (2016) CARBURETOR (LS650L6 E03) Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-24C41.

13200-24C42

$736.23

2

DIAPHRAGM ASSY This part replaces 13500-24B40.

13500-24B41

$231.13

3

.PLATE

13389-37400

$7.08

4

.SCREW

02112-0306B

$1.59

5

.LOCK WASHER

08321-2103B

$1.49

6

.RING

13387-44030

$5.83

7

.CLIP NEEDLE

13394-31210

$4.64

8

.WASHER

13382-44030

$3.71

9

.SPRING

13388-44030

$8.12

10

.NEEDLE, JET (5C17)

13383-24C40

$18.43

11

.JET, NEEDLE (X-7M)

09494-00861

$51.93

12

.SPRING

13503-24B00

$23.07

13

.COVER

13502-37400

Unavailable

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

15

.SCREW

02112-0510A

$1.49

16

.JET, MAIN (145)

09491-29013

$17.37

17

.WASHER

13382-03110

$2.80

18

.JET, PILOT (52.5)

09492-52010

$14.67

19

.VALVE ASSY, NEEDLE

13370-24C80

$89.23

20

.FILTER

13376-19F00

$10.28

21

.O RING

13374-35C00

$5.99

22

.PLATE

13373-39110

$6.64

23

.SCREW

02112-0406B

$1.55

24

.FLOAT

13250-37400

$28.97

25

.PIN, FLOAT

13254-92311

$2.07

26

.GASKET This part replaces 13251-38300.

13251-37101

$11.25

27

.SCREW

02112-0516A

$1.49

28

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

29

.PLUNGER ASSY

13411-24C00

$56.70

30

.COVER

13484-38A10

$22.22

31

.SPRING

13481-24B00

$4.35

32

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

33

.SCREW

02112-0410A

$1.49

34

.ADJUSTER

13267-25D00

$14.20

35

.SPRING

13271-93011

$5.32

36

.BRACKET ASSY

13621-24B01

$50.10

37

.SCREW

02112-0510A

$1.49

38

HOSE ASSY This part replaces 13318-24C00.

13318-24C01

$18.56

39

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

40

.JET, PILOT (230)

09491-46005

$17.37

41

.SCREW, AIR

13269-37400

$11.36

42

.SPRING (NT:45)

13268-47070

$4.34

43

.WASHER

13291-29900

$1.98

44

O-RING This part replaces 13295-29900.

13295-29901

$4.34

45

.PLUG

13281-05A00

$4.60

46

.JET (#45)

09491-45002

$17.37
