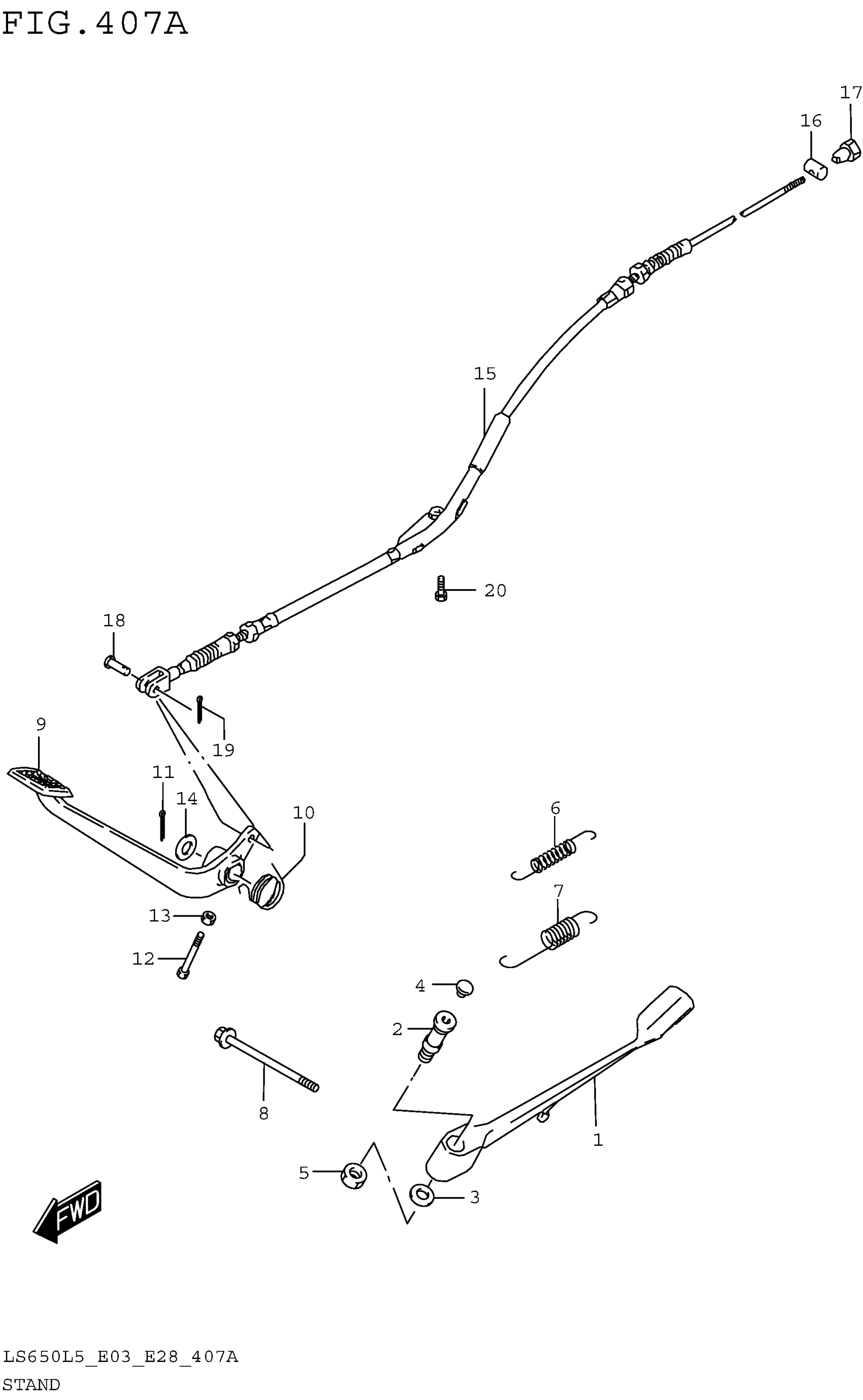

Suzuki LS650L5 (2015) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-24B01

$104.97

2

BOLT, PROP STAND

42341-38B01

$13.67

3

SHIM (15X24X0.5)

09181-15158

$3.03

4

CAP, PROP STAND BOLT

56246-24F00

$7.51

5

NUT

09140-10044

$3.03

6

SPRING

09443-15034

$10.81

7

SPRING

09443-18020

$8.53

8

BOLT (10X105)

09103-10087

$7.03

9

PEDAL This part replaces 43110-24B10.

43100-24B10

$123.07

10

SPRING

09448-32017

$7.31

11

COTTER PIN

04111-3025A

$1.49

12

BOLT (6X31)

09100-06150

$2.30

13

NUT

08310-0006B

$2.34

14

WASHER (16.5X22X1)

09160-16043

$2.12

15

CABLE, REAR BRAKE

58510-24B10

$99.71

16

PIN (13X18)

09209-13018

$3.42

17

NUT

09150-06010

$3.10

18

PIN (5.8X17.5)

09200-05001

$1.65

19

COTTER PIN

04111-2015A

$1.49

20

BOLT

01570-0616A

$2.23
