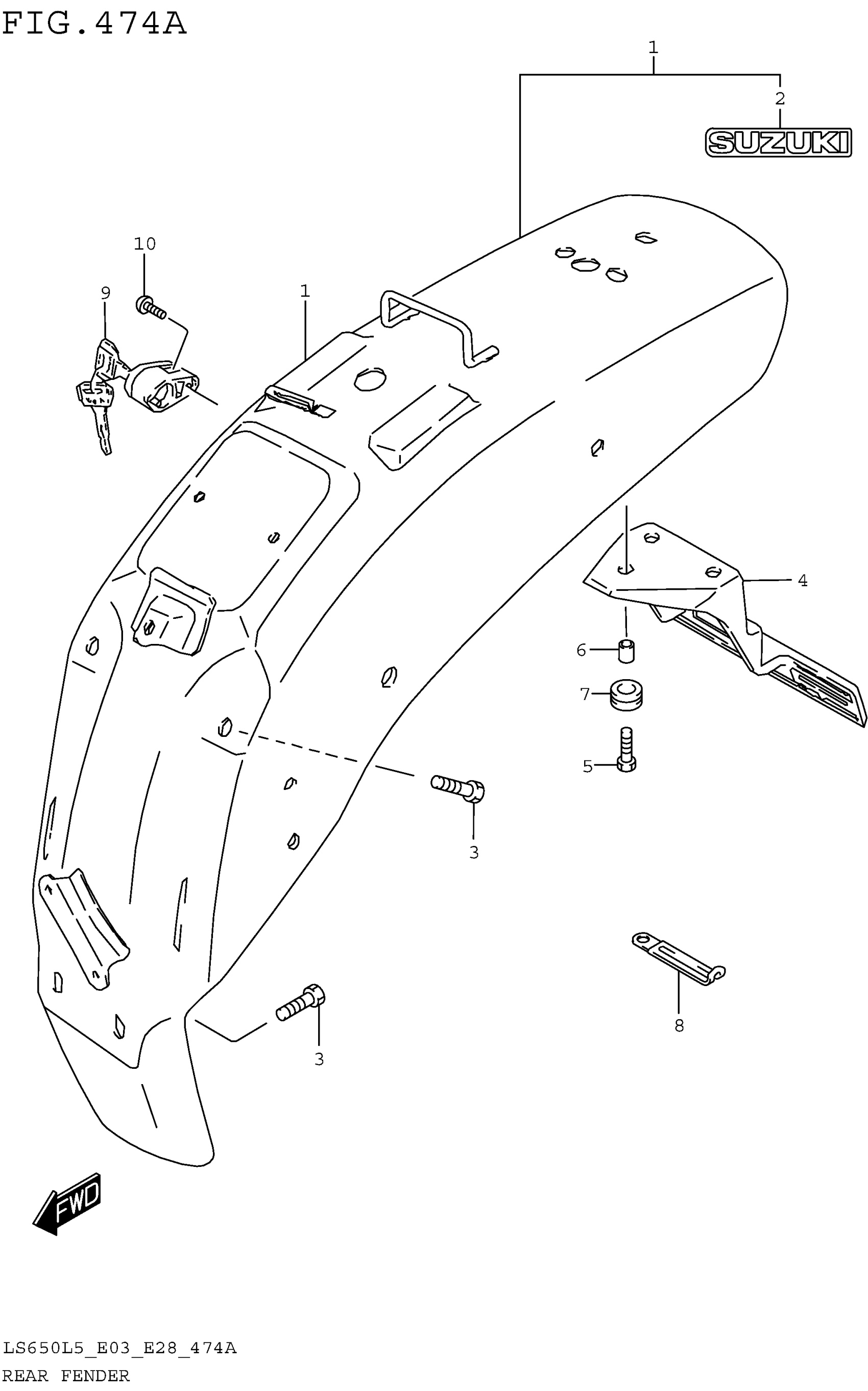

Suzuki LS650L5 (2015) REAR FENDER Diagram

#

Description
Price

1

FENDER ASSY, REAR (GRAY)

63100-24C00-YWC

Unavailable

1

FENDER, ASSY REAR (RED)

63100-24C00-YYG

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

3

BOLT (8X25)

09103-08419

$2.77

4

BRACKET, LICENSE PLATE

35916-24B01

$54.44

5

BOLT (6X20)

09116-06010

$2.10

6

SPACER (6.5X9X9)

09180-06263

$1.68

7

CUSHION

09320-09016

$1.97

8

CLAMP (L:45)

09404-06429

$1.82

9

LOCK SET, HELMET

95700-38821

$75.47

10

SCREW

02112-05127

$1.97
