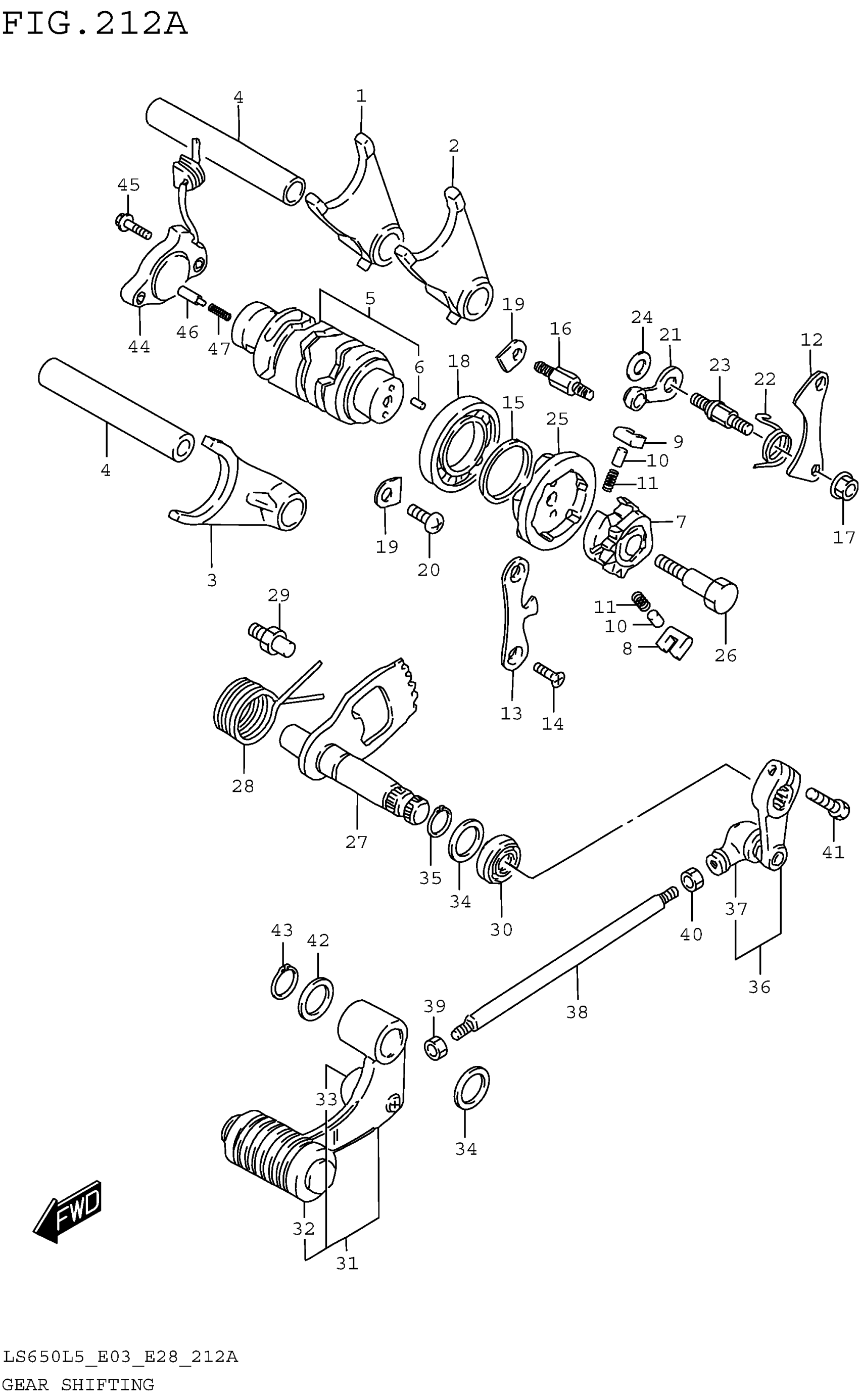

Suzuki LS650L5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-24B10

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-24B10

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-24B10

Unavailable

4

SHAFT, GEAR SHIFTING FORK

25411-24B00

Unavailable

5

CAM, GEAR SHIFTING

25310-24B11

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN (5X8)

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GEAR SHIFT POLE

25331-38A00

Unavailable

13

GUIDE, GEAR SHIFT CAM

25341-38A00

Unavailable

14

SCREW

02122-0612A

$1.49

15

WASHER (25X32X3)

09160-25059

$6.63

16

BOSS, SHIFT PAWL LIFTER

25332-24B01

Unavailable

17

NUT

08316-1006A

$2.19

18

BEARING (25X47X8)

09262-25006

$25.54

19

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

20

SCREW

02112-0612A

$1.49

21

STOPPER, GEAR SHIFT CAM

25350-24B00

$14.85

22

SPRING

09448-17021

Unavailable

23

SUPPORT, CAM STOPPER ARM

25356-12C00

$17.37

24

WASHER

08211-06141

$1.59

25

PLATE, GEAR SHIFT CAM

25380-38A02

$17.62

26

PIN, GEAR SHIFT CAM DRIVEN GEAR

25312-38A00

$6.28

27

SHAFT, GEAR SHIFTING

25510-24B01

$96.38

28

SPRING

09444-26013

$3.10

29

STOPPER, SHIFT ARM

25671-01011

$4.48

30

OIL SEAL (12X22X9)

09285-12006

$6.32

31

LEVER ASSY,GEAR This part replaces 25600-24B03.

25600-24B04

$51.17

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

34

WASHER (12.5X20X1)

09160-12011

$1.54

35

CIRCLIP

08331-3112A

$1.78

36

ARM,GEAR SHIFT This part replaces 25520-22A00.

25520-22A01

$37.89

37

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

38

ROD, GEAR SHIFT LINK

25525-21E50

$10.23

39

NUT

09140-06025

$2.05

40

NUT

08310-0006A

$1.84

41

SCREW

01500-0620A

$1.78

42

WASHER

08212-12201

$1.72

43

CIRCLIP

08331-3112A

$1.78

44

BASE ASSY, NEUT SWITCH TERM

37720-24B30

$69.35

45

SCREW

02112-7516A

$2.41

46

PIN (5X15.5)

09209-05011

$2.20

47

SPRING

09440-04010

$1.54
