Partiron

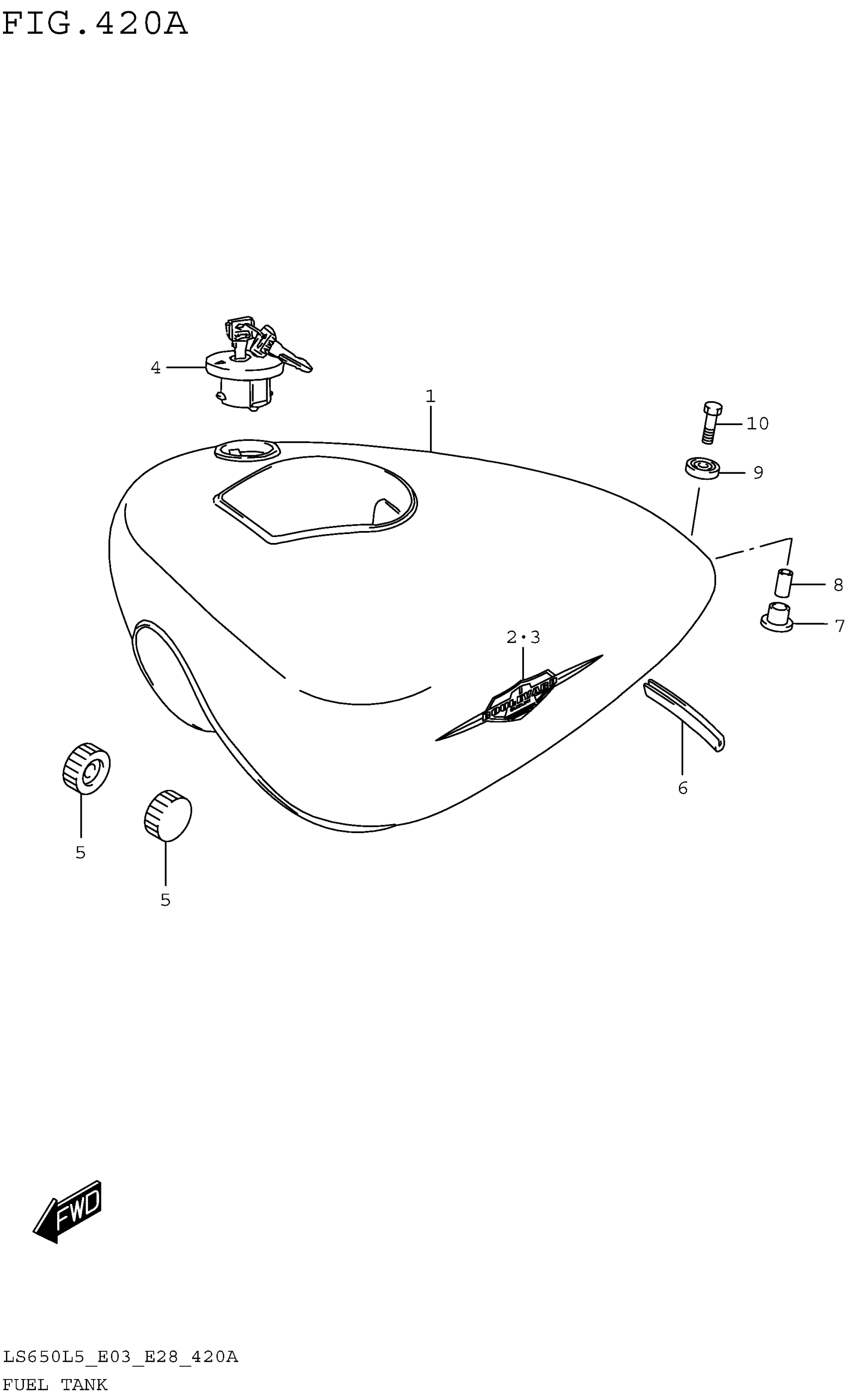

Suzuki LS650L5 (2015) FUEL TANK (LS650L5 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (GRAY)

44100-24C50-YWC

Unavailable

1

TANK ASSY, FUEL (RED)

44100-24C50-YYG

$902.27

2

EMBLEM, FULE TANK RH

68111-24C01

Unavailable

3

EMBLEM, FUEL TANK LH

68121-24C01

Unavailable

4

CAP SET, FUEL TANK

44200-24830

$125.55

5

CUSHION

09329-10016

$3.10

6

MOLDING, FUEL TANK REAR

44552-24B10

$11.18

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

8

SPACER (6.5X9X18)

09180-06271

$2.35

9

CUSHION

09320-14013

$2.11

10

BOLT

01500-0630B

$2.72
