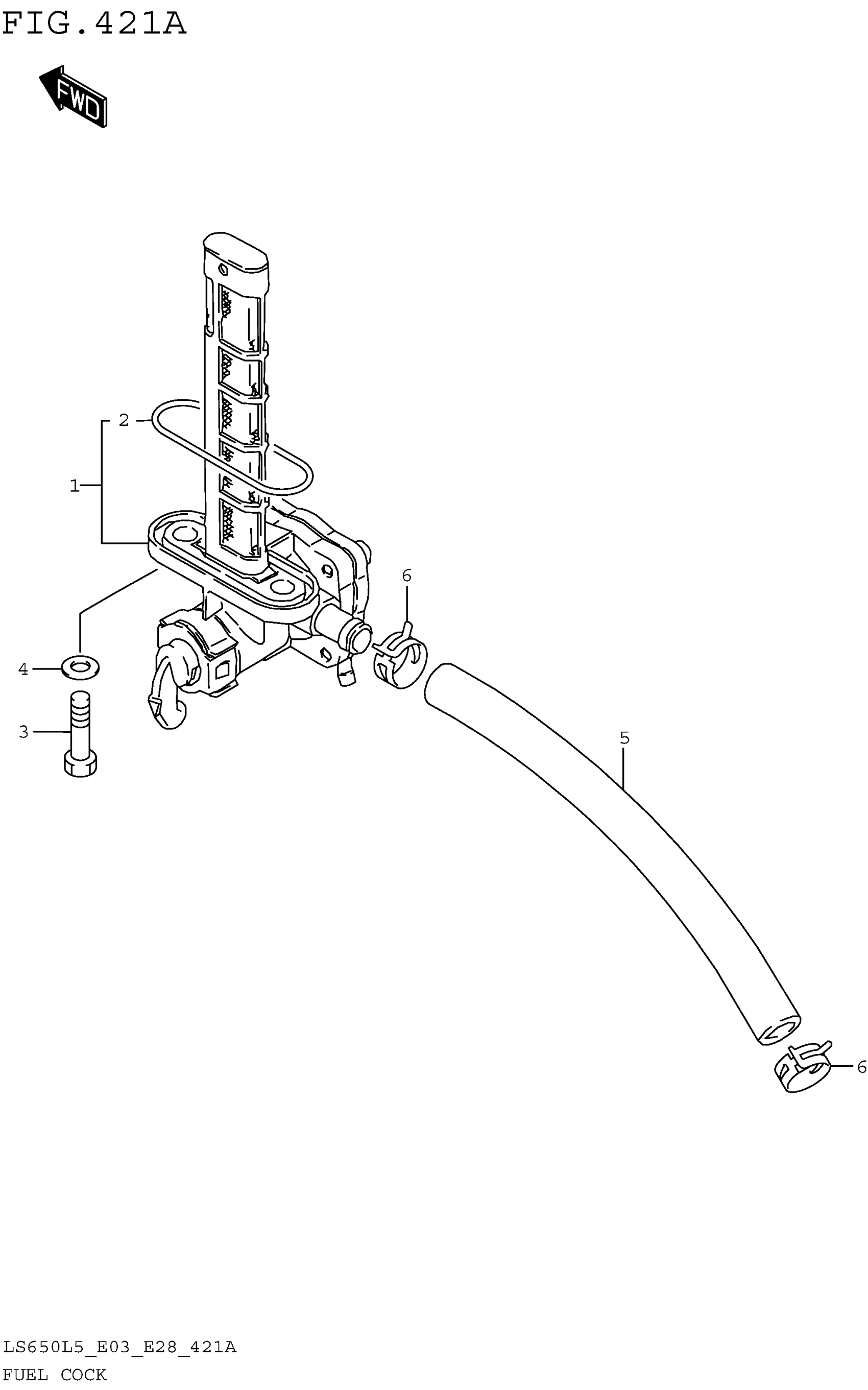

Suzuki LS650L5 (2015) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL This part replaces 44300-24B00.

44300-24B01

$85.57

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

5

HOSE (7X12X600) | L:600->140

09355-70129-600

$42.72

6

CLIP This part replaces 09401-11407.

09401-11415

$2.23
