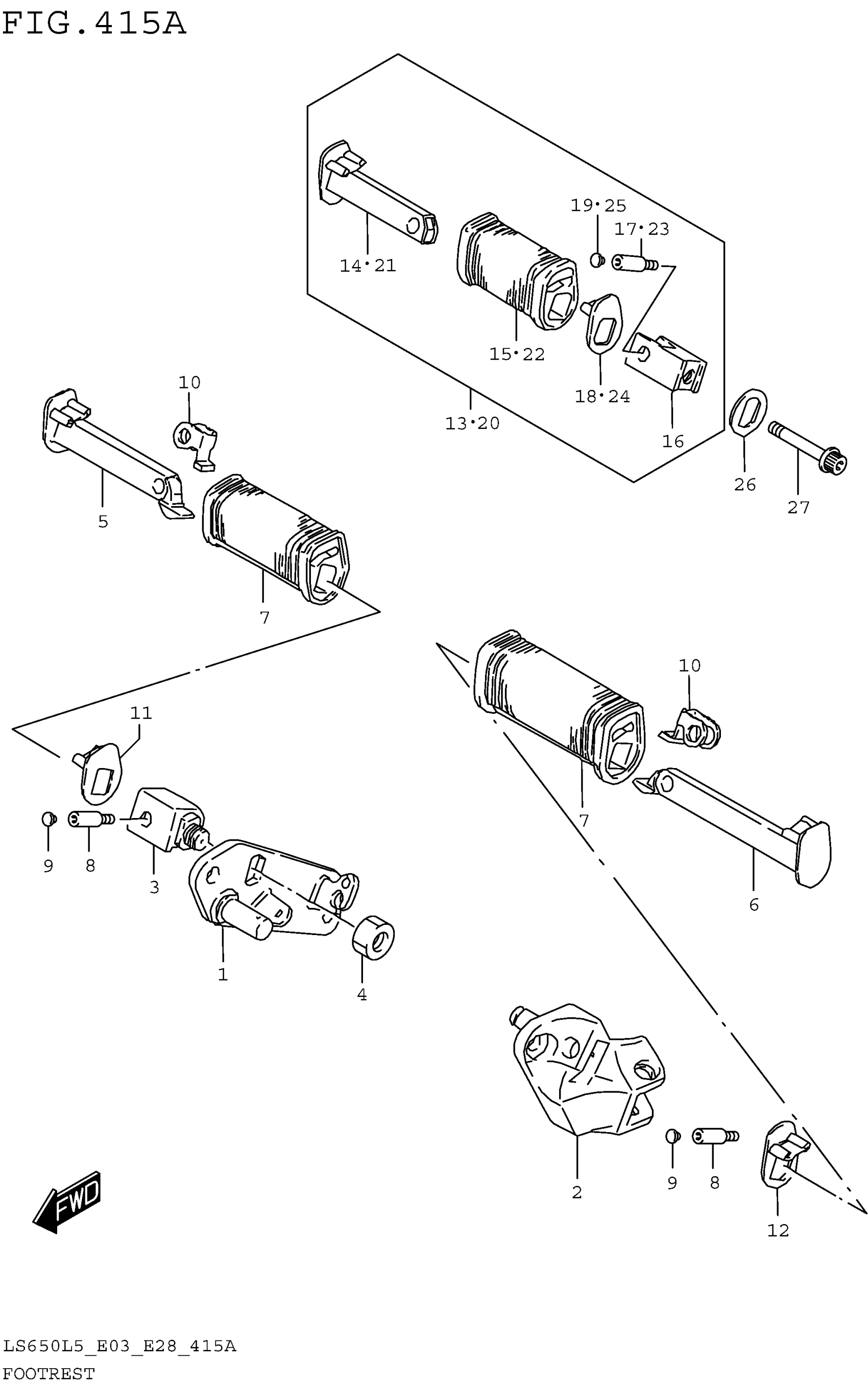

Suzuki LS650L5 (2015) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-24B00

$179.03

2

BRACKET, FRONT FOOTREST LH

43520-24B22

$305.47

3

HOLDER, FRONT FOOTREST RH

43517-24B01

$106.62

4

NUT | RH

09140-16029

$3.85

5

BAR, FRONT FOOTREST RH

43530-24B02

$57.08

6

BAR, FRONT FOOTREST LH

43540-24B02

$57.08

7

RUBBER, FRONT FOOTREST

43551-38A00

$16.13

8

BOLT (6X8)

09106-06100

$5.36

9

CAP, FRONT FOOTREST RUBBER BOLT

43576-24B00

$3.05

10

CUSHION, FRONT FOOTREST

43570-24B01

$8.07

11

WASHER, FRONT FOOTREST RH

43470-24B00

$6.52

12

WASHER, FRONT FOOTREST LH

43480-24B00

$6.52

13

FOOTREST ASSY, PILLION RH

43600-24B00

$127.37

14

BAR, PILLION FOOTREST RH

43610-24B01

$36.88

15

RUBBER, PILLION FOOTREST

43651-24B00

$21.77

16

HOLDER, PILLION FOOTREST

43621-24B10

Unavailable

17

BOLT (6X8)

09106-06100

$5.36

18

WASHER, PILLION FOOTREST RH

43570-38A00

Unavailable

19

CAP, PILLION FOOTREST BOLT

43576-24B00

$3.05

20

FOOTREST ASSY, PILLION LH

43700-24B00

$111.83

21

BAR, PILLION FOOTREST LH

43710-24B01

$35.98

22

RUBBER, PILLION FOOTREST

43651-24B00

$21.77

23

BOLT (6X8)

09106-06100

$5.36

24

WASHER, PILLION FOOTREST LH

43580-38A00

Unavailable

25

CAP, PILLION FOOTREST BOLT

43576-24B00

$3.05

26

WASHER, PILLION FOOTREST HOLDER

43622-24B00

$2.45

27

BOLT (10X45)

09106-10086

$6.30
