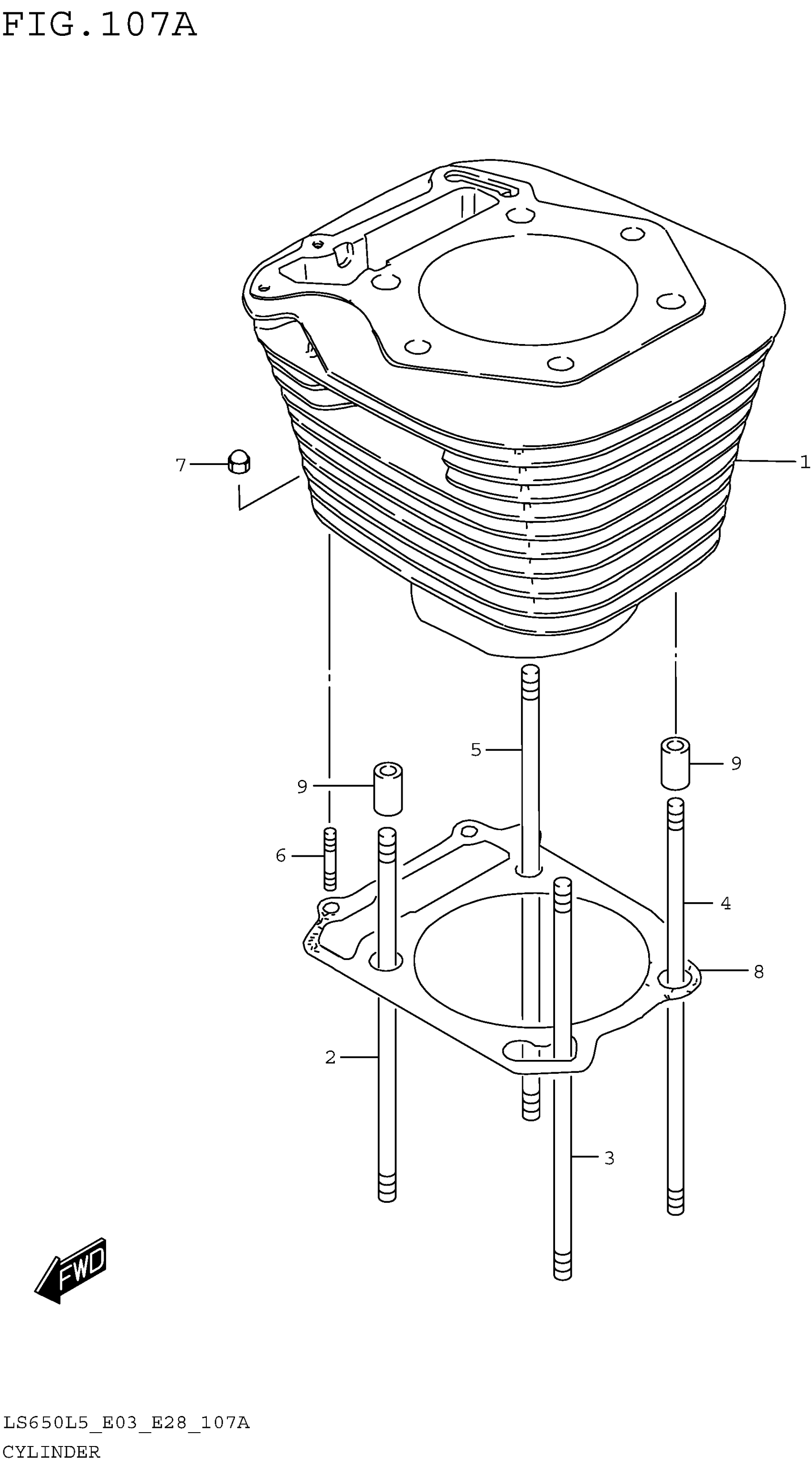

Suzuki LS650L5 (2015) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-24B10-0F0.

11210-24B11-0F0

$768.13

2

STUD BOLT | NO.1

09108-09001

$11.28

3

STUD BOLT | NO.2

09108-09002

$12.88

4

STUD BOLT | NO.3

09108-09003

$12.88

5

STUD BOLT | NO.4

09108-09004

$13.05

6

STUD BOLT

01421-0620A

$1.91

7

NUT

08313-20067

$2.42

8

GASKET, CYLINDER

11241-24B01-H17

$12.15

9

PIN

04211-13189

$2.19
