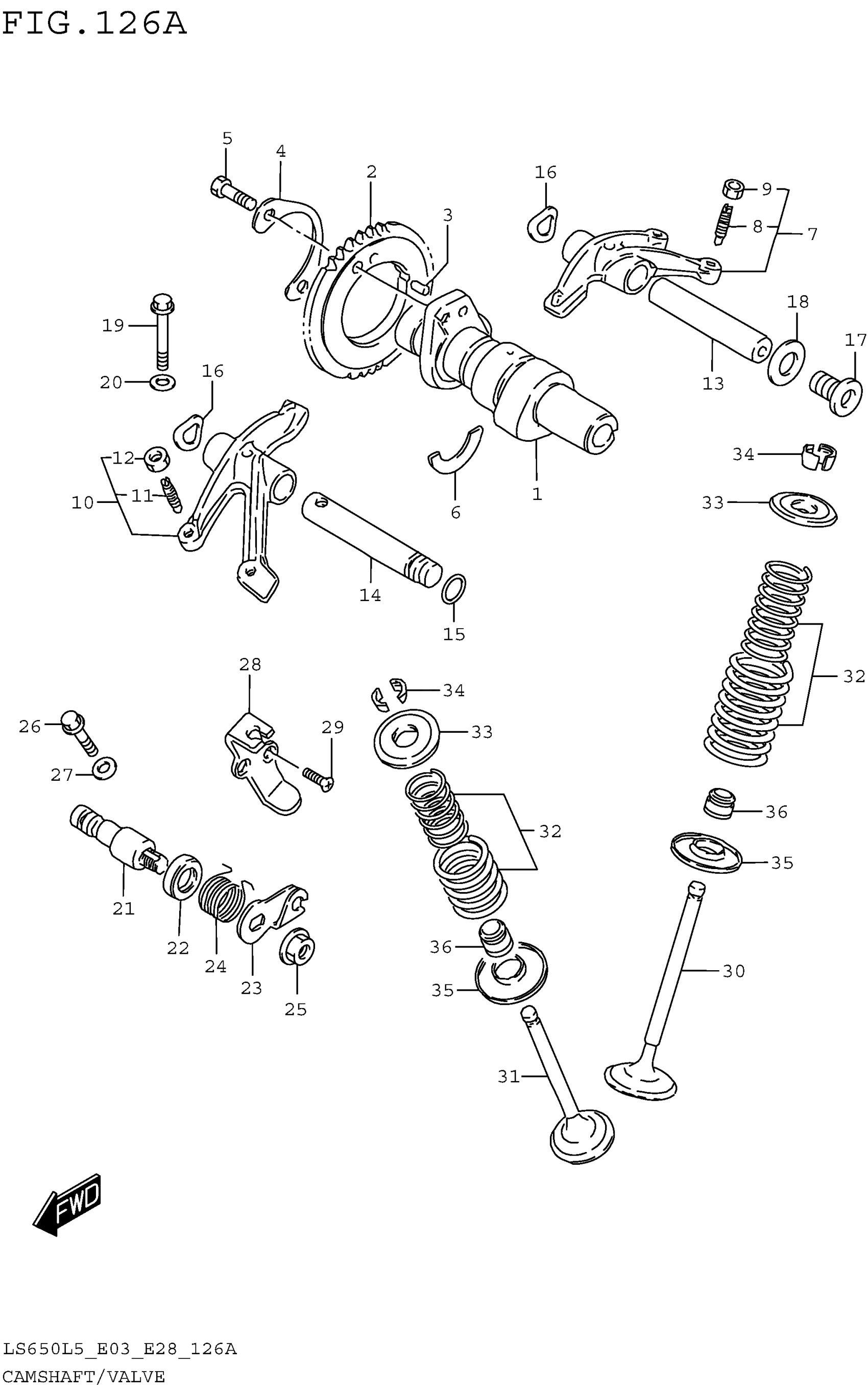

Suzuki LS650L5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-24B11

$260.68

2

SPROCKET, CAM SHAFT (NT:38)

12741-24B00

$54.75

3

PIN (5X12.9)

09261-05009

$1.78

4

WASHER, SPROCKET

12747-44001

$2.50

5

BOLT (6X16)

09111-06053

$4.77

6

C-RING

09390-25003

$2.48

7

ARM, INTAKE VALVE ROCKER

12840-24B10

$94.45

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, EXHAUST VALVE ROCKER

12850-24B10

$94.45

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, INTAKE VALVE ROCKER ARM | L:73

12861-12D00

$29.25

14

SHAFT, EXHAUST VALVE ROCKER ARM | L:78.5

12871-14A00

$24.87

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

18

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

19

BOLT

02162-0630B

Unavailable

20

GASKET (5.8X13X1.2)

09168-06023

$2.35

21

SHAFT, DECOMP LH

12941-24B01

Unavailable

22

OIL SEAL (10X20X6)

09282-10012

$7.98

23

LEVER, DECOMP SHAFT LH

12942-24B00

Unavailable

24

SPRING | LH

09448-17020

Unavailable

25

NUT

08316-1008B

$2.66

26

BOLT (6X16)

09103-06090

$2.00

27

GASKET (5.8X13X1.2)

09168-06023

$2.35

28

HOLDER, DECOMP CABLE LH

12944-24B00

Unavailable

29

SCREW

02122-0510B

Unavailable

30

VALVE, INTAKE

12911-24B01

$50.10

31

VALVE, EXHAUST

12912-24B01

$101.35

32

SPRING SET, VALVE

12920-37402

$18.02

33

RETAINER, VALVE SPRING

12931-45001

$8.12

34

COTTER, VALVE

12932-82000

$3.05

35

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

$3.60

36

OIL SEAL (7X14.4X9)

09289-07002

$7.98
