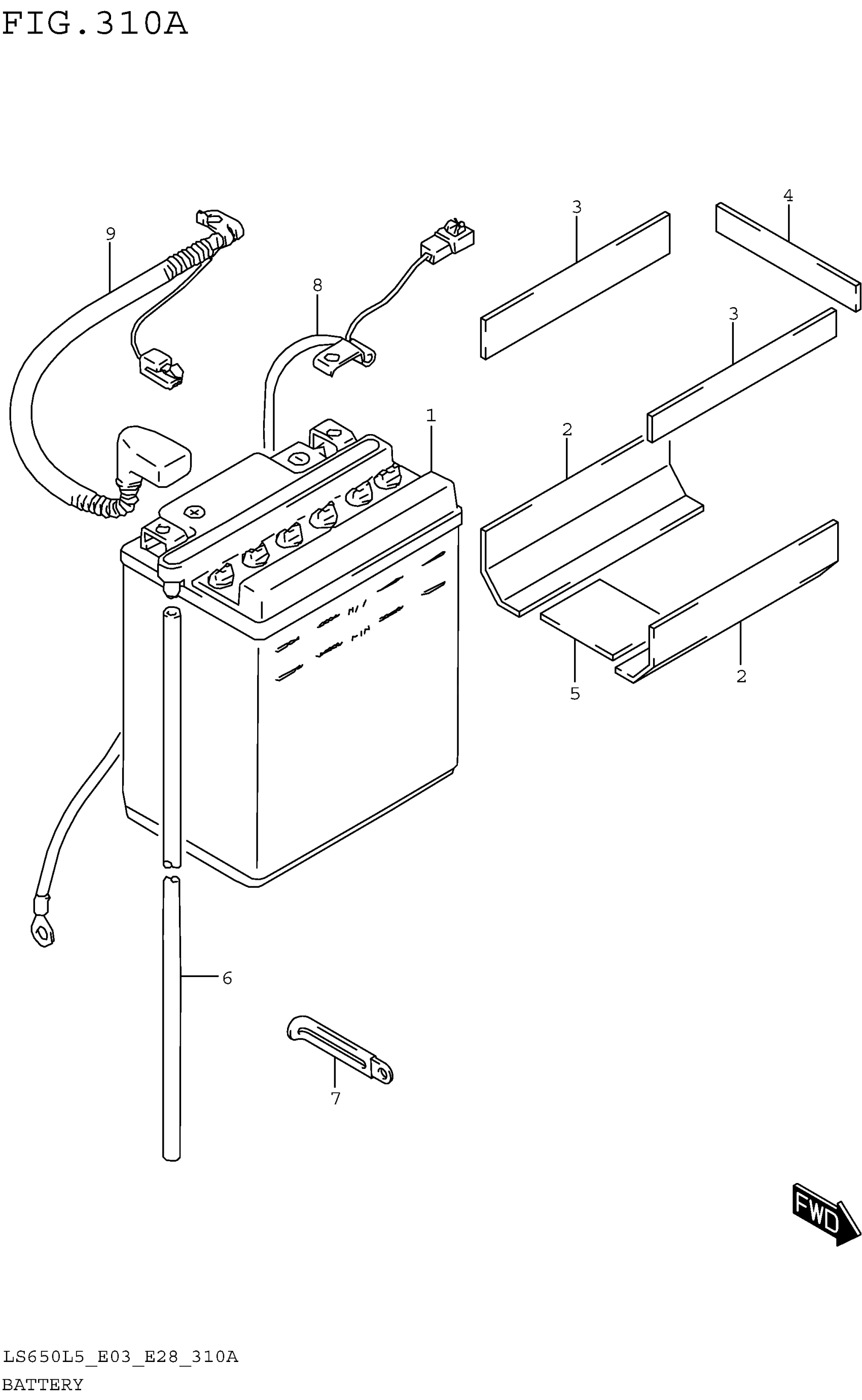

Suzuki LS650L5 (2015) BATTERY Diagram

#

Description

Price

1

BATTERY (YB14L-B2,12V,14.7AH)

33610-05A10

$95.65

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (115X50)

33651-37000

$4.48

3

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (20X90)

33651-37000

$4.48

4

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

5

PROTECTOR (50X50X5.0)

33652-20C00

$2.99

6

HOSE,BATTERY EX | L:780->400 This part replaces 33680-16A10.

33680-16A11

$6.78

7

CLAMP (L:45)

09404-06429

$1.83

8

LEAD WIRE, BATTERY (-)

33860-24B00

$22.65

9

LEAD WIRE, BATTERY (+)

33870-24B00

$23.73
