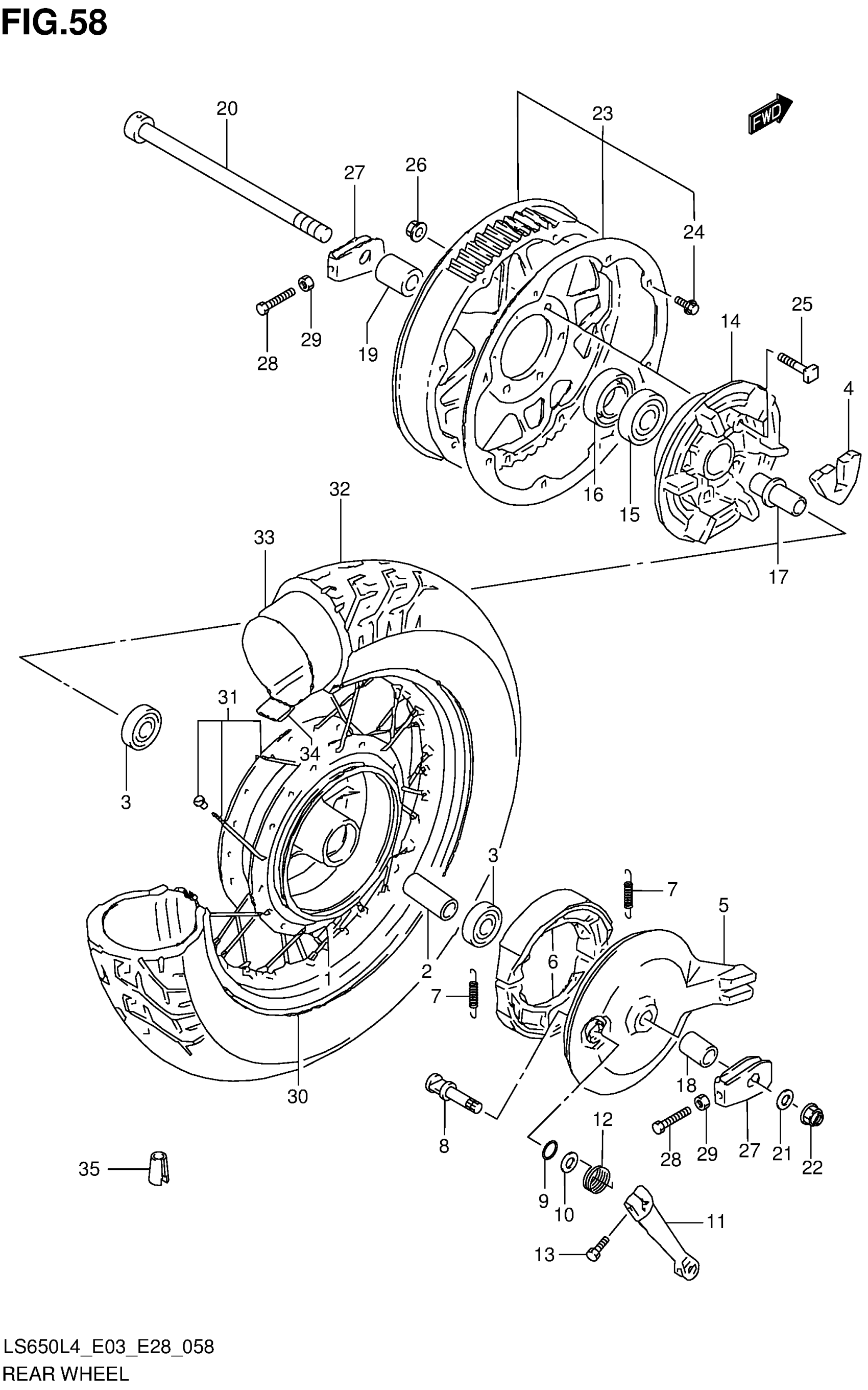

Suzuki LS650L4 (2014) REAR WHEEL Diagram

HUB, REAR WHEEL

64110-24B00

Unavailable

SPACER (17.5X25X70)

09180-17069

$23.93

BEARING

08143-63037

$22.58

ABSORBER, REAR HUB SHOCK

64651-31001

$11.19

PANEL, REAR BRAKE

64210-24B01

Unavailable

SHOE, REAR BRAKE

64400-44810

$54.85

SPRING, BRAKE SHOE

55420-30000

$4.48

CAM, REAR BRAKE

54440-08004

$27.62

O RING (D:2.4,ID:14.8)

09280-15003

$1.76

WASHER (15.5X24X1.6)

09160-15048

$2.56

LEVER, REAR BRAKE CAM

64451-24B00

$58.13

SPRING

09448-33006

$9.23

BOLT

01570-0625B

$2.71

DRUM, REAR SPROCKET

64611-31003

Unavailable

BEARING (25X62X17)

09262-25073

$25.92

OIL SEAL (33X62X7)

09285-33001

$13.27

RETAINER, REAR SPROCKET DRUM

64733-31300

$23.63

SPACER (17X28X22.3) | RH

09180-17082

$10.45

SPACER (17X33X35.3) | LH

09180-17083

$17.18

AXLE, REAR

64711-24B02

Unavailable

WASHER (17X30X3.2)

09160-17050

$2.45

NUT

09159-16002

$4.77

SPROCKET, REAR (NT:68)

64510-24B10

$611.63

BOLT

01550-0612B

$2.39

BOLT (10X40)

09105-10005

Unavailable

NUT

08319-3110B

$3.87

ADJUSTER, BELT

61410-24B01

$20.45

BOLT (8X43)

09104-08027

$5.32

NUT

08310-00087

$2.13

RIM, REAR WHEEL (15 M/CXMT2.75)

65311-24B01

Unavailable

SPOKE SET, REAR WHEEL

65320-24B00

$103.83

TIRE,RR,(140/80 This part replaces 65100-24B02.

65100-24B03

$251.05

TUBE ASSY,WHEEL This part replaces 65200-26F10.

65200-26F11

$52.65

PROTECTOR, WHEEL INNER TUBE

65261-26F10

$5.64

BALANCER WHEEL (15G) | 15G

55411-26G00

$7.73

BALANCER WHEEL (30G) | 30G

55413-41F00

$7.50
