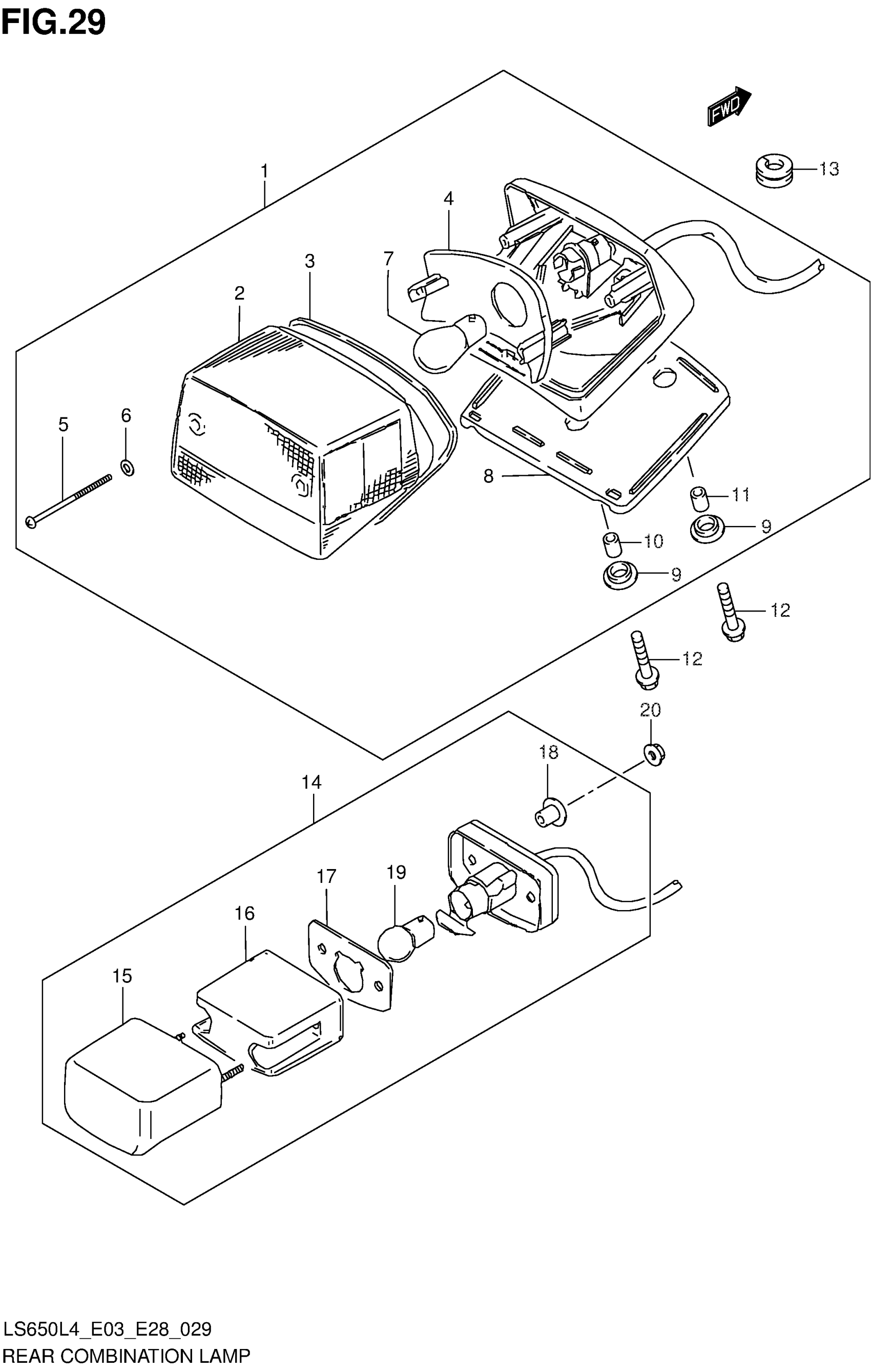

Suzuki LS650L4 (2014) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-24B40

$324.06

2

LENS

35712-24B30

$53.98

3

GASKET

35713-24B00

Unavailable

4

REFLECTOR

35714-38A00

Unavailable

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

BULB (12V,21/5W)

09471-12128

$6.73

8

CUSHION

35765-24B00

Unavailable

9

CUSHION

35764-26470

$3.37

10

SPACER

35766-40640

Unavailable

11

SPACER

35766-24B40

Unavailable

12

BOLT (6X25)

09116-06093

$2.43

13

GROMMET

09308-09004

Unavailable

14

LAMP ASSY, LICENSE

35910-24B50

$119.34

15

COVER, LENS

35917-17C10

$77.50

16

LENS

35912-38A30

$20.45

17

GASKET

35913-38A30

$3.37

18

SPACER

35966-24B40

Unavailable

19

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

20

NUT

08316-1004B

$3.15
