Description

Price

1

HUB, FRONT

54111-24B01

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER (15.3X21.7X56)

09180-15074

$13.38

4

AXLE, FRONT

54711-24B01

$63.48

5

SPACER, FRONT AXLE RH

54740-24B00

$21.77

6

SPACER, FRONT AXLE LH

54750-24B00

$24.20

7

DISC, FRONT BRAKE

59211-24B10

$357.43

8

BOLT (8X25.5)

09106-08049

$4.62

9

TIRE,FRONT 100/ This part replaces 55100-24B02.

55100-24B03

$192.28

10

TUBE This part replaces 55200-44610.

55200-44611

$33.73

11

PROTECTOR, WHEEL INNER TUBE FRONT

55261-15020

$3.15

12

RIM, FRONT WHEEL (WM2.15X19)

55311-24B00

$318.75

13

SPOKE SET, FRONT WHEEL

55320-24B10

$80.52

14

BALANCER WHEEL (15G) | 15G

55411-26G00

$7.73

14

BALANCER WHEEL (30G) | 30G

55413-41F00

$7.50

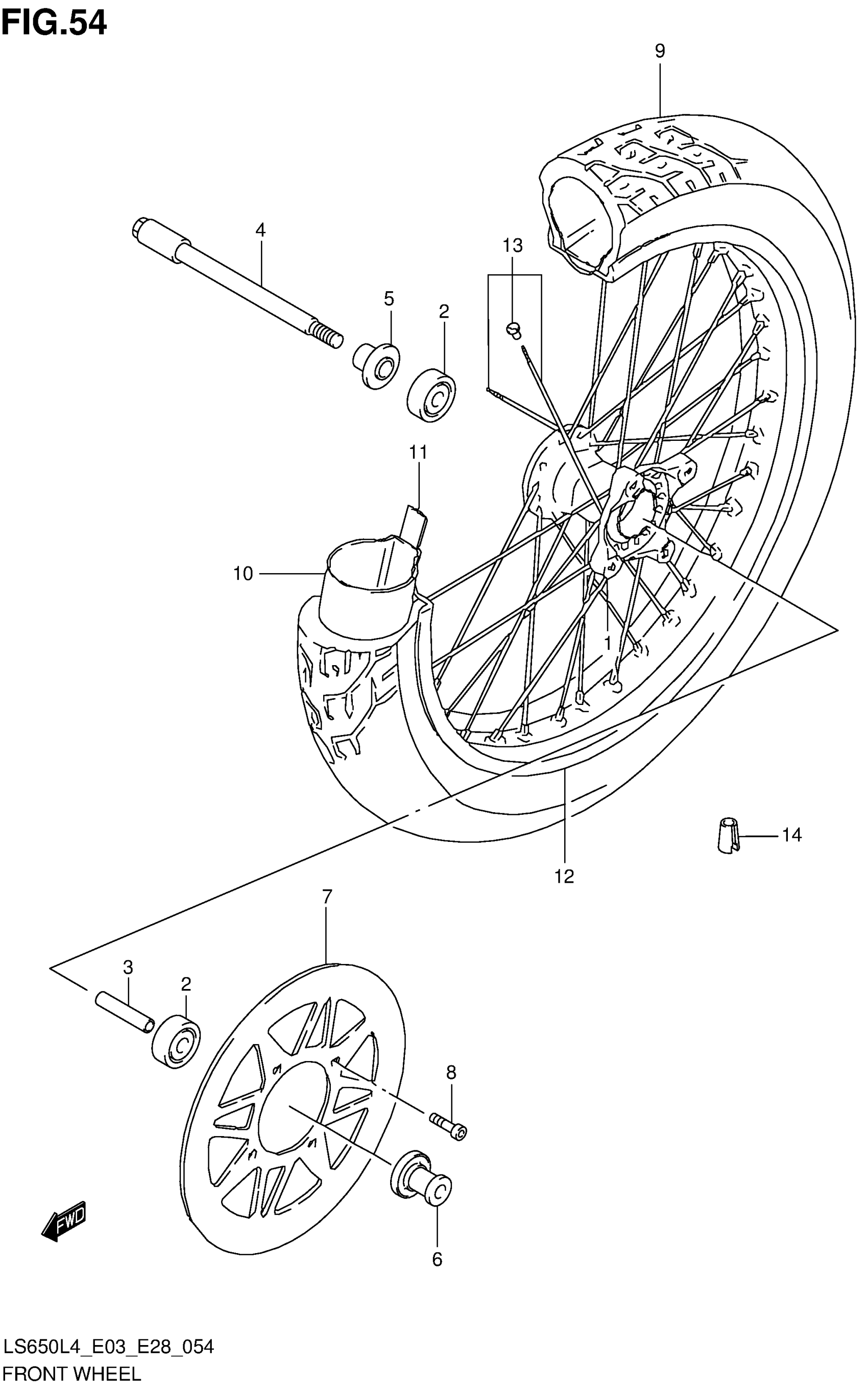

Suzuki LS650L4 (2014) FRONT WHEEL Diagram
