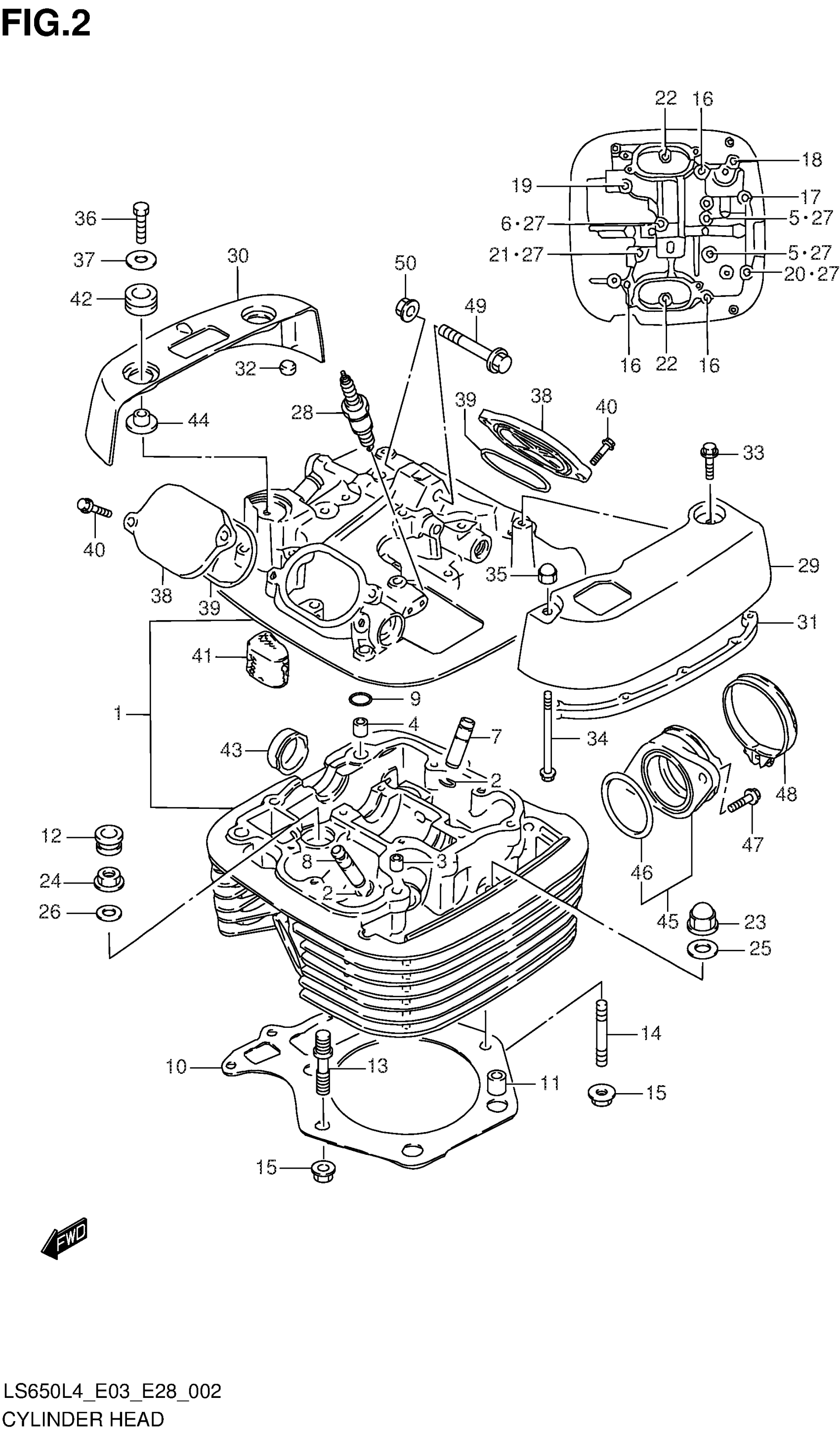

Suzuki LS650L4 (2014) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-24B20

Unavailable

2

SNAP RING

09381-10003

$2.47

3

PIN (8X11)

09206-08001

$1.78

4

PIN (11X14) This part replaces 09206-11011.

09206-11004

$5.36

5

BOLT (6X60)

09103-06064

$2.12

6

BOLT (6X70)

09103-06103

$2.53

7

GUIDE, VALVE IN (OS:0.3) | OPT

11115-44B70

$40.73

8

GUIDE, VALVE EX (OS:0.3) | OPT

11115-37470

$40.73

9

O RING, CYLINDER HEAD COVER

11178-24B00

$2.33

10

GASKET, CYLINDER HEAD

11141-24B03

$48.93

11

PIN

04211-13189

$2.19

12

CAP, CYLINDER HEAD SEAL

11145-37401

$11.64

13

STUD BOLT

09108-08205

$14.43

14

STUD BOLT (8X31)

09108-08206

$2.92

15

NUT

08316-1008A

$2.45

16

BOLT (6X39)

09103-06026

$1.98

17

BOLT (6X125)

09103-06033

$3.91

18

BOLT (6X115)

09103-06052

$4.68

19

BOLT (6X60)

09103-06064

$2.12

20

BOLT (6X130)

09103-06085

$4.60

21

BOLT (6X55)

09103-06102

$2.10

22

BOLT

01550-0625A

$1.97

23

NUT

09159-09003

$7.35

24

NUT

09159-09004

$2.30

25

.GASKET (10.2X20X2.3)

09168-10031

$2.03

26

.GASKET (10.2X20X2.3)

09168-10031

$2.03

27

GASKET (5.8X13X1.2)

09168-06023

$2.35

28

SPARK PLUG (DPR8EA-9) | NGK

09482-00334

$3.03

28

SPARK PLUG (X24EPR-U9) | DENSO

09482-00335

$5.36

28

SPARK PLUG (DPR7EA-9) | OPT NGK

09482-00354

$3.32

29

CAP, HEAD COVER LH

11171-24B04

Unavailable

30

CAP, HEAD COVER RH

11172-24B04

Unavailable

31

CUSHION, LH CAP

11272-24B01

$9.23

32

CUSHION, RH CAP

11273-24B00

$4.52

33

BOLT | LH, NO.2

01550-0620A

$1.97

34

BOLT | LH, NO.1

01550-0665A

$3.16

35

NUT

08313-2006A

$1.97

36

BOLT | RH

01500-0625A

$1.78

37

WASHER (6.5X24X1.6)

09160-06134

$1.91

38

CAP, INSPECTION

11175-24B20

Unavailable

39

O RING (D:2.4,ID:23)

09280-60004

$3.76

40

BOLT

01550-0620A

$1.97

41

SEPARATOR, OIL BRTHR COVER

11186-24B02

$12.17

42

CUSHION

09320-13015

$2.85

43

PLUG (OD:30)

09241-30008

$7.05

44

BUSH

09301-06007

$4.68

45

PIPE, INTAKE

13101-14A10

$45.89

46

O RING (D:2.4,ID:45.7)

09280-46002

$10.49

47

SCREW

02112-1620B

$2.62

48

CLAMP

09402-58208

$5.36

49

.BOLT (8X55)

09103-08339

$3.49

50

NUT

08319-3108A

$2.32
