Description

Price

1

SPEEDOMETER (MILE/KILO)

34110-24C41

Unavailable

2

CUSHION, METER

34288-24B80

$17.37

3

BOX, METER GEAR

34131-19B00

Unavailable

4

SCREW

02112-04087

$1.49

5

LOCK WASHER

08321-0104A

$1.84

6

HOOD, METER

34151-24B81

$137.02

7

BRACKET, METER

34111-24B80

Unavailable

8

SCREW

02112-04087

$1.49

9

LOCK WASHER

08321-0104A

$1.84

10

CUSHION

34189-24B80

$4.87

11

SOCKET, METER

34170-24B20

Unavailable

12

BULB (BULB,12V3.4W,T6.5)

09471-12103

$3.83

13

.BULB (12V1.7W)

09471-12108

$3.42

14

SPRING

09440-11022

$2.53

15

WASHER

09160-05048

$2.02

16

NUT

08361-1505B

$2.38

17

CABLE,SPEEDOMET This part replaces 34910-24B00.

34910-24B01

$99.25

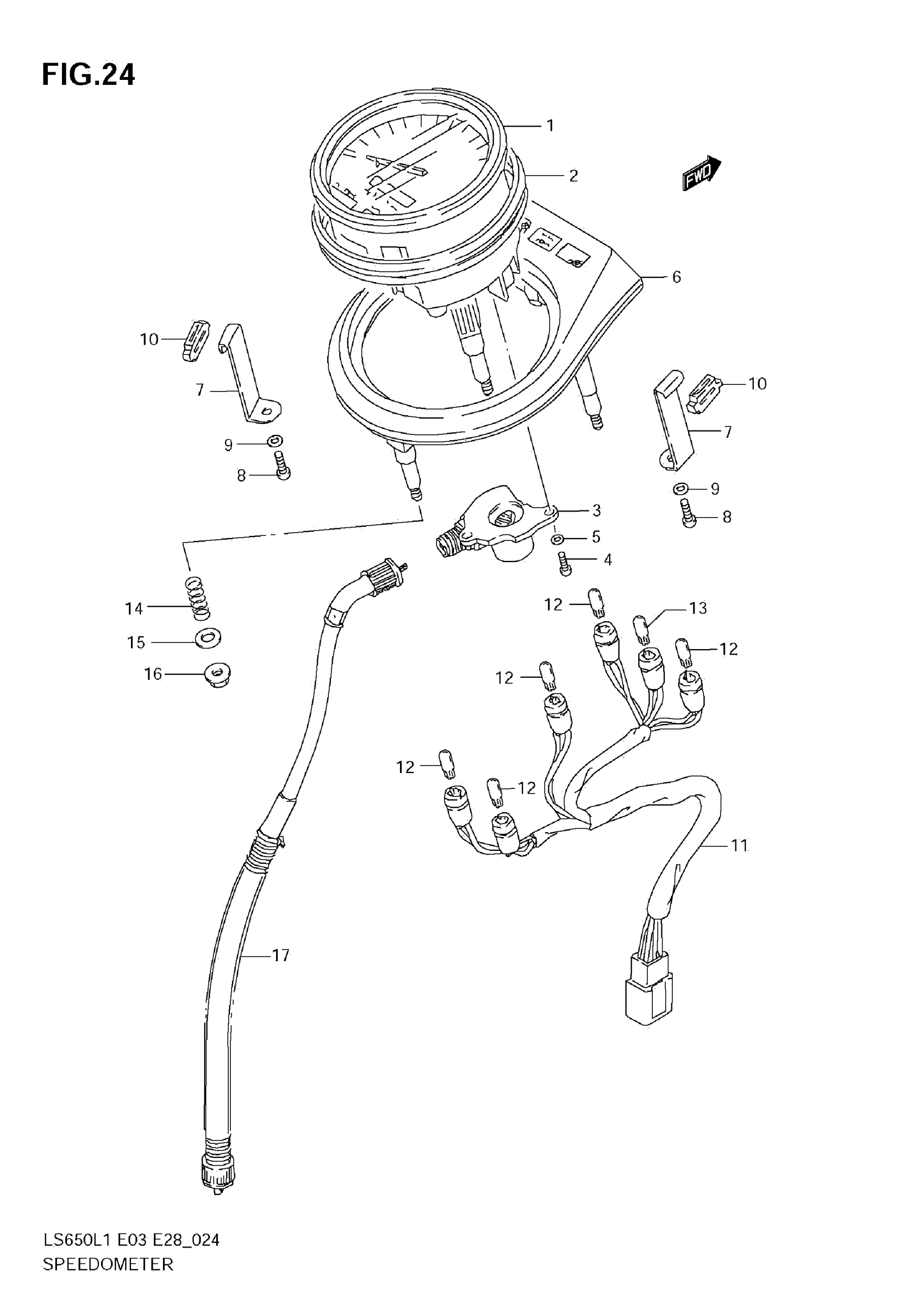

Suzuki LS650L1 (2011) SPEEDOMETER (LS650L1 E3) Diagram

SPEEDOMETER (MILE/KILO)

CUSHION, METER

BOX, METER GEAR

SCREW

LOCK WASHER

HOOD, METER

BRACKET, METER

SCREW

LOCK WASHER

CUSHION

SOCKET, METER

BULB (BULB,12V3.4W,T6.5)

.BULB (12V1.7W)

SPRING

WASHER

NUT

CABLE,SPEEDOMET This part replaces 34910-24B00.
