Description

Price

1

SPEEDOMETER (KILO)

34110-24C31

Unavailable

2

CUSHION, METER

34288-24B80

$17.37

3

BOX, METER GEAR

34131-19B00

Unavailable

4

SCREW

02112-04087

$1.49

5

LOCK WASHER

08321-0104A

$1.84

6

HOOD, METER

34151-24B51

Unavailable

7

BRACKET, METER

34111-24B80

Unavailable

8

SCREW

02112-04087

$1.49

9

LOCK WASHER

08321-0104A

$1.84

10

CUSHION

34189-24B80

$4.87

11

SOCKET, METER

34170-24B20

Unavailable

12

BULB (BULB,12V3.4W,T6.5)

09471-12103

$3.83

13

.BULB (12V1.7W)

09471-12108

$3.42

14

SPRING

09440-11022

$2.53

15

WASHER

09160-05048

$2.02

16

NUT

08361-1505B

$2.38

17

CABLE,SPEEDOMET This part replaces 34910-24B00.

34910-24B01

$99.25

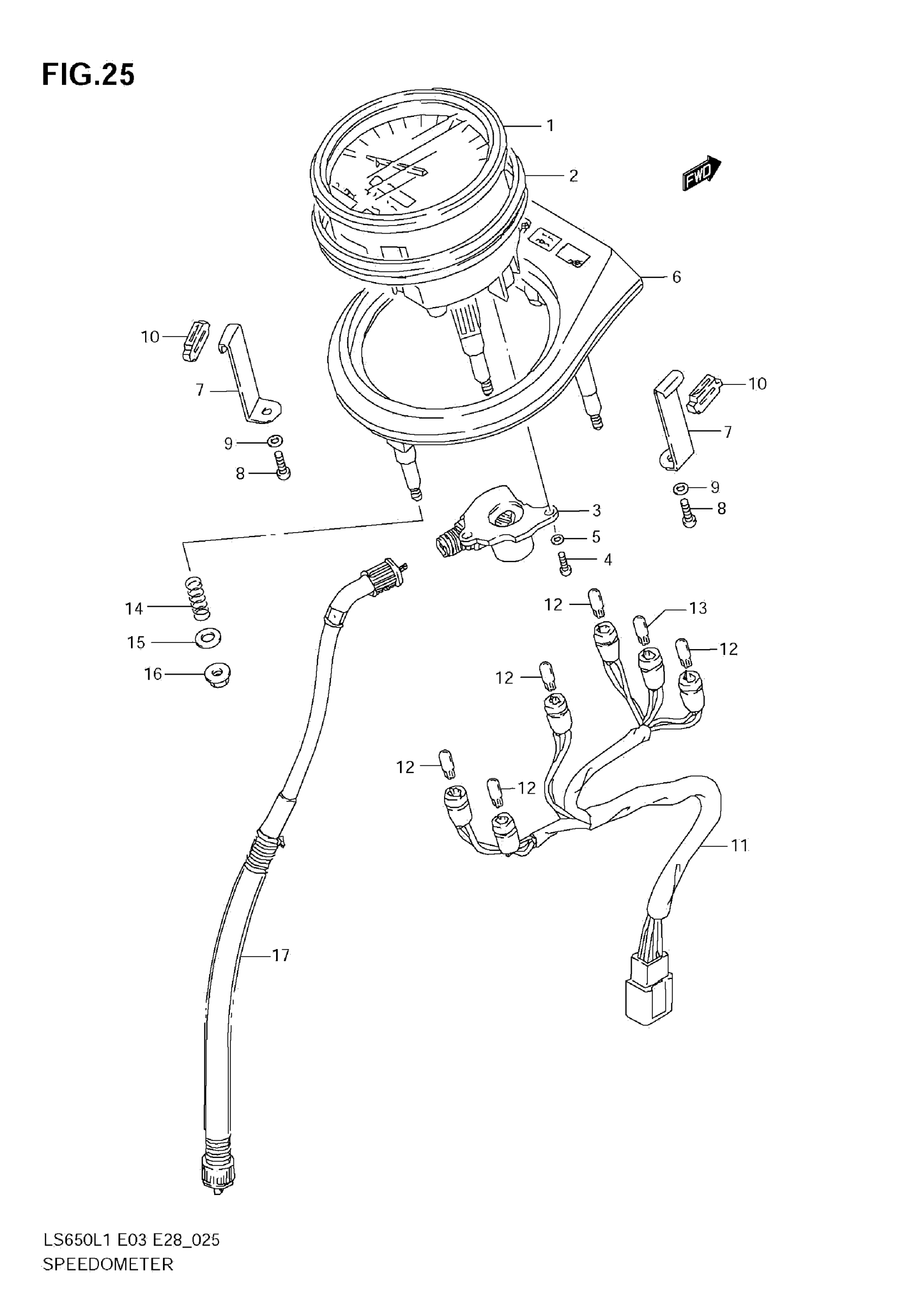

Suzuki LS650L1 (2011) SPEEDOMETER (LS650L1 E28) Diagram

SPEEDOMETER (KILO)

CUSHION, METER

BOX, METER GEAR

SCREW

LOCK WASHER

HOOD, METER

BRACKET, METER

SCREW

LOCK WASHER

CUSHION

SOCKET, METER

BULB (BULB,12V3.4W,T6.5)

.BULB (12V1.7W)

SPRING

WASHER

NUT

CABLE,SPEEDOMET This part replaces 34910-24B00.
