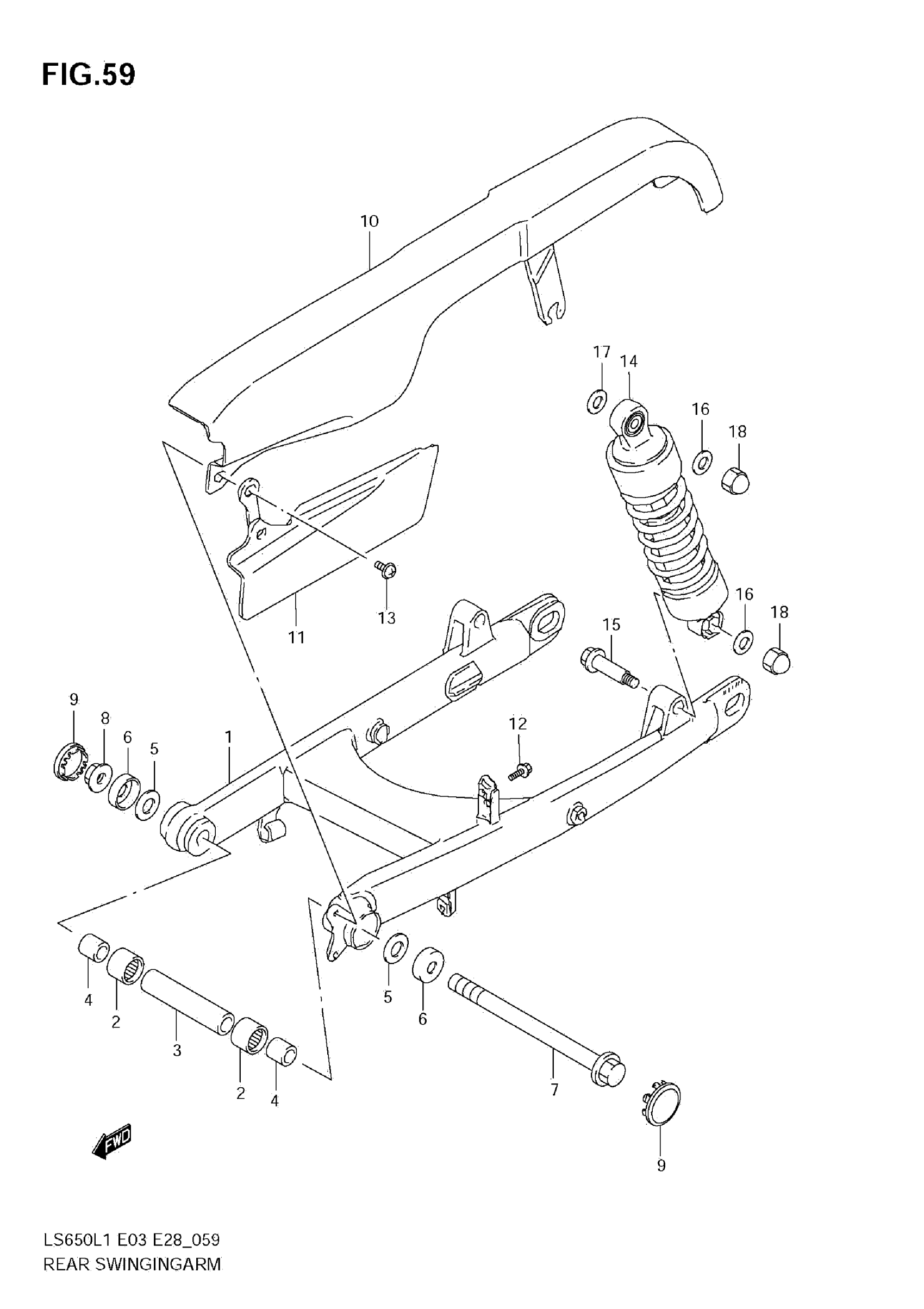

Suzuki LS650L1 (2011) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR (BLACK)

61100-24B03-019

Unavailable

2

BEARING (22X29X30)

09263-22017

$22.58

3

SPACER, REAR SWINGING ARM PIVOT CENTER

61282-24B01

Unavailable

4

SPACER, REAR SWINGING ARM PIVOT

61251-24B00

$20.45

5

THRUST WASHER

08211-14341

$3.42

6

DUST SEAL, REAR SWINGING ARM PIVOT

61262-45002

$7.97

7

SHAFT, REAR SWINGING ARM PIVOT

61211-24B00

Unavailable

8

NUT

08319-3114A

$9.66

9

CAP, REAR SWINGING ARM PIVOT

61222-38A01

$13.35

10

BELT CASE, UPPER

61310-24B02

$269.83

11

BELT CASE, LOWER

61320-24B02

Unavailable

12

BOLT

01550-0612B

$2.39

13

SCREW

02112-7612B

$2.85

14

SHOCK ABSORBER ASSY, REAR

62100-24B00

$357.43

15

BOLT, REAR SHOCK ABSORBER LOWER

62313-24B00

$10.17

16

WASHER (10.5X28X2.3)

09160-10035

$1.78

17

WASHER (14.5X29X2.3)

09160-14009

$2.82

18

NUT

08313-10107

$2.50
