2011 Suzuki LS650L1 Rear Combination Lamp Diagram

← All diagrams

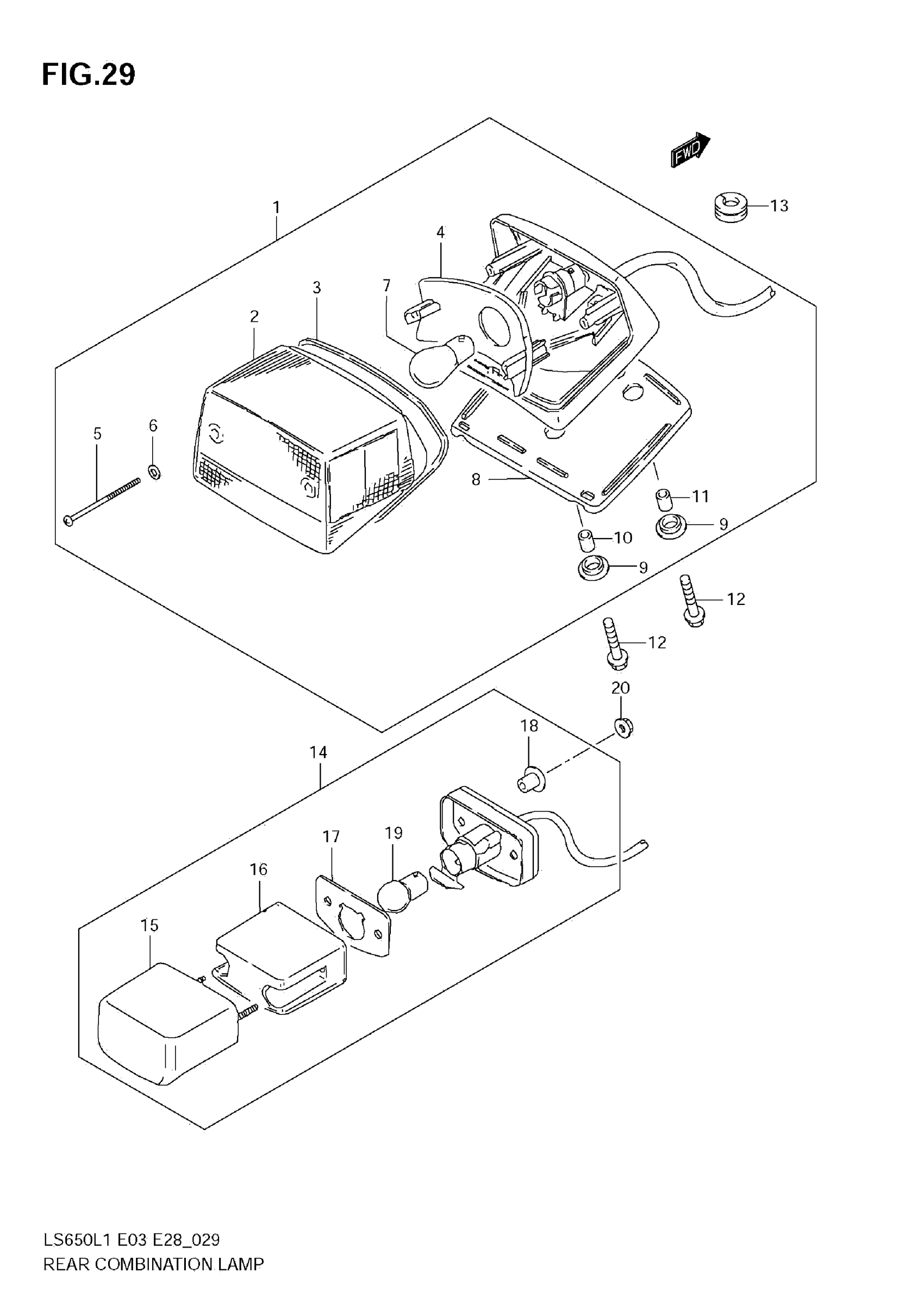

Find the part on the Rear Combination Lamp diagram for your 2011 Suzuki LS650L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LS650L1 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION

35710-24B40

1
Out of stock

2

LENS

35712-24B30

1
Out of stock

3

GASKET

35713-24B00

1
Out of stock

4

REFLECTOR

35714-38A00

1
Out of stock

5

SCREW

35723-44130

2
Out of stock

6

GASKET

35627-43010

2

$2.65

In stock

7

BULB (BULB,12V21/5W)

09471-12128

1
Out of stock

8

CUSHION

35765-24B00

1
Out of stock

9

CUSHION

35764-26470

3
Out of stock

10

SPACER

35766-40640

1
Out of stock

11

SPACER

35766-24B40

2
Out of stock

12

BOLT (6X25)

09116-06093

3
Out of stock

13

GROMMET

09308-09004

1
Out of stock

14

LAMP ASSY, LICENSE

35910-24B50

1
Out of stock

15

COVER, LENS

35917-17C10

1
Out of stock

16

LENS

35912-38A30

1
Out of stock

17

GASKET

35913-38A30

1
Out of stock

18

SPACER

35966-24B40

2
Out of stock

19

1

$2.55

In stock

20

NUT

08316-1004B

2
Out of stock
