Partiron

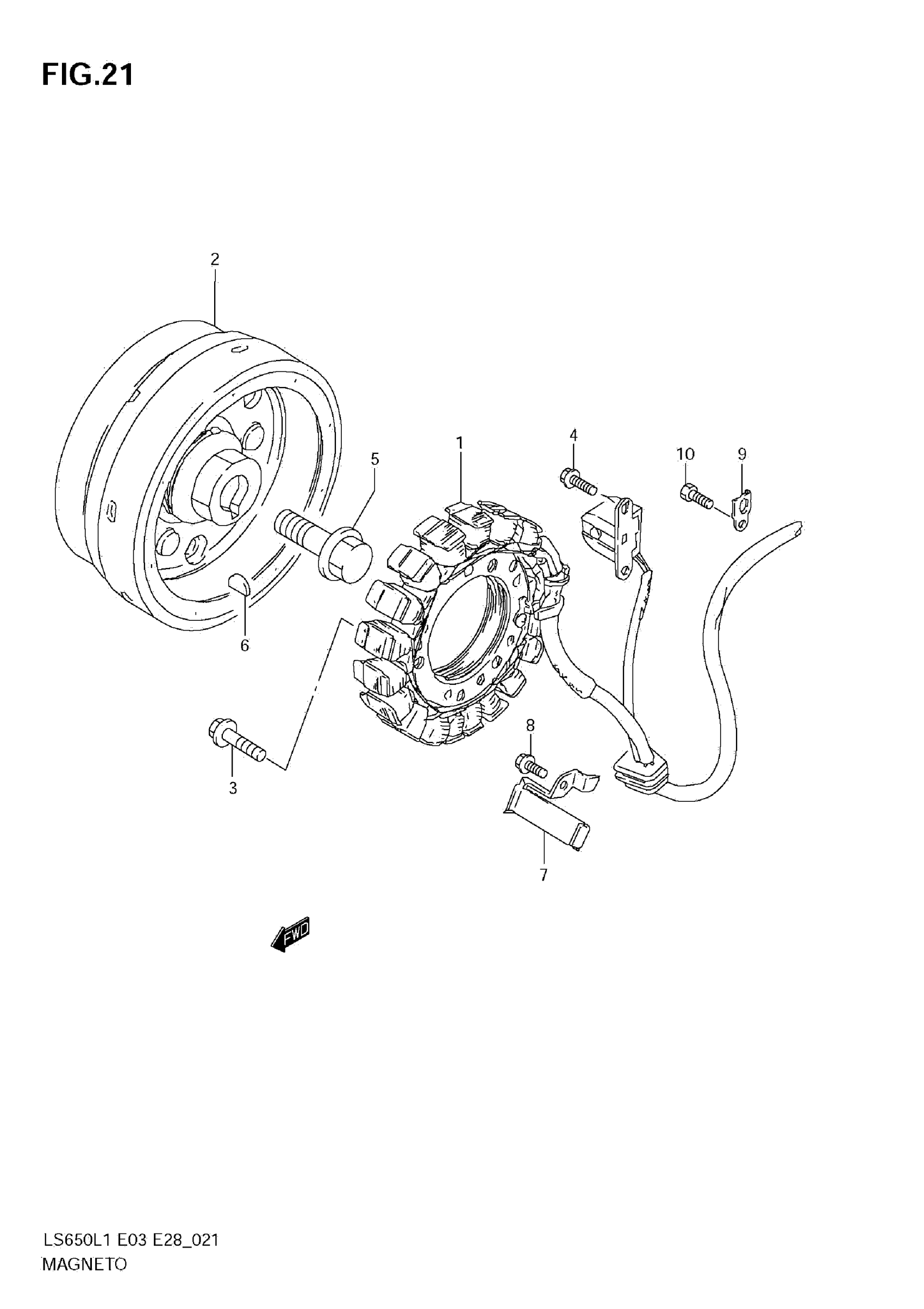

Suzuki LS650L1 (2011) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-24B02

$784.48

2

ROTOR

32102-24B10

Unavailable

3

BOLT

01547-0625B

$2.43

4

BOLT

01547-0510B

$3.22

5

BOLT (14X43)

09103-14001

$12.85

6

KEY

09420-05007

$5.00

7

CLAMP, LEAD WIRE NO.1

32371-24B00

Unavailable

8

BOLT

01547-0510B

$3.22

9

CLAMP, LEAD WIRE NO.2

31497-45000

$2.17

10

BOLT (5X10)

09100-05019

$2.10
