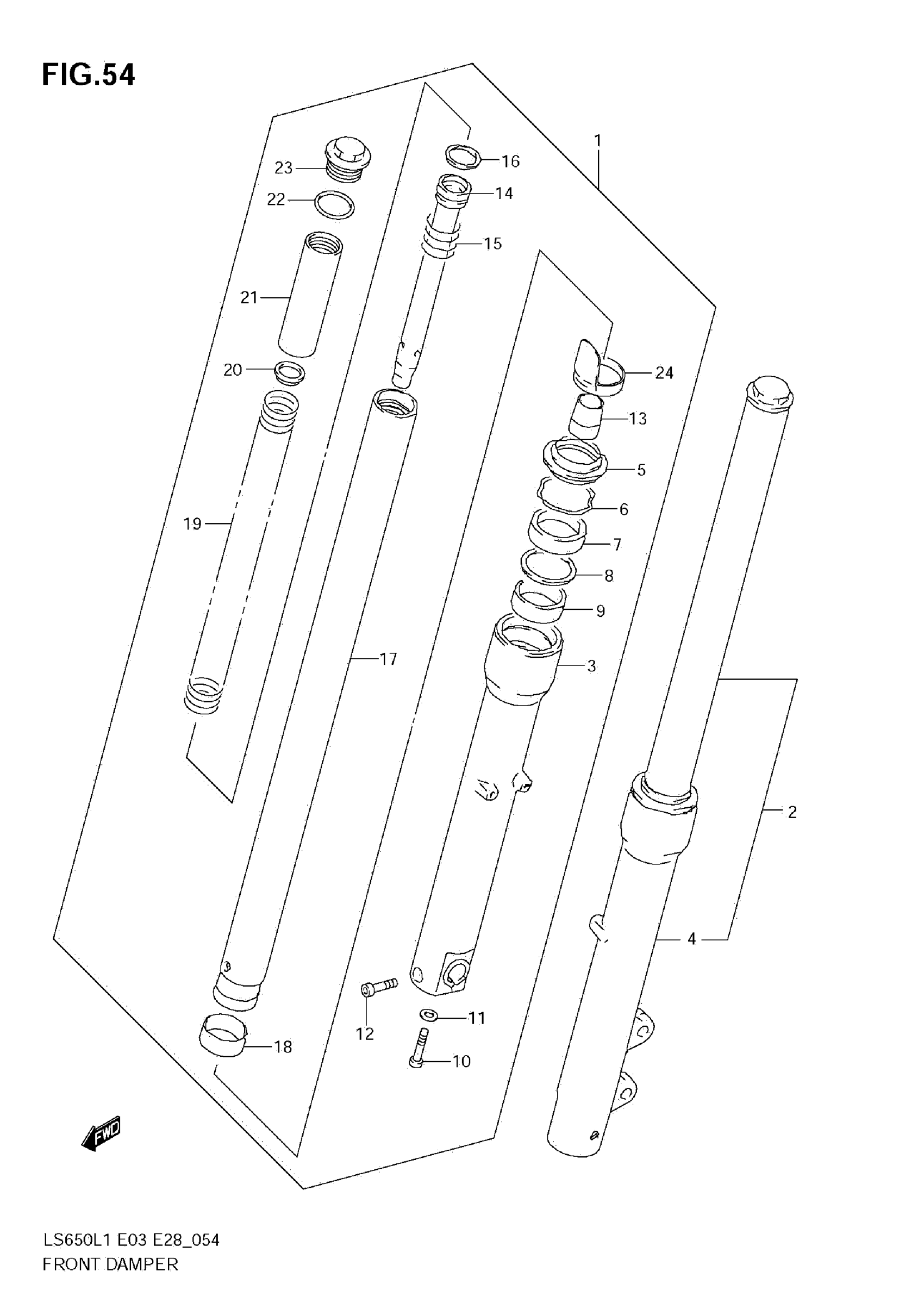

Suzuki LS650L1 (2011) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-24B50

Unavailable

2

DAMPER ASSY, FRONT FORK LH

51104-24B50

Unavailable

3

TUBE, OUTER RH

51130-24B50

Unavailable

4

TUBE, OUTER LH

51140-24B50

Unavailable

5

SEAL, DUST

51173-20A00

$16.13

6

RING, OIL SEAL STOPPER

51156-40301

$5.05

7

OIL SEAL

51153-20A00

$19.00

8

WASHER

51158-14100

$3.71

9

METAL, SLIDE

51167-13A00

$9.69

10

BOLT, FORK CYLINDER

51147-16510

$4.34

11

GASKET

51148-41310

$2.26

12

BOLT

07130-08407

$3.14

13

PIECE, OIL LOCK

51195-24B01

Unavailable

14

CYLINDER

51146-24B01

Unavailable

15

SPRING, REBOUND

51177-49440

Unavailable

16

RING, PISTON

51196-49440

Unavailable

17

TUBE, INNER

51120-24B01

$392.77

18

PISTON

51121-14100

$14.76

19

SPRING

51171-24B00

Unavailable

20

WASHER

51172-45C00

$6.70

21

SPACER, SPRING

51176-24B01

$12.32

22

O RING

51117-40300

$3.09

23

CAP

51351-24B00

Unavailable

24

PROTECTOR, FRONT FORK

51201-01DA0

$24.33
