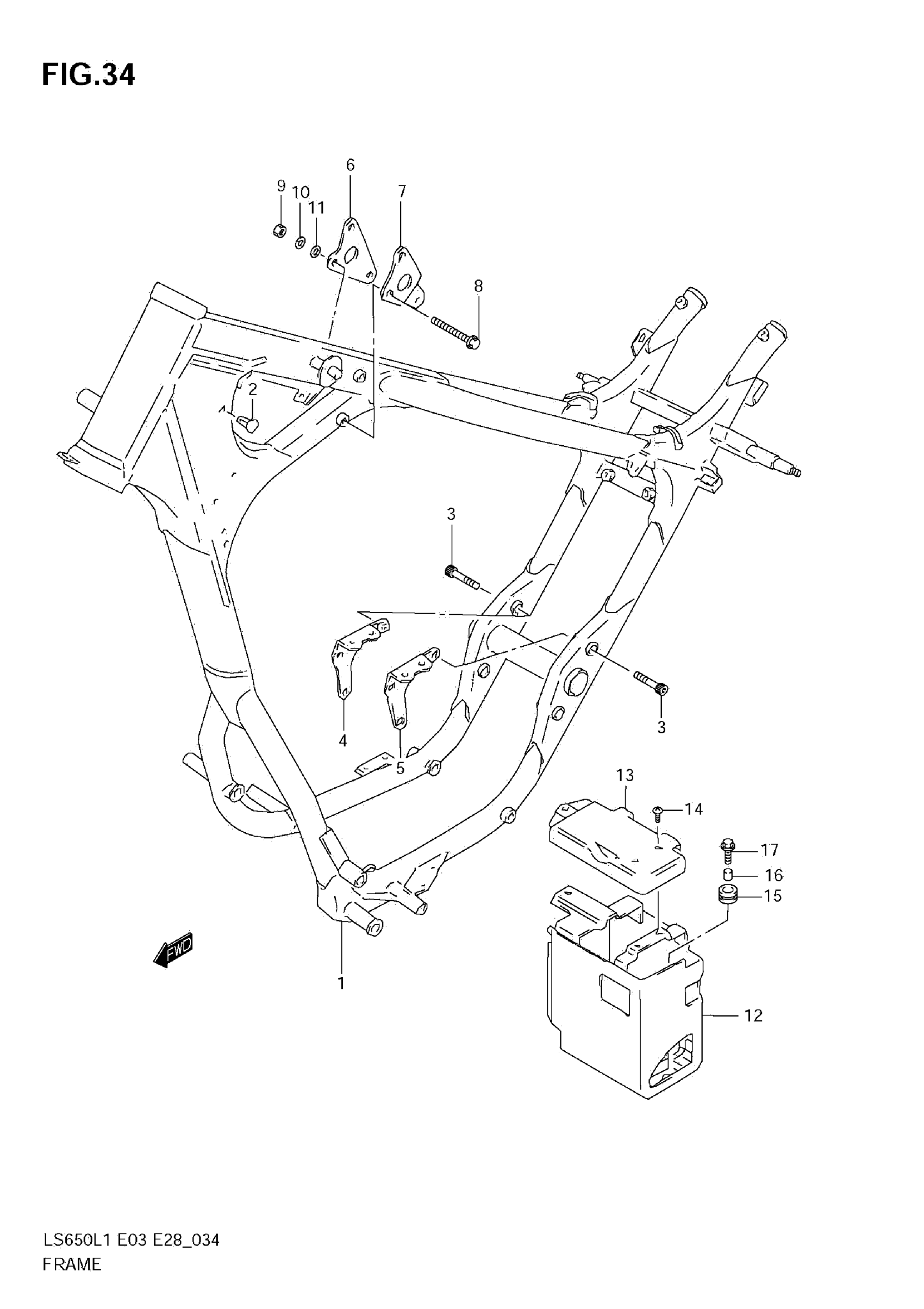

Suzuki LS650L1 (2011) FRAME (LS650L1 E3) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-24B01-019

Unavailable

2

CLIP

09409-06306

Unavailable

3

BOLT (8X40)

09106-08074

$3.85

4

PLATE, ENGINE MOUNTING NO.4 RH (BLACK)

41970-24B00-019

Unavailable

5

PLATE, ENGINE MOUNTING NO.4 LH (BLACK)

41980-24B00-019

Unavailable

6

PLATE, ENGINE MOUNTING NO.5 RH (BLACK)

41991-24B00-019

Unavailable

7

PLATE, ENGINE MOUNTING NO.5 LH (BLACK)

41992-24B00-019

Unavailable

8

BOLT (8X72)

09103-08279

Unavailable

9

NUT

08319-2108A

$2.12

10

LOCK WASHER

08321-0108B

Unavailable

11

WASHER

08322-0108B

$2.34

12

HOLDER, BATTERY

41540-24B01

$101.35

13

COVER, BATTERY

41576-24B01

$36.17

14

SCREW, COVER

02142-04107

$1.49

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

16

SPACER (6.5X9X7.2)

09180-06260

$3.37

17

BOLT (6X20)

09116-06010

$2.19
