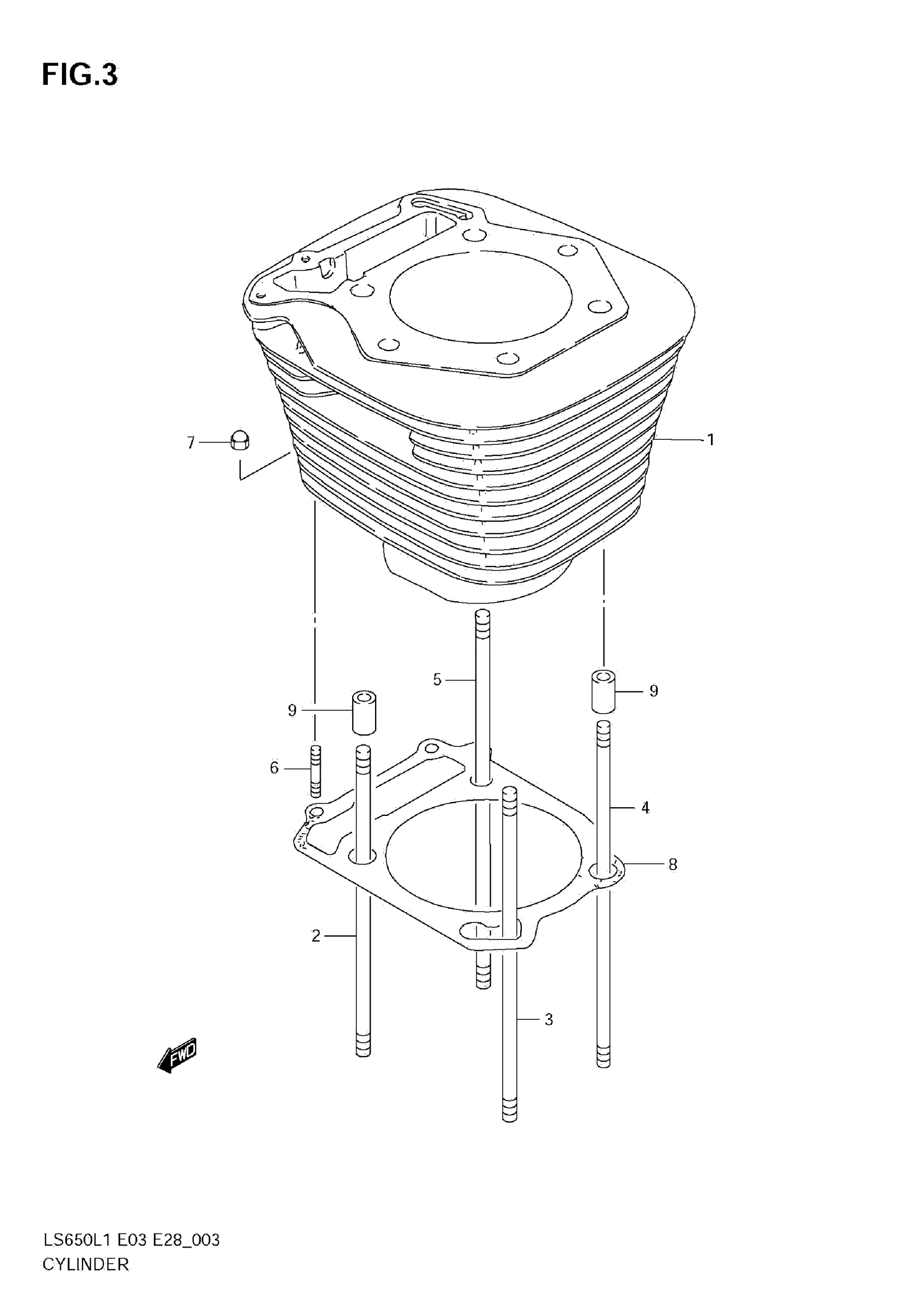

Suzuki LS650L1 (2011) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-24B07-0F0

$1,002.07

2

STUD BOLT (9X166)

09108-09001

$11.28

3

STUD BOLT (9X178)

09108-09002

$12.88

4

STUD BOLT (9X183)

09108-09003

$12.88

5

STUD BOLT (9X203)

09108-09004

$13.05

6

STUD BOLT

01421-0620A

$1.91

7

NUT

09145-06007

$2.72

8

GASKET, CYLINDER

11241-24B01-H17

$12.15

9

PIN

04211-13189

$2.19
