Description

Price

1

CRANKSHAFT ASSY

12200-24B05

Unavailable

2

CONNROD

12161-24B01-0C0

$156.07

3

PIN, CRANK

12210-24B01-0A0

$68.60

4

BEARING (37X47X25)

09263-37004-0B0

$55.27

4

BEARING (37X47X25)

09263-37004-0C0

$53.23

5

WASHER (37X55X1)

09160-37006

$10.58

6

CRANKSHAFT, RH

12221-24B02

Unavailable

7

CRANKSHAFT, LH

12261-24B02

Unavailable

8

BEARING, RH (35X72X17)

09262-35038

$46.10

9

BEARING, LH (40X80X18)

09264-40002

$150.62

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

RETAINER, CRANKSHAFT OIL SEAL

12548-24B00

Unavailable

12

BOLT

01500-0508B

Unavailable

13

GEAR, CRANK BALANCER DRIVE | NT:47

12661-24B00

Unavailable

14

PIN

04221-08149

$1.96

15

SPROCKET, CAM CHAIN DRIVE | NT:19

12731-24B00

$68.60

16

GEAR, PRIMARY DRIVE (NT:37)

21111-24B10

Unavailable

17

NUT

09140-20013

$4.26

18

LOCK WASHER

09164-20003

$3.85

19

PISTON

12111-24B01-0F0

$135.82

20

RING SET, PISTON

12140-14A32

$45.82

21

PIN, PISTON

12151-14A01

$23.40

22

CIRCLIP

09381-23003

$1.49

23

PISTON SET (OS:0.5) | OPT

12100-24B00-050

$199.10

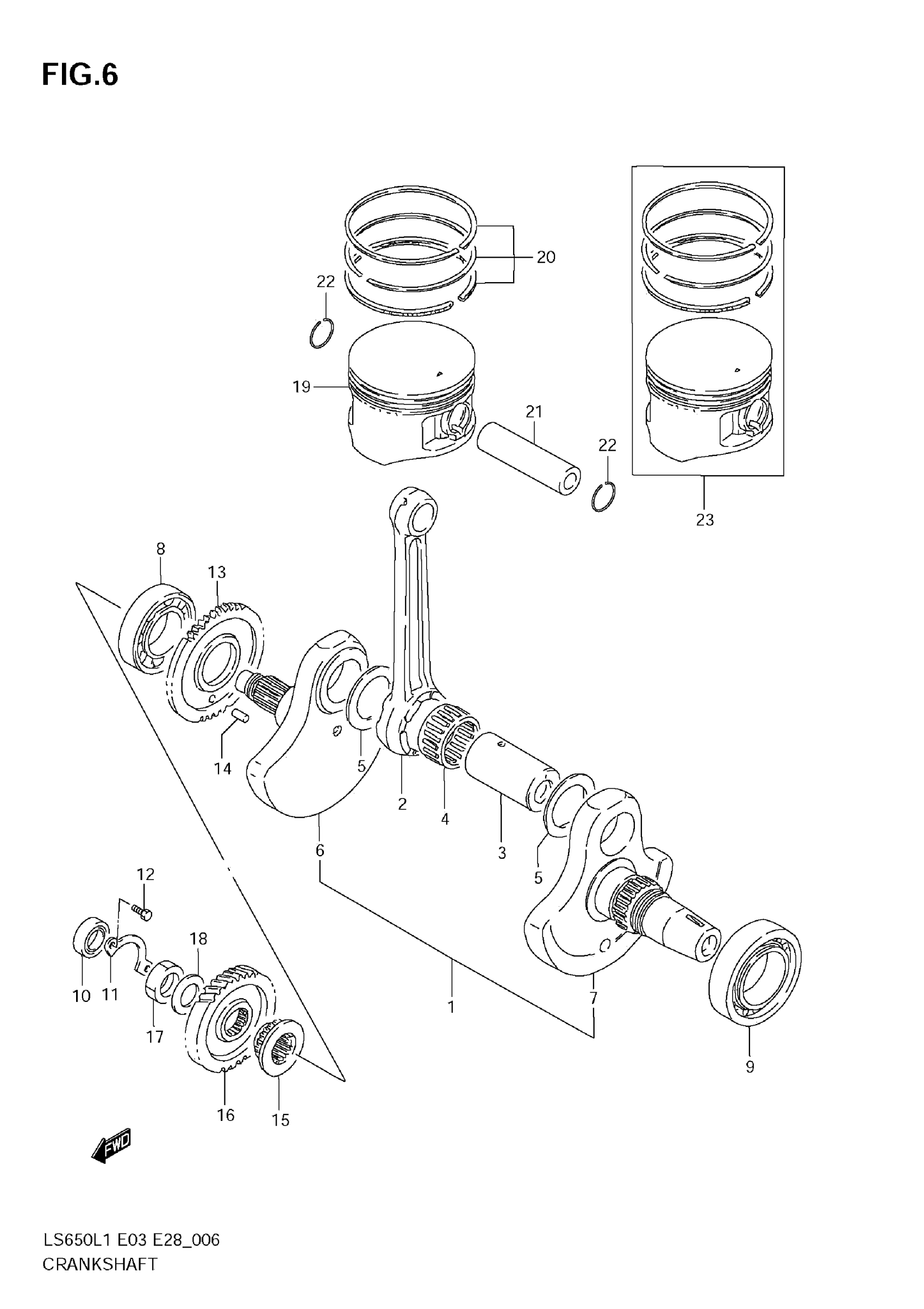

Suzuki LS650L1 (2011) CRANKSHAFT Diagram

CRANKSHAFT ASSY

CONNROD

PIN, CRANK

BEARING (37X47X25)

BEARING (37X47X25)

WASHER (37X55X1)

CRANKSHAFT, RH

CRANKSHAFT, LH

BEARING, RH (35X72X17)

BEARING, LH (40X80X18)

OIL SEAL (16X30X6)

RETAINER, CRANKSHAFT OIL SEAL

BOLT

GEAR, CRANK BALANCER DRIVE | NT:47

PIN

SPROCKET, CAM CHAIN DRIVE | NT:19

GEAR, PRIMARY DRIVE (NT:37)

NUT

LOCK WASHER

PISTON

RING SET, PISTON

PIN, PISTON

CIRCLIP

PISTON SET (OS:0.5) | OPT
