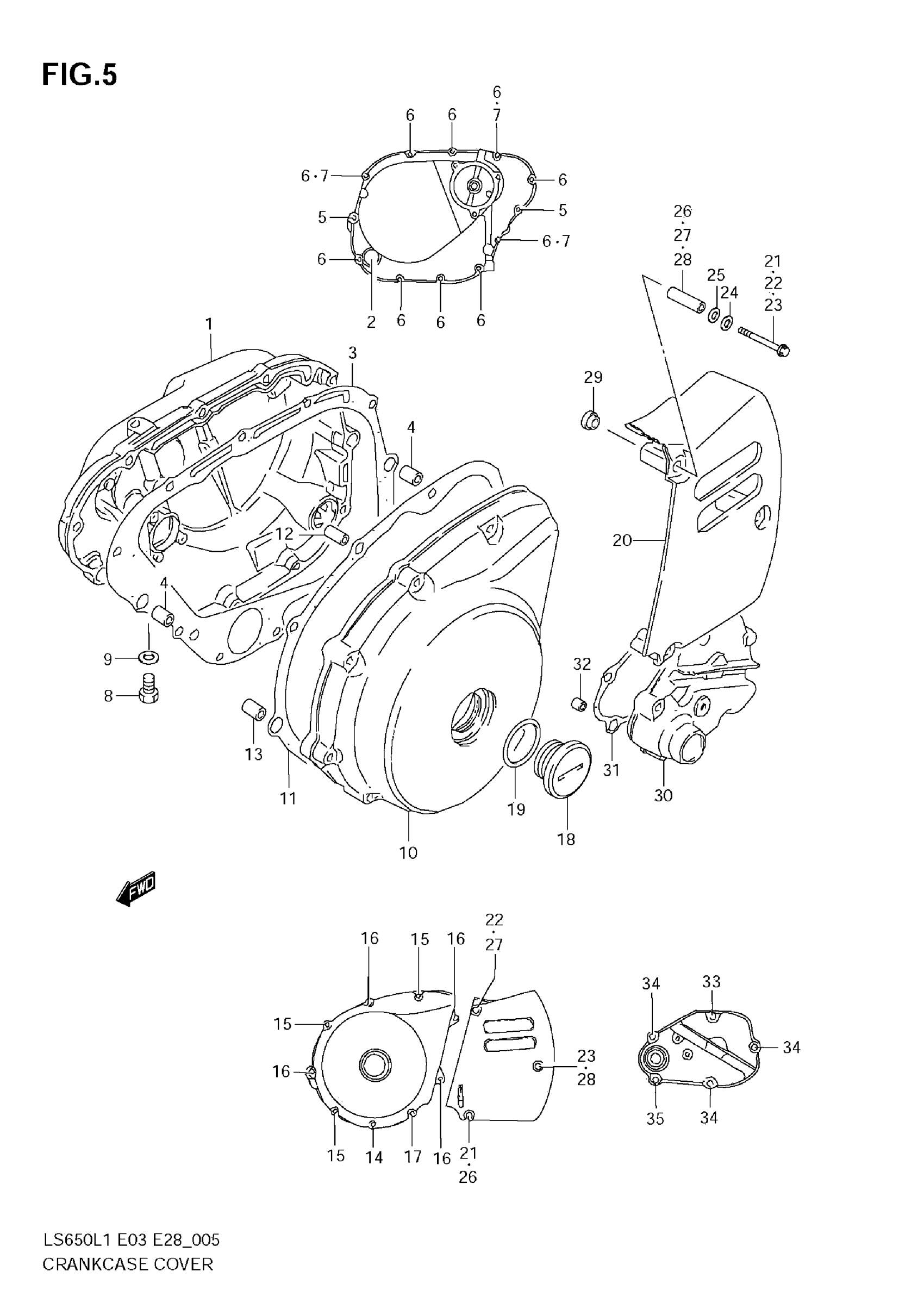

Suzuki LS650L1 (2011) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-24B00

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-24B20

$28.91

4

PIN

04211-11169

$1.78

5

BOLT

09103-06214

$2.48

6

BOLT

09103-06212

$2.47

7

GASKET (5.8X13X1.2)

09168-06023

$2.35

8

PLUG, OIL GALLERY

09247-12104

$2.73

9

GASKET

09168-12002

$1.59

10

COVER, GENERATOR

11351-24B10

$179.33

11

GASKET, GENERATOR COVER (NA)

11483-24B01-H17

$17.14

12

PIN

04211-09189

$1.65

13

PIN

04211-11189

$1.78

14

BOLT (6X25)

09103-06212

$2.47

15

BOLT (6X35)

09103-06214

$2.48

16

BOLT (6X45)

09103-06224

$2.70

17

BOLT (6X50)

09103-06238

$2.66

18

PLUG

09259-36011

$20.46

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

COVER, ENGINE SPROCKET

11361-24B10

$113.25

21

BOLT (6X45)

09103-06224

$2.70

22

BOLT (6X50)

09103-06238

$2.66

23

BOLT (6X55)

09103-06216

$2.78

24

WASHER (6.5X14X1.6)

09160-06125

$1.91

25

WASHER (8.7X15X2.1)

09161-09006

$2.36

26

SPACER (6.5X9X31.5)

09180-06277

$3.89

27

SPACER (6.5X9X38.3)

09180-06279

$4.43

28

SPACER (6.5X9X41.3)

09180-06280

$5.07

29

WASHER (8.7X16X5)

09161-09005

$2.36

30

COVER, GEAR SHIFT

11371-24B01

$99.63

31

GASKET, GEAR SHIFT COVER

11485-24B20

$7.37

32

PIN

04211-09109

$1.65

33

BOLT

01547-0616A

$2.03

34

BOLT

01547-0630A

$2.32

35

BOLT

01547-0635A

$2.30
