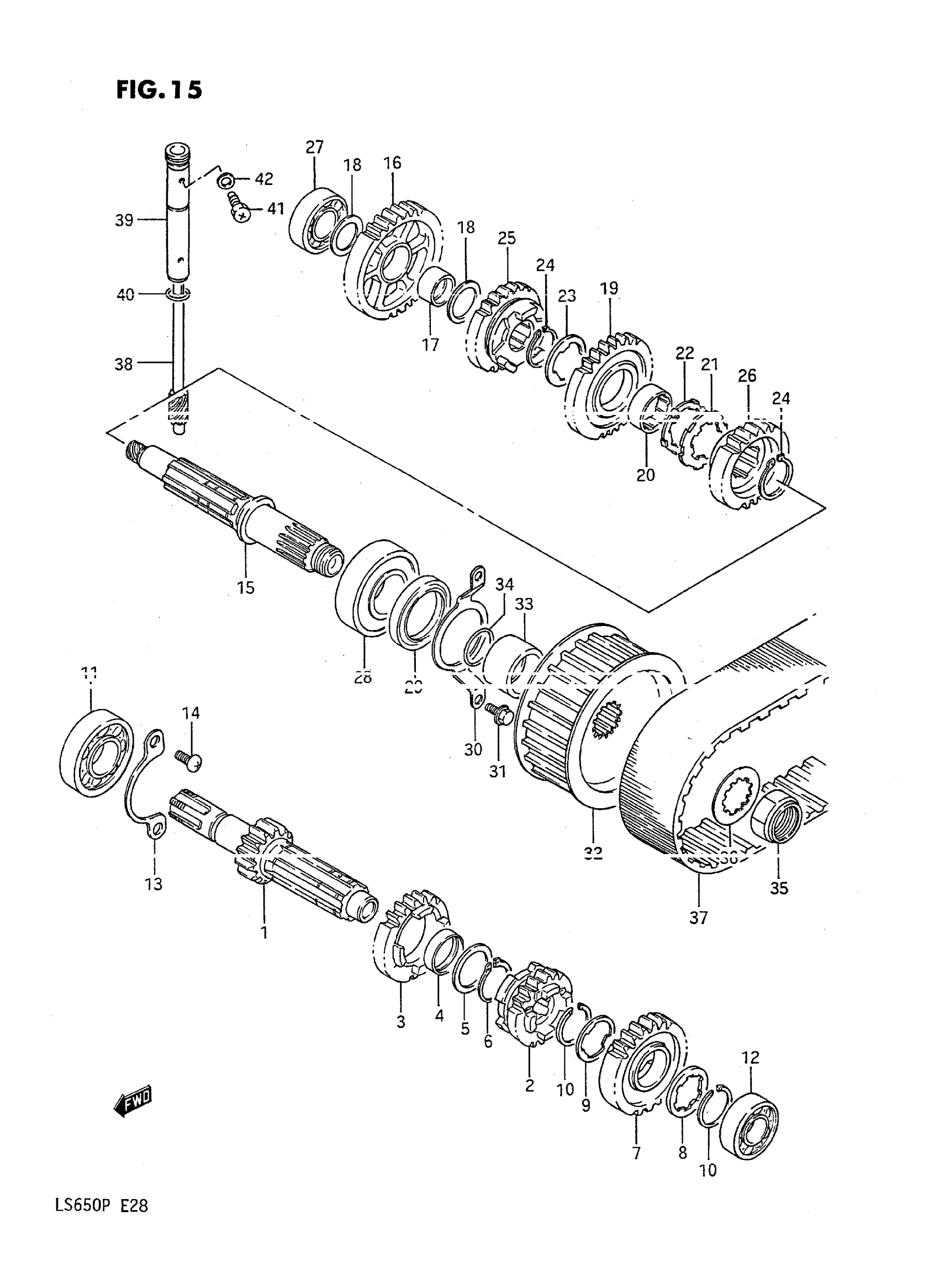

Suzuki LS650F (1995) TRANSMISSION Diagram

COUNTERSHAFT (NT:14)

24121-24B02

Unavailable

GEAR, 2ND DRIVE (NT:18)

24221-24B02

Unavailable

GEAR, 3RD DRIVE (NT:21)

24231-24B01

Unavailable

BUSH

09300-25020

$16.87

WASHER

08211-25351

$3.72

SNAP RING

09380-25003

$3.04

GEAR, 4TH DRIVE (NT:24)

24241-24B02

Unavailable

WASHER (T:2.5)

09167-25020

Unavailable

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

CIRCLIP

09380-25010

$2.91

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

BEARING, LH

09262-17027

$35.28

HOLDER, BEARING

24741-24B00

Unavailable

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

DRIVESHAFT

24130-24B01

Unavailable

GEAR, 1ST DRIVEN (NT:31)

24311-24B00

Unavailable

BUSH

09300-20032

$17.50

WASHER

08211-20301

$2.35

GEAR, 2ND DRIVEN (NT:27)

24321-24B00

Unavailable

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

WASHER

09169-25001

$2.70

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

WASHER

09167-25016

$3.72

SNAP RING

09380-25003

$3.04

GEAR, 3RD DRIVEN (NT:23)

24331-24B02

Unavailable

GEAR, 4TH DRIVEN (NT:21)

24341-24B01

Unavailable

BEARING (20X42X12) This part replaces 09262-20086.

09262-20106

$29.35

BEARING (25X62X17) This part replaces 09262-25083.

09262-25125

$59.09

OIL SEAL, LH

09283-36003

$12.61

HOLDER, OIL SEAL

24751-24B00

$7.37

BOLT

01547-06127

$1.65

PULLEY, FRONT

27510-24B01

$143.78

SPACER

27531-24B00

$31.72

O RING (D:2.4,ID:23.7) This part replaces 09280-24008.

09280-24010

$5.64

NUT

09159-20004

$15.67

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

$2.19

BELT, DRIVE

27611-24B00-133

$301.62

GEAR, DRIVEN (NT:8)

26131-24B00

Unavailable

SLEEVE

26481-24B01

Unavailable

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

WASHER

09168-06004

$1.49
