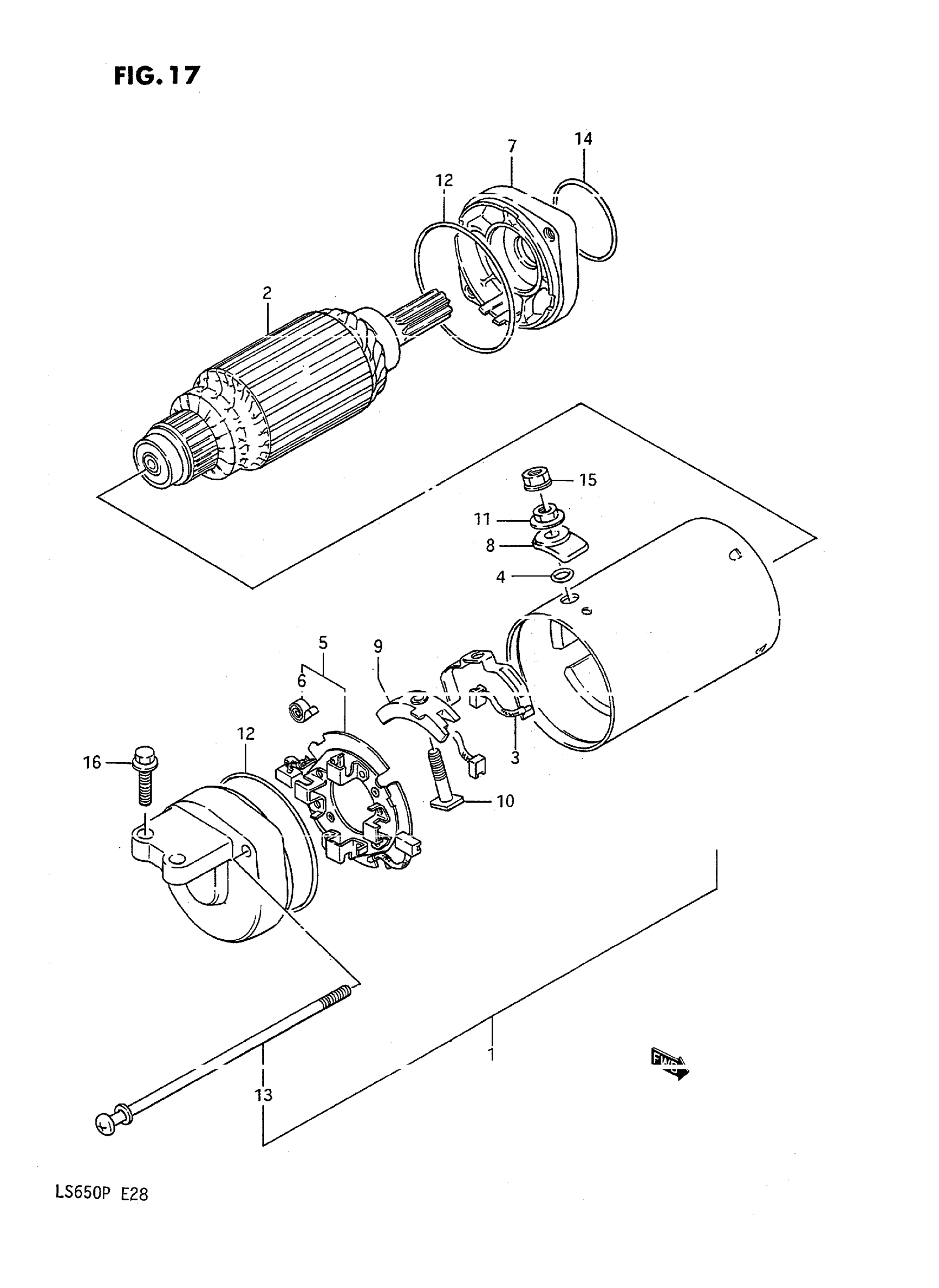

Suzuki LS650F (1995) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | MODEL G,->31100-24B11 This part replaces 31100-24B00.

31100-07F00

Unavailable

1

MOTOR ASSY, STARTING | MODEL J/K This part replaces 31100-24B11.

31100-07F00

Unavailable

1

MOTOR ASSY, STARTING | MODEL L/M/N/P; Includes Item(s) 2 - 14 This part replaces 31100-24B11-H17.

31100-07F00

Unavailable

2

ARMATURE

31310-24B01-H17

Unavailable

3

BRUSH TERMINAL SET (+)

31131-48B00

Unavailable

4

O RING | MODEL G

31143-38300

$5.10

4

GASKET | MODEL J/K/L/M/N/P

31143-48B00

Unavailable

5

BRUSH HOLDER SET (-)

31132-48B00

Unavailable

6

SPRING, BRUSH

31135-65010

$4.52

7

BRACKET SET This part replaces 31150-24B00.

31150-44B00

Unavailable

8

BUSHING | MODEL G

31172-38A10

Unavailable

8

BUSHING | MODEL J/K/L/M/N/P

31172-48B10

Unavailable

9

BUSHING | MODEL G

31172-38A20

Unavailable

9

BUSHING | MODEL J/K/L/M/N/P

31172-48B20

Unavailable

10

BOLT | MODEL G This part replaces 31130-38A00.

31281-31D00

$8.65

10

BOLT | MODEL J/K/L/M/N/P

31130-48B00

Unavailable

11

.NUT | MODEL G This part replaces 08310-22067.

08310-00067

$2.13

11

NUT | MODEL J/K/L/M/N/P

31145-48B00

Unavailable

12

O RING

31264-44110

$11.87

13

BOLT | MODEL J/K/L/M This part replaces 31281-24B00.

31281-31D00

$8.65

13

BOLT | MODEL N/P This part replaces 31281-24B10.

31281-31D00

$8.65

14

O RING (D:2.1,ID:34.7) This part replaces 31156-24B00.

09280-35005

$9.05

15

NUT This part replaces 08361-35066.

08361-3506A

$1.80

16

BOLT

01547-06207

$2.01
