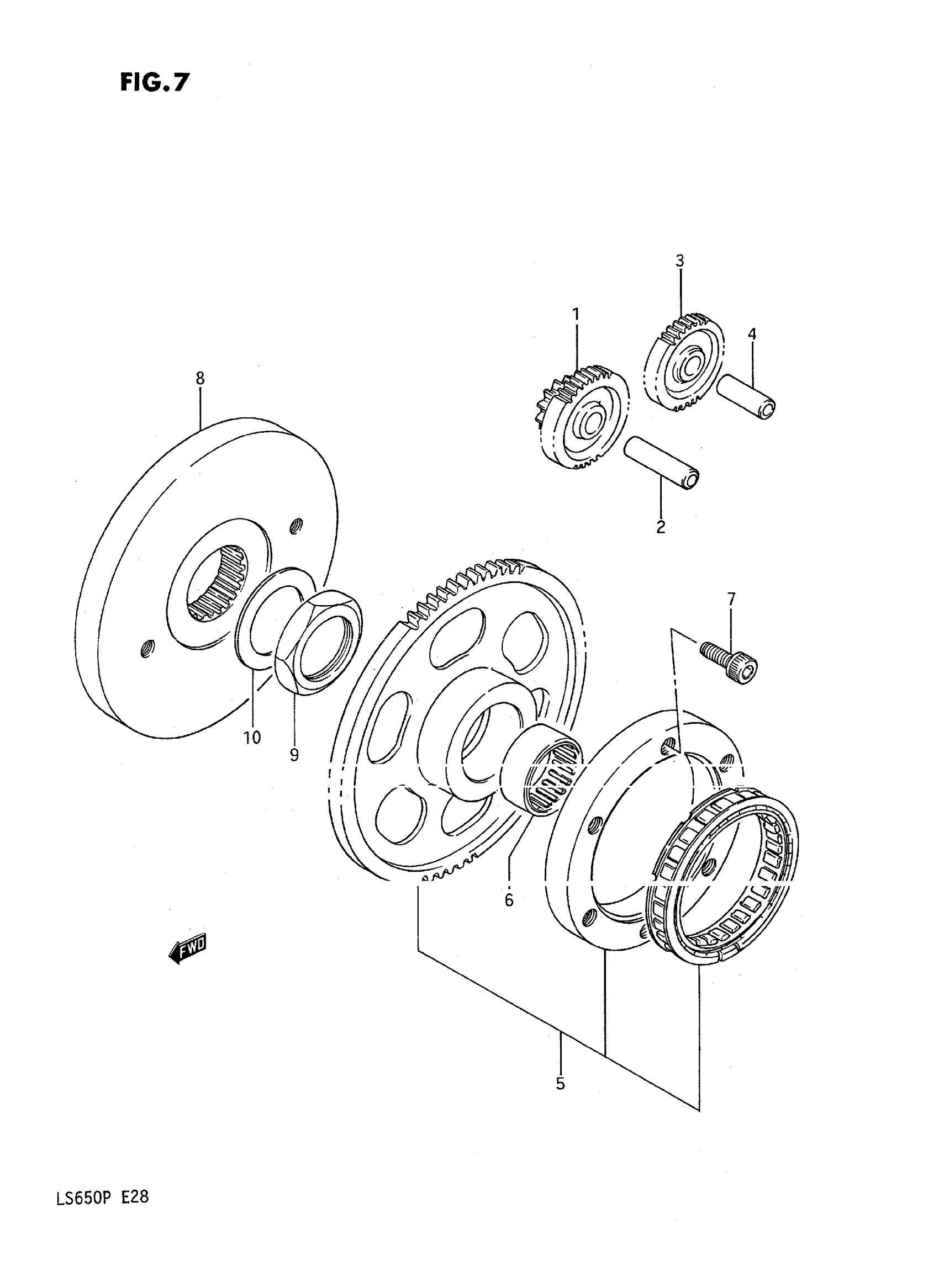

Suzuki LS650F (1995) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR,STARTER ID | NT:11/37 This part replaces 12611-24B01.

12611-24B02

Unavailable

2

PIN (10X43) This part replaces 09206-10003.

09202-10008

$11.73

3

GEAR, STARTER IDLE NO.2 | NT:34 This part replaces 12612-24B01.

12612-24B03

$64.30

4

PIN (10X30) This part replaces 09206-10005.

09202-10011

$9.40

5

CLUTCH SET, STARTER (NT:80) | Includes Item(s) 6 This part replaces 12600-24830.

12600-24831

$364.47

6

BEARING

09263-31009

$47.00

7

BOLT This part replaces 09106-08043.

07130-0816A

$3.16

8

FLYWHEEL

12656-24B02

Unavailable

9

NUT

12664-24B01

$15.42

10

WASHER

09164-35002

Unavailable
