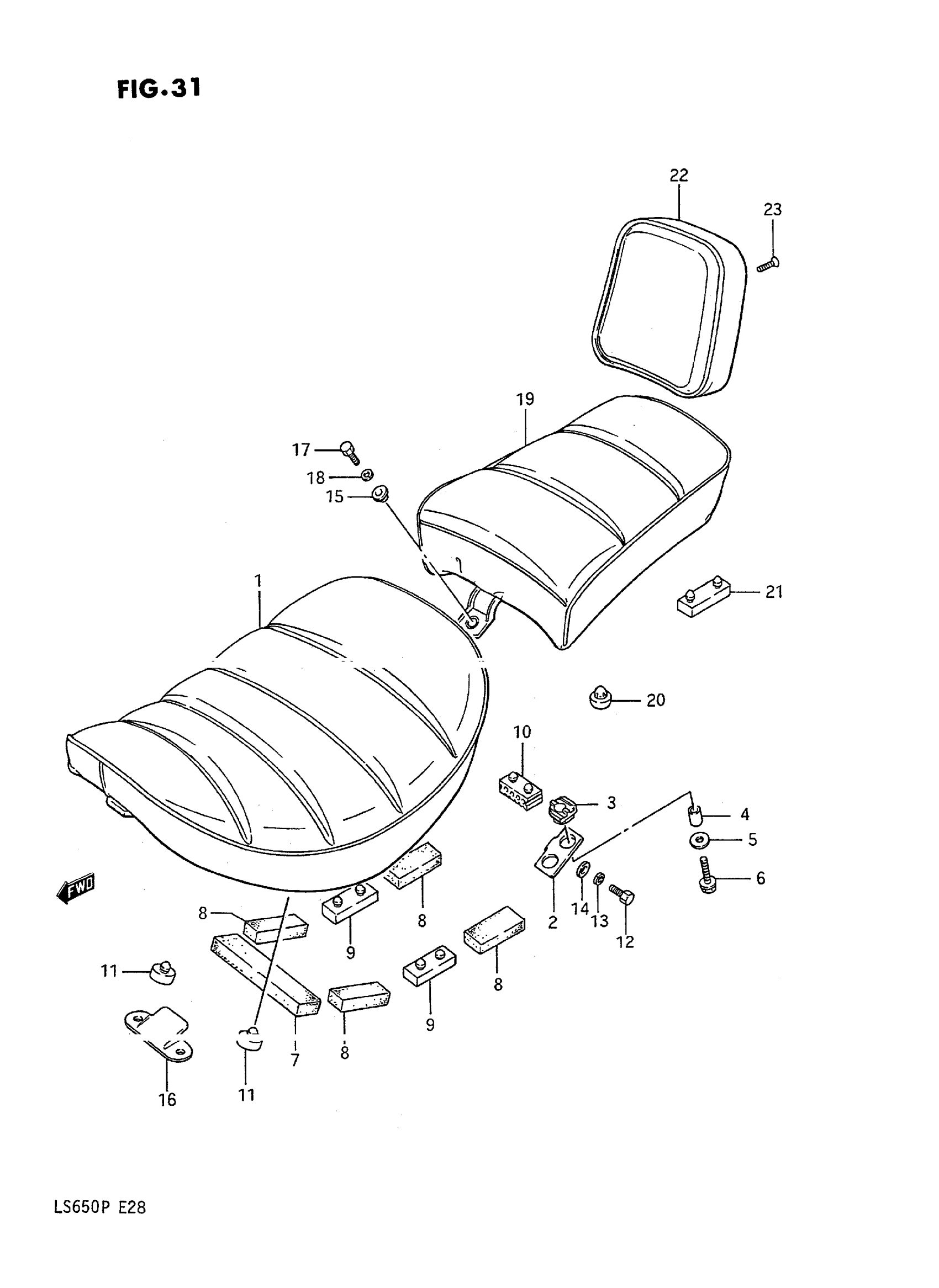

Suzuki LS650F (1995) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 45100-24B00-4HS.

45100-24B21-4HS

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/K/L/M/N/P; Includes Item(s) 2 - 11 This part replaces 45100-24B20-4HS.

45100-24B21-4HS

Unavailable

2

BRACKET, SEAT REAR

45114-24B00

$10.17

3

CUSHION, REAR BRACKET

45118-24B00

$3.77

4

SPACER

45169-24B00

Unavailable

5

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

6

BOLT This part replaces 01517-06256.

01550-0625A

$1.97

7

CUSHION, CENTER FRONT

45116-24B00

Unavailable

8

CUSHION, CENTER SIDE

46117-24B00

Unavailable

9

CUSHION

45149-43500

$6.85

10

CUSHION

45149-31300

$3.56

11

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

12

SCREW | MODEL G/J This part replaces 09128-06041.

02162-0616B

$2.03

12

BOLT | MODEL K/L/M/N/P

09118-06088

Unavailable

13

LOCK WASHER | MODEL G/J This part replaces 08321-21064.

08321-0106A

$1.84

14

.WASHER | MODEL G/J This part replaces 08322-21064.

08322-0106B

$2.26

15

WASHER

09169-06037

$2.45

16

PLATE, SEAT HOOK & REAR

45119-24B00

$3.05

17

BOLT | MODEL G/J This part replaces 01107-06166.

01500-0616A

$1.78

17

BOLT | MODEL K/L/M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

18

LOCK WASHER | MODEL G/J This part replaces 08321-21066.

08321-0106A

$1.84

19

SEAT SET, PILLION (BLACK) | Includes Item(s) 20 - 21

45300-24B00-4HS

Unavailable

20

CUSHION,SEAT This part replaces 45149-24B00.

45149-24B01

$3.25

21

CUSHION

45149-43500

$6.85

22

PAD ASSY, SEAT (BLACK)

45350-24B00-4HS

Unavailable

23

SCREW This part replaces 02122-05168.

02122-05167

$2.47
