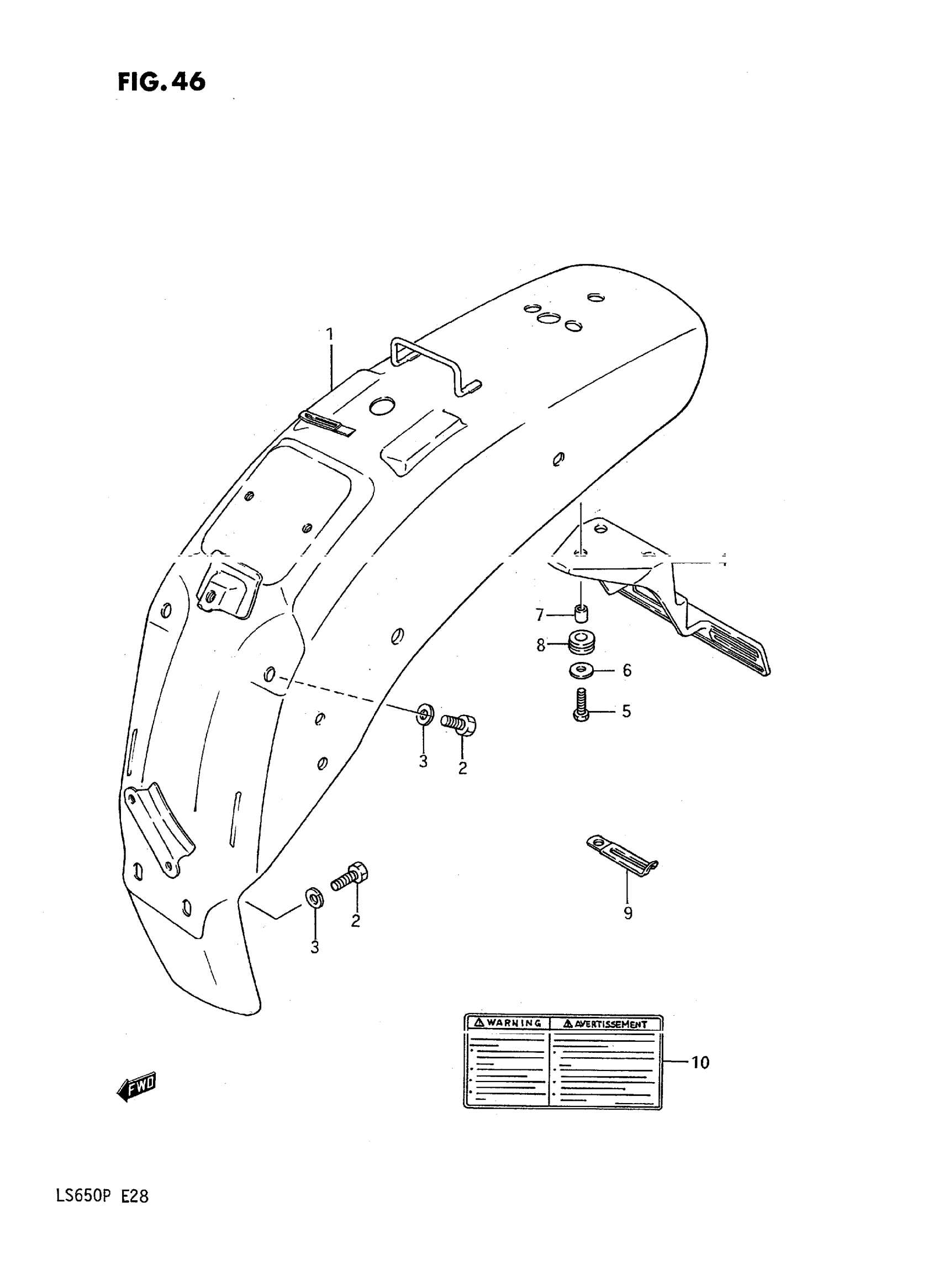

Suzuki LS650F (1995) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63110-24B03-13Z.

63110-24B03-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63110-24B03-00J.

63110-24B03-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/K/L This part replaces 63110-24B10-24V.

63110-24B12-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/K/L This part replaces 63110-24B10-33D.

63110-24B12-13L

Unavailable

1

FENDER, REAR (BLACK) | MODEL M/N/P

63110-24B10-13Z

Unavailable

1

FENDER, REAR (BLUE) | MODEL M/N/P

63110-24B10-33H

Unavailable

2

BOLT | MODEL G/J/K/L/M/N

09100-08184

Unavailable

2

BOLT | MODEL P This part replaces 09103-08152.

09103-08419

$2.53

3

WASHER | MODEL G/J/K/L/M/N This part replaces 08322-11086.

08322-0108A

$1.92

4

BRACKET, LICENCE PLATE

35916-24B01

$74.56

5

BOLT, GEAR SHIFT LINK | MODEL G/J/K/L This part replaces 01107-06206.

01500-0620A

$1.78

5

BOLT (6X20) | MODEL M/N/P This part replaces 09116-06065.

09116-06010

$2.19

6

WASHER (6.5X18X1.6) | MODEL G/J/K/L This part replaces 09160-06057.

09160-06109

$1.49

7

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

8

CUSHION

09320-09016

$1.97

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

10

LABEL, WARNING SAFETY | MODEL L/M/N/P This part replaces 68319-40C10.

68319-33E11

Unavailable

11

LABEL, TIRE AIR PRESSURE | WITH OUT DRAWING

68332-24B50

Unavailable
