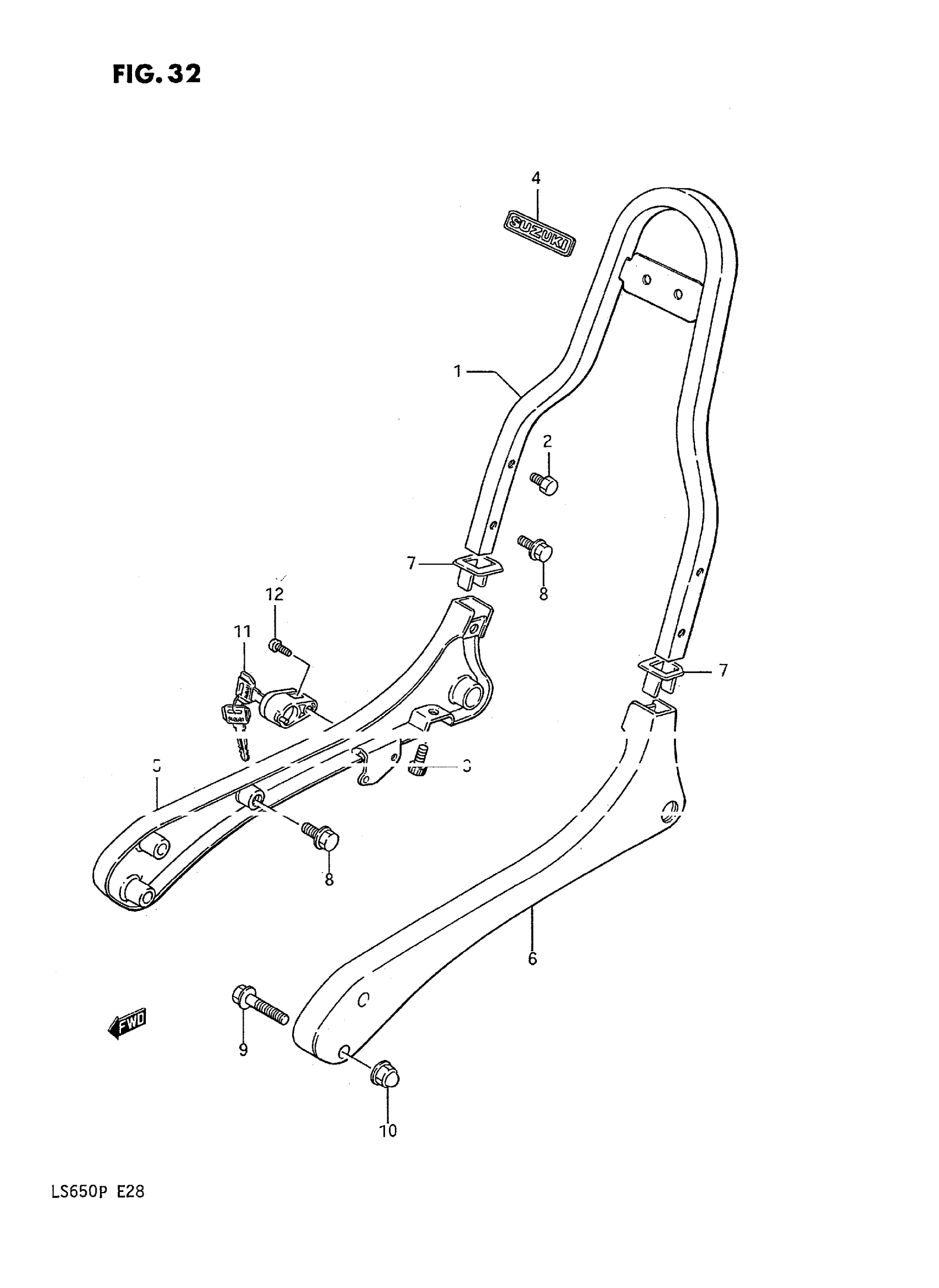

Suzuki LS650F (1995) PILLION RIDER HANDLE Diagram

#

Description
Price

1

HANDLE, PILLION RIDER UPPER

46210-24B00

Unavailable

2

BOLT, UPPER

01204-08127

$2.38

3

NO DESCRIPTION AVAILABLE This part replaces 07110-08128.

07130-08127

Unavailable

4

EMBLEM

68281-24B00

Unavailable

5

HANDLE, PILLION RIDER RH

46240-24B00

Unavailable

6

HANDLE, PILLION RIDER LH

46250-24B00

Unavailable

7

COVER, PILLION RIDER HANDLE

46261-24B00

$4.52

8

BOLT (8X16) This part replaces 01517-08166.

01550-0816A

$2.32

9

BOLT (8X35) This part replaces 01517-08356.

01550-0835A

$3.04

10

NUT This part replaces 08313-21087.

08313-20087

$2.19

11

LOCK SET, HELMET | MODEL G/J/K/L/M This part replaces 95700-38831.

95700-38821

$66.87

11

LOCK ASSY, HELMET | MODEL N/P

95700-38821

$66.87

12

SCREW This part replaces 02112-05128.

02112-05127

$1.97
