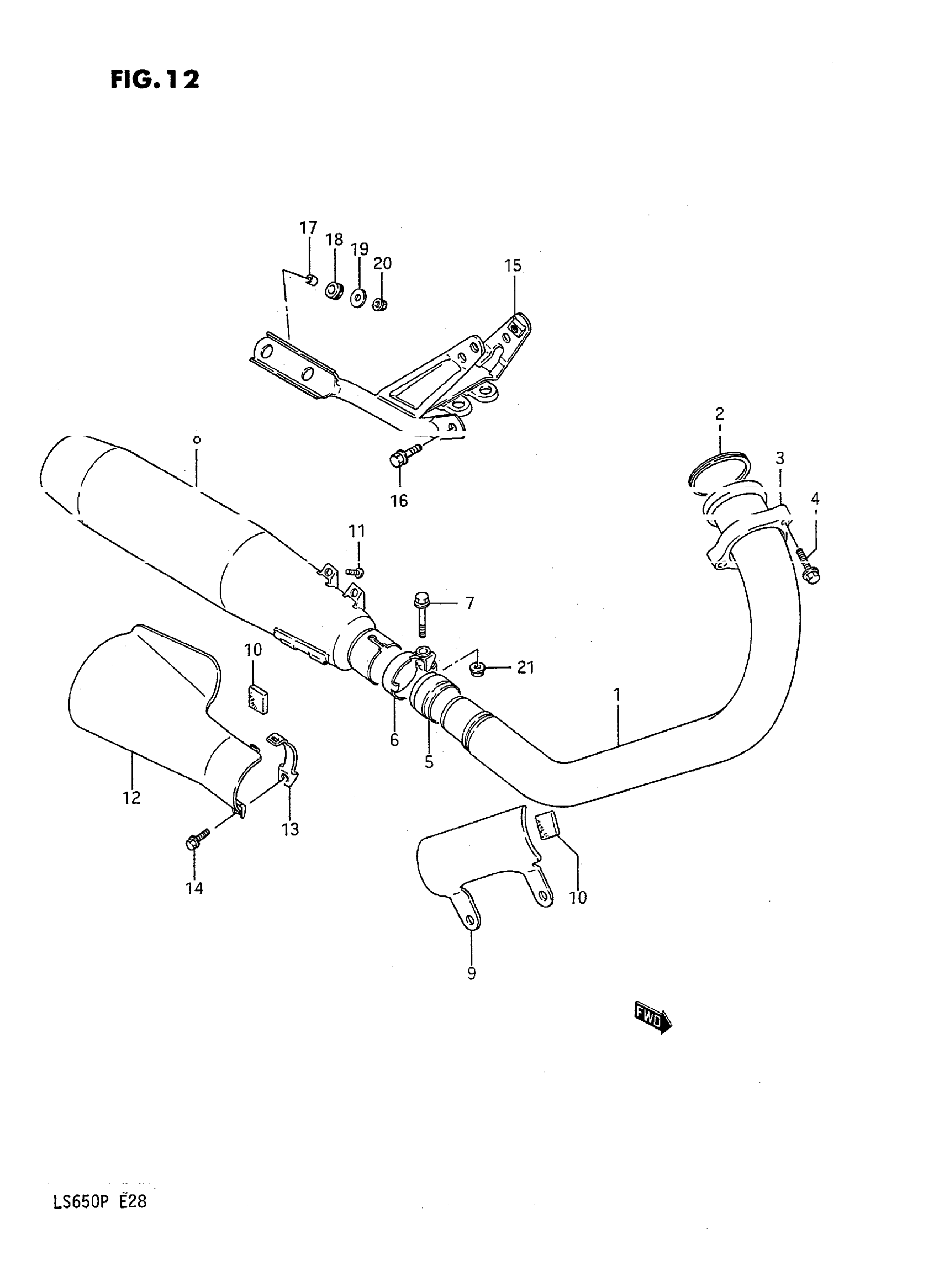

Suzuki LS650F (1995) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-24B00.

14150-24B01

$331.30

2

GASKET, EXHAUST PIPE

14181-45C00

$7.38

3

CLAMP, EXHAUST PIPE This part replaces 14182-38A01.

14182-38A02

$42.45

4

BOLT

09104-08026

$3.76

5

CONNECTOR, MUFFLER This part replaces 14771-24B00.

14771-24B01

$33.70

6

CLAMP, MUFFLER CONNECTOR This part replaces 14469-24B00.

14469-05A00

Unavailable

7

BOLT This part replaces 01517-08407.

01550-08407

$3.42

8

MUFFLER

14310-24B01-H01

Unavailable

9

COVER, EXHAUST PIPE

14780-24B01

$62.07

10

GASKET This part replaces 14789-24B10.

14789-24B12

$6.91

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49

12

COVER, MUFFLER

14790-24B00

$121.55

13

CLAMP

14785-24B00

$8.83

14

BOLT This part replaces 01517-06207.

01550-06207

$2.30

15

STAY, MUFFLER

14410-24B00-019

Unavailable

16

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

17

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58

18

CUSHION

09320-12041

$5.52

19

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

20

NUT This part replaces 08316-26088.

08316-20087

$2.77

21

NUT This part replaces 08316-26083.

08316-2008A

$2.70
