Partiron

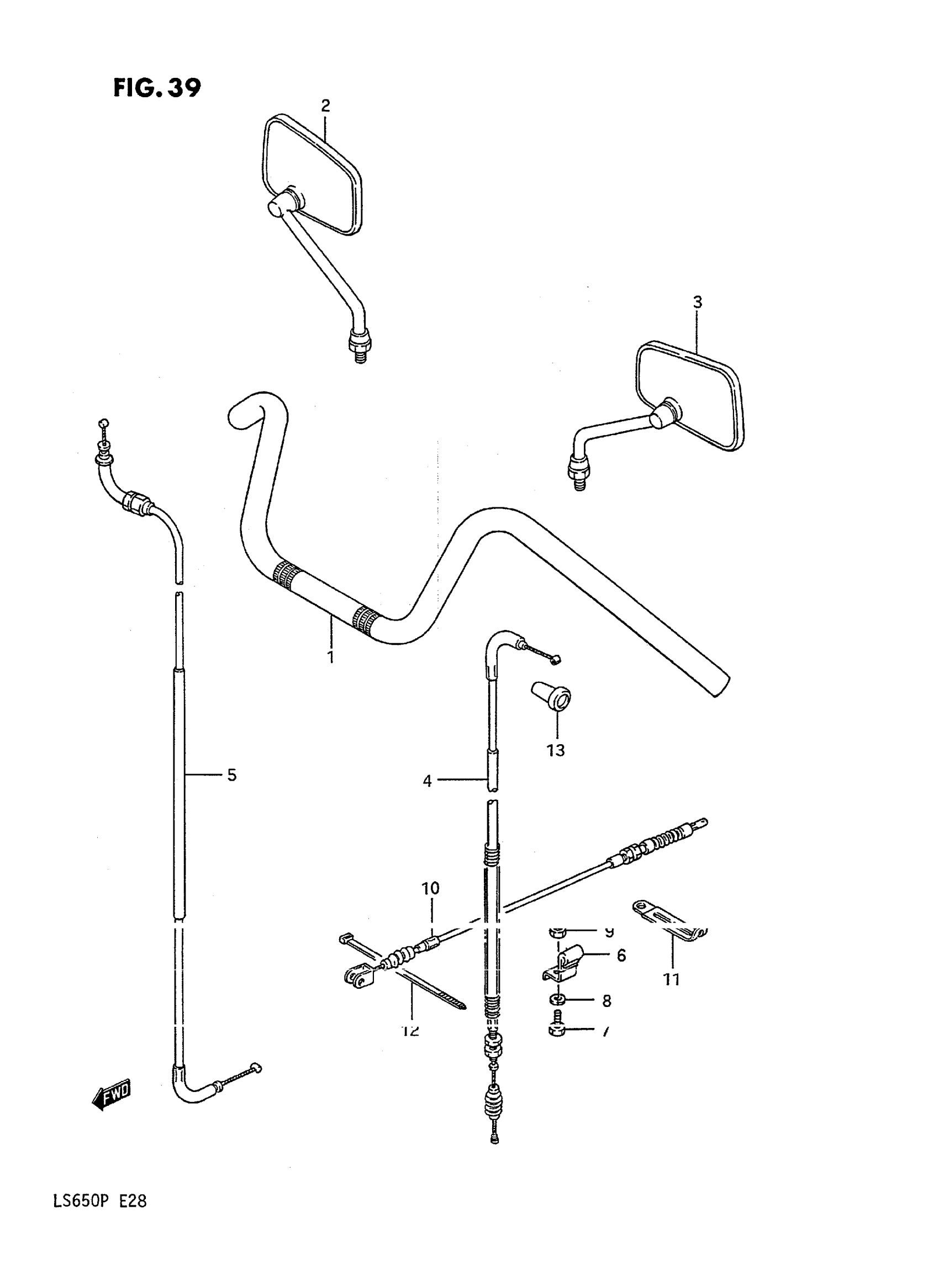

Suzuki LS650F (1995) HANDLEBAR - CONTROL CABLE (LS650PG/PJ/PK/PL Diagram

#

Description
Price

1

HANDLEBAR (PULL BACK TYPE) | LS650PG->56110-24B20 This part replaces 56110-24B00.

56110-24B20

Unavailable

1

HANDLEBAR (PULL BACK TYPE) | LS650PJ/PK->56110-24B20 This part replaces 56110-24B40.

56110-24B20

Unavailable

1

HANDLEBAR (PULL BACK TYPE) | LS650PLMODEL M/N/P

56110-24B20

Unavailable

2

MIRROR ASSY,REA This part replaces 56500-24B00.

56500-24B21

$113.94

3

NO DESCRIPTION AVAILABLE This part replaces 56600-24B00.

56600-24B21

Unavailable

4

CABLE ASSY, CLUTCH

58200-24B12

$31.88

5

CABLE ASSY, THROTTLE

58300-24B12

Unavailable

6

CLAMP, STOP LAMP SWITCH CABLE This part replaces 58621-24B00.

58620-24B00

Unavailable

7

BOLT | LS650PG/PJ/PK/PL This part replaces 01107-06165.

01500-0616A

$1.78

7

BOLT | MODEL M/N/P This part replaces 01137-06165.

01570-0616A

$2.23

8

LOCK WASHER | LS650PG/PJ/PK/PL This part replaces 08321-21064.

08321-0106A

$1.84

9

NUT This part replaces 08310-11065.

08310-0006A

$1.84

10

CABLE, STOP LAMP SWITCH This part replaces 58830-24B00.

58830-24B01

$28.85

11

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

12

CLAMP, REAR BRAKE CABLE

09407-09402

$2.45

13

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22
