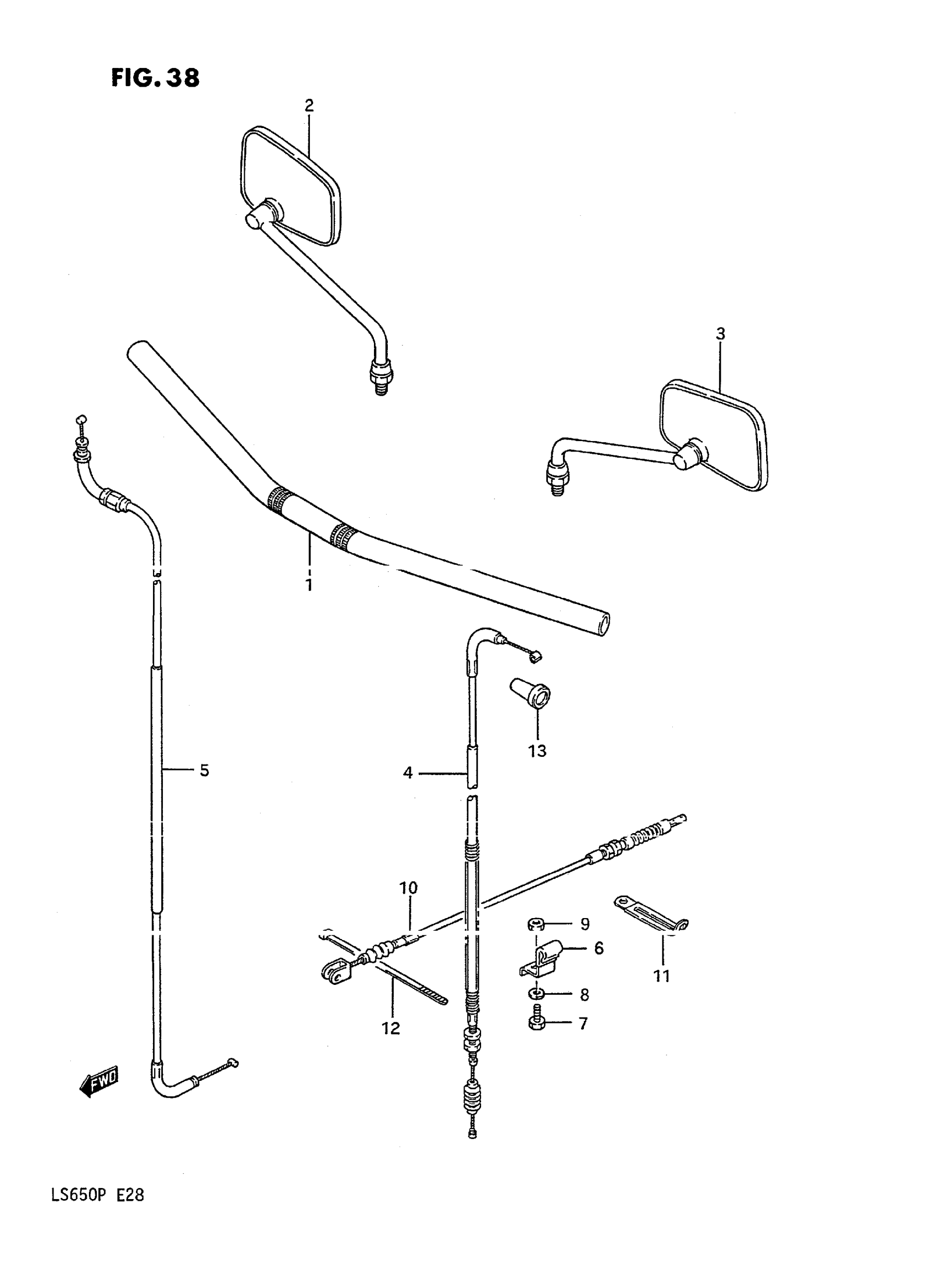

Suzuki LS650F (1995) HANDLEBAR - CONTROL CABLE (LS650FG/FJ/FK/FL) Diagram

#

Description

Price

1

HANDLEBAR (FLAT TYPE) | LS650FG/FJ->56110-24B30 This part replaces 56110-24B10.

56110-24B30

Unavailable

1

HANDLEBAR (FLAT TYPE) | LS650FK/FL

56110-24B30

Unavailable

2

MIRROR ASSY, REAR VIEW RH

56500-24B10

Unavailable

3

MIRROR ASSY, REAR VIEW LH

56600-24B10

Unavailable

4

CABLE ASSY, CLUTCH

58200-24B02

Unavailable

5

CABLE ASSY, THROTTLE

58300-24B02

Unavailable

6

CLAMP, STOP LAMP SWITCH CABLE This part replaces 58621-24B00.

58620-24B00

Unavailable

7

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

8

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

9

NUT This part replaces 08310-11065.

08310-0006A

$1.84

10

CABLE, STOP LAMP SWITCH This part replaces 58830-24B00.

58830-24B01

$28.85

11

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

12

CLAMP, REAR BRAKE CABLE

09407-09402

$2.45

13

BOOT, CLUTCH CABLE | K/PL This part replaces 58273-31000.

58273-31001

$2.22
