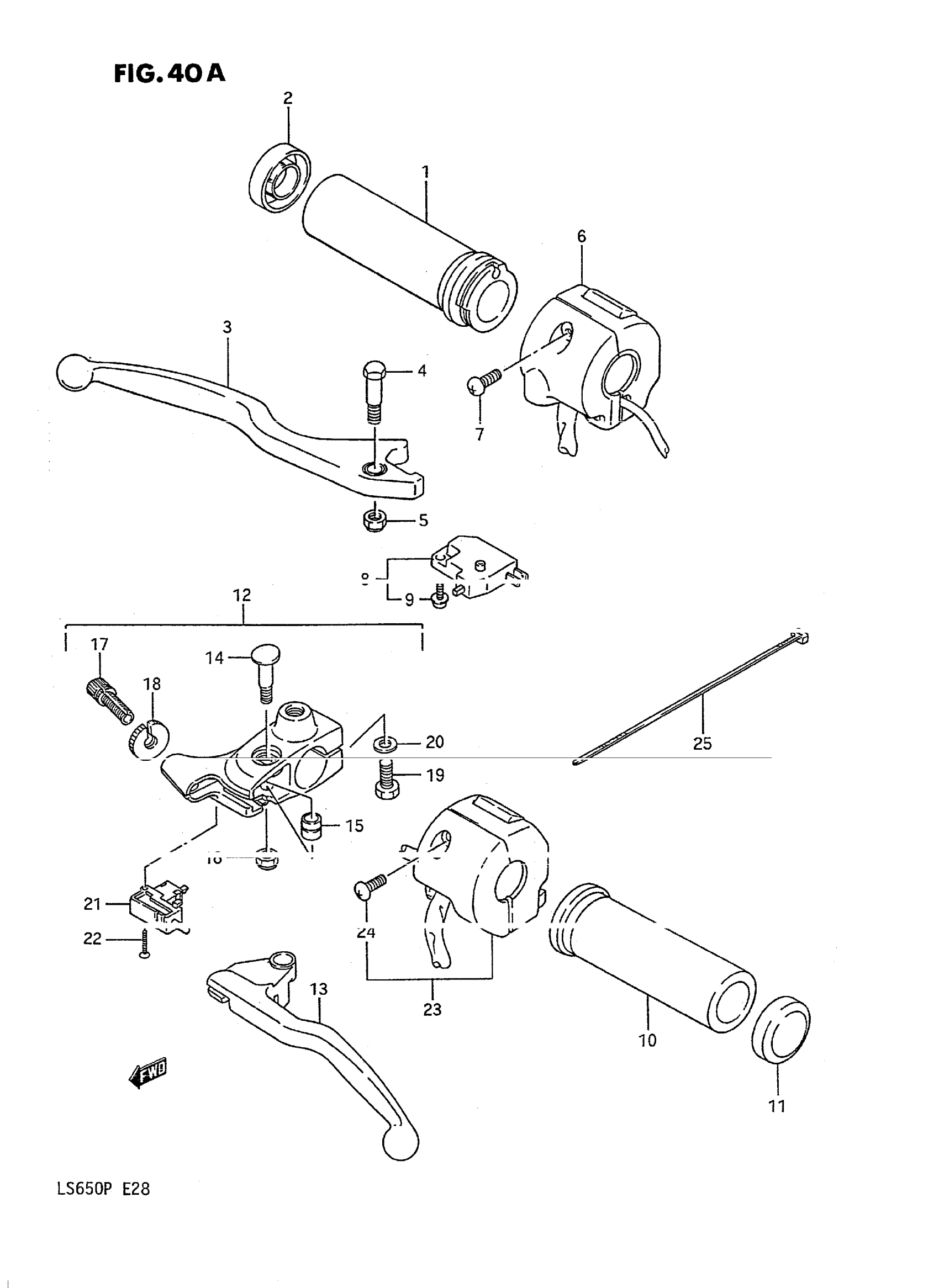

Suzuki LS650F (1995) HANDLE SWITCH (MODEL K/L/M/N/P) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-38A02

Unavailable

2

CAP

57216-38A00

$7.22

3

LEVER, BRAKE | MODEL K/L/M/N This part replaces 57420-24B00.

57420-24B01

$26.03

3

LEVER, BRAKE | MODEL P

57420-24B01

$26.03

4

BOLT | MODEL K/L/M/N This part replaces 57431-38A00.

57431-38A10

$9.23

4

BOLT | MODEL P

57431-38A10

$9.23

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

SWITCH ASSY, HANDLE RH | LS650FK/FL

37200-24C30

Unavailable

6

SWITCH ASSY, HANDLE RH | LS650PK/PLMODEL M/N/P; Includes Item(s) 7

37200-24C90

Unavailable

7

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C00.

57460-14J02

$38.46

9

SCREW

57465-17C00

$2.19

10

GRIP, LH

57210-38A02

Unavailable

11

CAP

57216-38A00

$7.22

12

LEVER ASSY,CLUT | MODEL K/L/M/N This part replaces 57500-24B00.

57500-24B02

$45.95

12

LEVER ASSY,CLUT | MODEL P; Includes Item(s) 13 - 22 This part replaces 57500-24B01.

57500-24B02

$45.95

13

LEVER, CLUTCH | MODEL K/L/M/N This part replaces 57620-24B00.

57620-24B01

$23.27

13

LEVER, CLUTCH | MODEL P

57620-24B01

$23.27

14

BOLT, CLUTCH LEVER

57531-24B00

$8.83

15

SPACER, CLUTCH LEVER

57623-24B00

$4.52

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

ADJUSTER, WIRE | MODEL K/L/M/N

57441-24B00

Unavailable

17

.ADJUSTER, WIRE | MODEL P This part replaces 57441-45C00.

57441-45C01

$9.05

18

LOCK NUT | MODEL K/L/M/N

57442-24B00

Unavailable

18

.NUT, LOCK | MODEL P This part replaces 57442-45C00.

57442-45C01

$8.41

19

BOLT | MODEL K/L/M/N This part replaces 01107-06207.

01500-06207

$2.28

19

BOLT, LEVER HOLDER | MODEL P

07130-06208

Unavailable

20

WASHER | MODEL K/L/M/N This part replaces 08322-21067.

08322-01067

$2.13

21

.SWITCH,CLUTCH

57560-05A00

$12.15

22

SCREW This part replaces 02112-03205.

02112-0320B

$3.60

23

SWITCH ASSY, HANDLE LH | LS650FK/FL This part replaces 37400-24B50.

37400-24B80

Unavailable

23

SWITCH ASSY, HANDLE LH | LS650PK/PLMODEL M/N/P; Includes Item(s) 24

37400-24B80

Unavailable

24

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

25

CLAMP This part replaces 09407-20401.

09407-25402

$4.64
