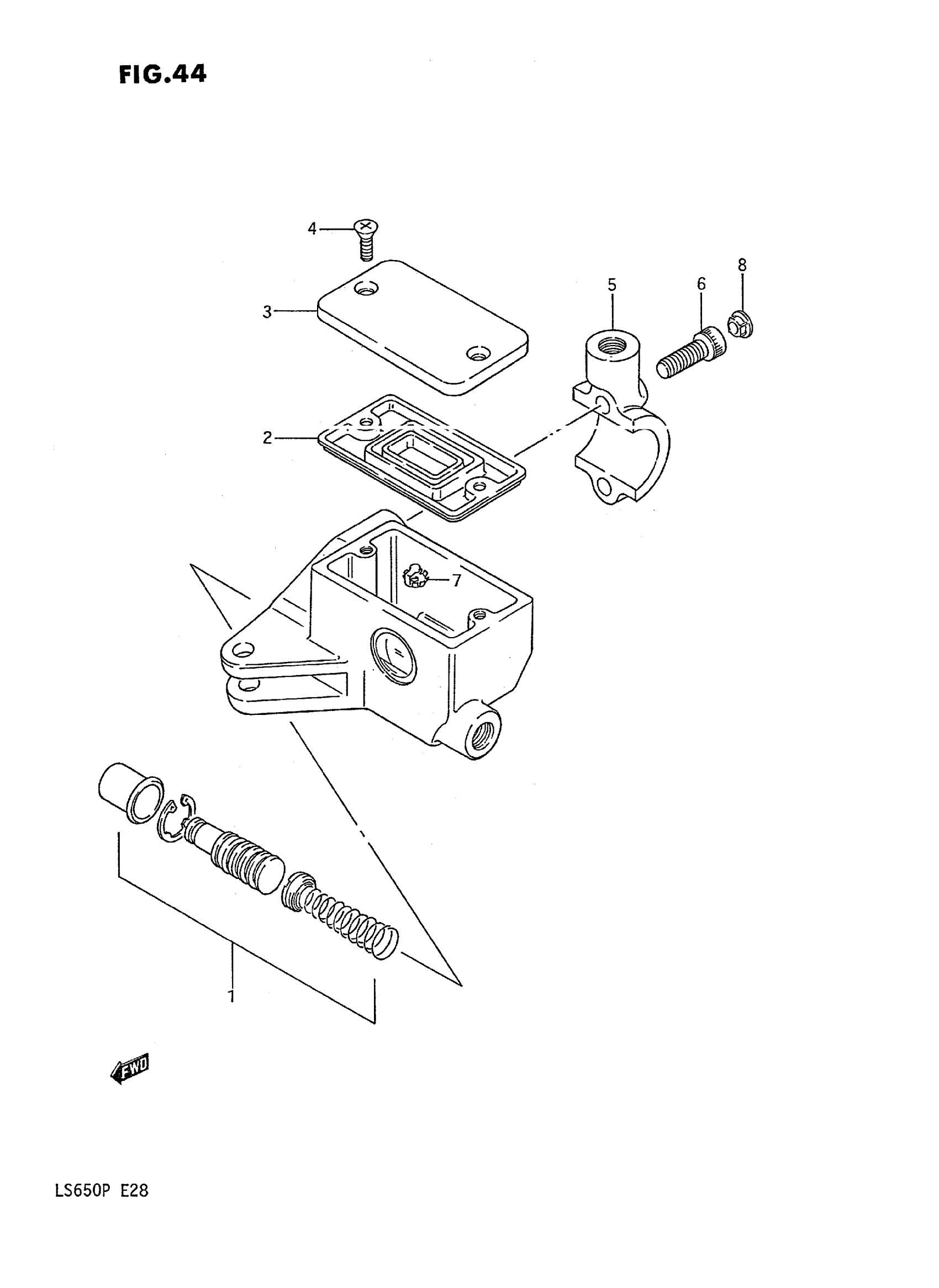

Suzuki LS650F (1995) FRONT MASTER CYLINDER (LS650PG/PJ/PK/PL Diagram

#

Description

Price

NO DESCRIPTION AVAILABLE | LS650PG/PJ This part replaces 59600-24B10.

59600-24X51

Unavailable

CYLINDER ASSY, FRONT MASTER | LS650PK/PLMODEL M/N/PMICRO SWITCH TYPE; Includes Item(s) 1 - 7

59600-24B50

$429.45

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$45.20

2

DIAPHRAGM

59667-49460

$9.78

3

CAP | LS650PG/PJ

59669-38A30

Unavailable

3

CAP | LS650PK/PLMODEL M/N/P

59669-24B00

$61.55

4

SCREW This part replaces 59691-38A00.

02122-04127

$1.97

5

HOLDER

59671-38A00

$37.11

6

.BOLT This part replaces 07110-06208.

07130-06207

$3.04

7

PROTECTOR | LS640PK/PLMODEL M/N/PFOR 59600-24B50

59664-48B00

$11.02

8

CAP

09250-05008

$3.76
